GEAR CHANGE MECHANISM
ZX1100G2 ZZR1100 1998 FG

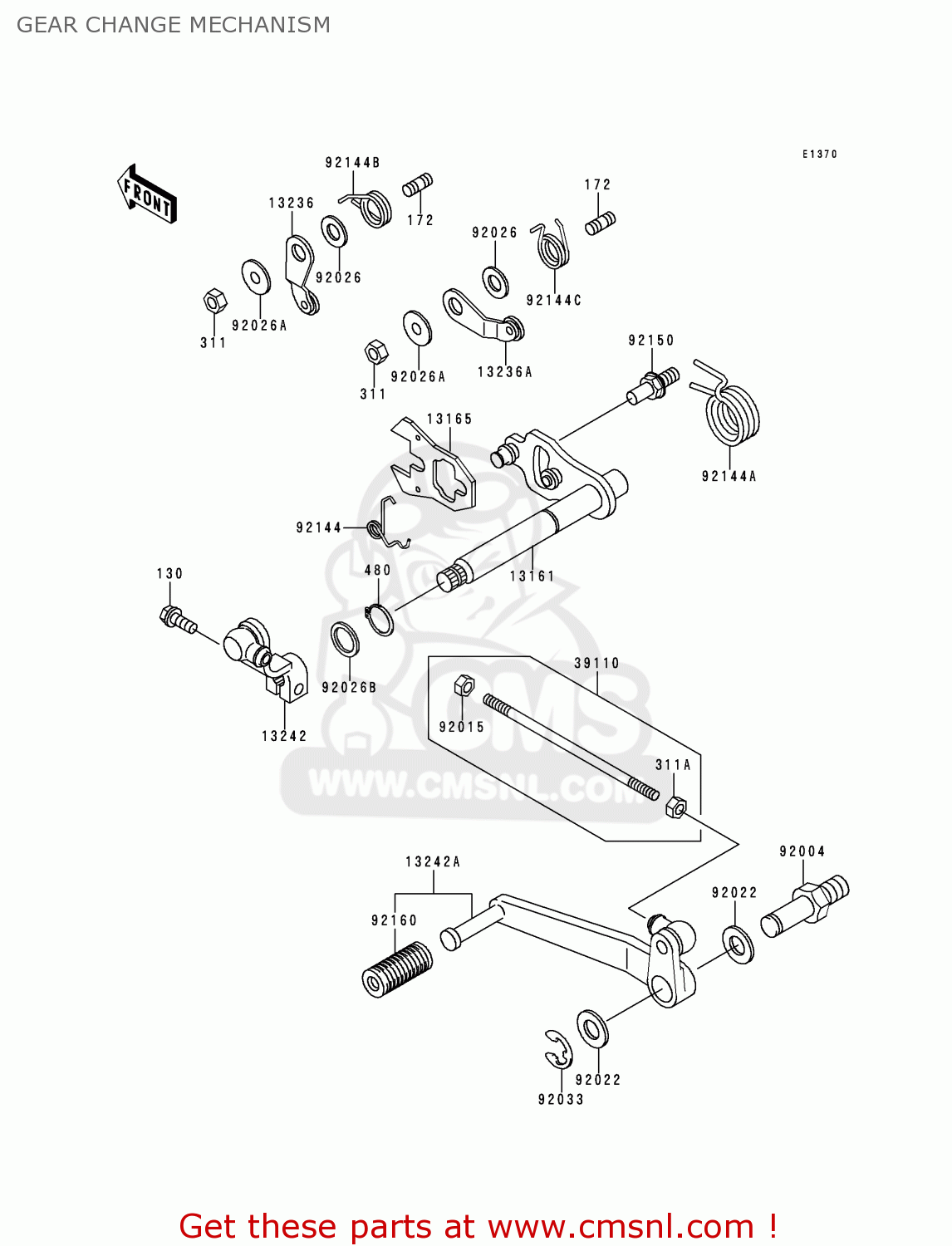

Gear change mechanism diagram ZX1100G2 ZZR1100 1998 FG
GEAR CHANGE MECHANISM ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
172
172G0614
ref: 172
STUD,6X14
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
311A
311J0600
ref: 311A
NUT-HEX
€ 1.00
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
€ 2.50
13161
131611155
ref: 13161
LEVER-COMP-CHANGE SHA
€ 76.50
13165
131651120
ref: 13165
PAWL
€ 9.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
€ 13.00
13236A
132361216
ref: 13236A
LEVER-COMP,GEAR POSIT
€ 9.00
13242
132421242
ref: 13242
LEVER-ASSY-CHANGE,BOS
€ 26.00
13242A
132421283
ref: 13242A
LEVER-ASSY-CHANGE,PED
€ 47.00
39110
391101106
ref: 39110
ROD-ASSY-TIE
€ 8.00
92004
920041164
ref: 92004
STUD,CHANGE PEDAL,PIV
€ 10.00
92015
920151178
ref: 92015
NUT
€ 2.50
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
€ 6.50
92026A
920261217
ref: 92026A
SPACER
€ 3.50
92026B
920261532
ref: 92026B
SPACER
€ 3.00
92033
920331178
ref: 92033
RING-SNAP,TYPE-E,10MM
€ 2.50
92144
921441029
ref: 92144
SPRING
€ 5.00
92144A
921441074
ref: 92144A
SPRING,CHANGE PEDAL R
€ 6.50
92144B
921441856
ref: 92144B
SPRING
€ 6.50
92144C
921441857
ref: 92144C
SPRING,GEAR POSITION
€ 6.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 3.50
