BATTERY CASE
ZX1100G2 ZZR1100 1998 FG

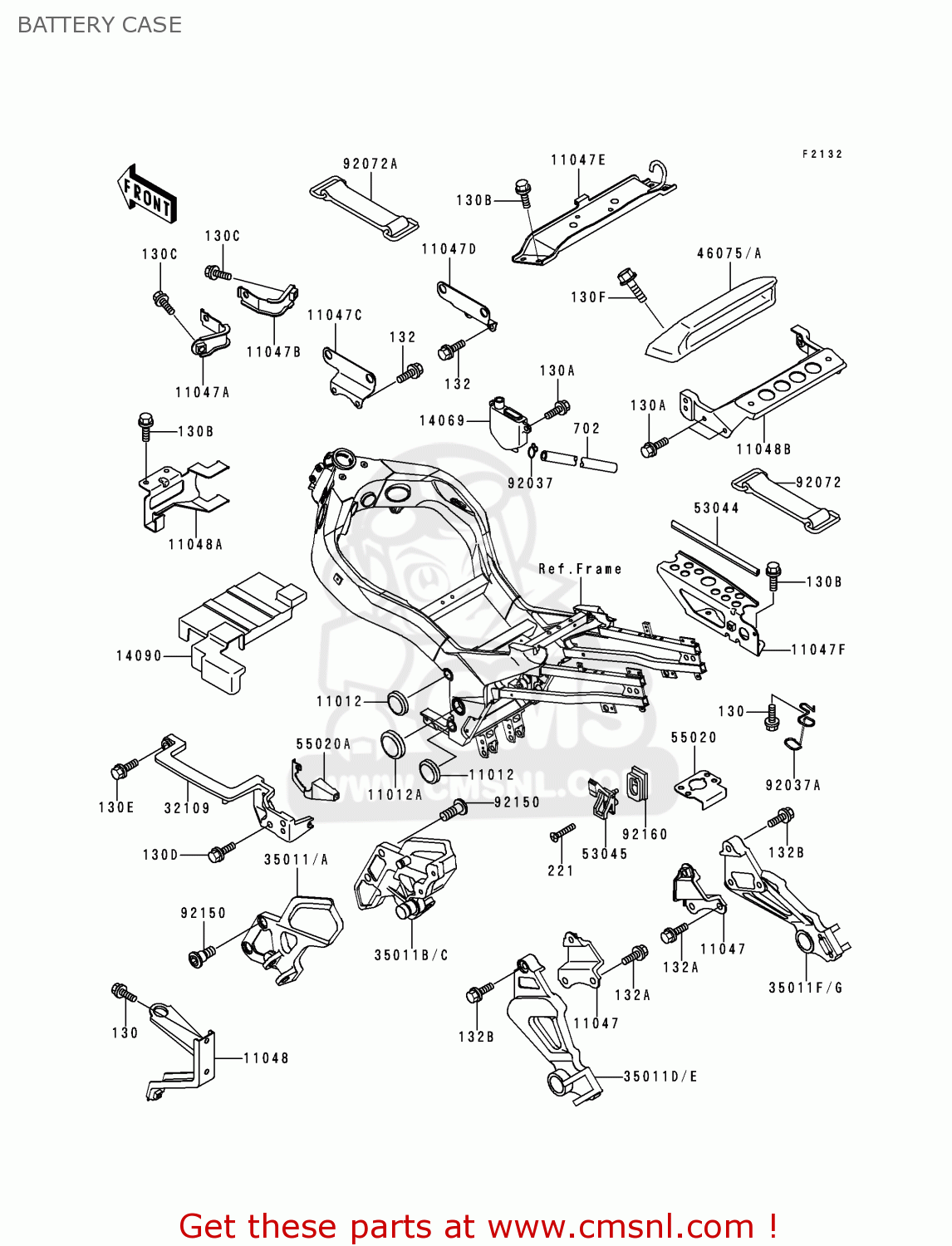

Battery case diagram ZX1100G2 ZZR1100 1998 FG
BATTERY CASE ZX1100G2 ZZR1100 1998 FG
×
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
€ 1.50
130B
130J0616
ref: 130B
BOLT-FLANGED,6X16
€ 1.50
130C
130J0812
ref: 130C
BOLT-FLANGED
€ 0.50
130D
130J0820
ref: 130D
BOLT-FLANGED,8X20
€ 0.50
11012
110121460
ref: 11012
CAP
€ 7.50
11012A
110121657
ref: 11012A
CAP
€ 11.00
11047
110471878
ref: 11047
BRACKET,REAR STAY
€ 14.50
11047A
110471931
ref: 11047A
BRACKET,RADIATOR,UPP,
€ 9.50
11047B
110471932
ref: 11047B
BRACKET,RADIATOR,UPP,
€ 9.50
11047C
110471933
ref: 11047C
BRACKET,IGNITION COIL
€ 8.50
11047D
110471934
ref: 11047D
BRACKET,IGNITION COIL
€ 16.00
11047E
110471961
ref: 11047E
BRACKET,SEAT LOCK
€ 33.00
11047F
110471962
ref: 11047F
BRACKET,HELMET LOCK
€ 19.50
11048
110481169
ref: 11048
BRACKET,OIL COOLER&RA
€ 23.50
11048A
110481180
ref: 11048A
BRACKET,FUEL PUMP
€ 10.00
11048B
110481325
ref: 11048B
BRACKET,TAIL GRIP
€ 39.50
14069
140691054
ref: 14069
BREATHER
€ 16.50
14090
140901305
ref: 14090
COVER,BATTERY
€ 15.00
32109
321091233
ref: 32109
GRIP-FRAME
€ 64.00
35011A
350111635GD
ref: 35011A
STAY,FR,LH,G.GRAY
€ 76.00
35011C
350111636GD
ref: 35011C
STAY,FR,RH,G.GRAY
€ 36.00
35011E
350111640GD
ref: 35011E
STAY,RR,LH,G.GRAY
€ 32.50
35011G
350111641GD
ref: 35011G
STAY,RR,RH,G.GRAY
€ 34.00
46075
460751104H3
ref: 46075
GRIP,TAIL,C.W.RED
€ 116.50
46075A
460751104H8
ref: 46075A
GRIP,TAIL,EBONY
€ 116.50
53044
530441270
ref: 53044
TRIM,L=165
€ 3.00
53045
530451057
ref: 53045
HOOK-ASSY,ROPE
€ 25.00
55020
550201498
ref: 55020
GUARD,SEAT STRIKER
€ 13.00
55020A
550201499
ref: 55020A
GUARD,SEAT LOCK
€ 14.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371875
ref: 92037A
CLAMP,HOSE
€ 6.50
92072
92072071
ref: 92072
BAND,BATTERY
€ 6.50
92072A
920721188
ref: 92072A
BAND
€ 9.50
92150
921501839
ref: 92150
BOLT
€ 1.50
92160
921601042
ref: 92160
DAMPER,ROPE HOOK
€ 3.50
130E
130J0825
ref: 130E
BOLT-FLANGED,8X25,BLA
€ 2.00
130F
130J0835
ref: 130F
BOLT-FLANGED,8X35,BLA
€ 2.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.50
132A
132J0812
ref: 132A
BOLT-FLANGED-SMALL,8X
€ 1.50
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
221
221E0620
ref: 221
SCREW-CSK-CROS,6X20
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
