STEP
Z1100R1 1984 EUROPE UK NR

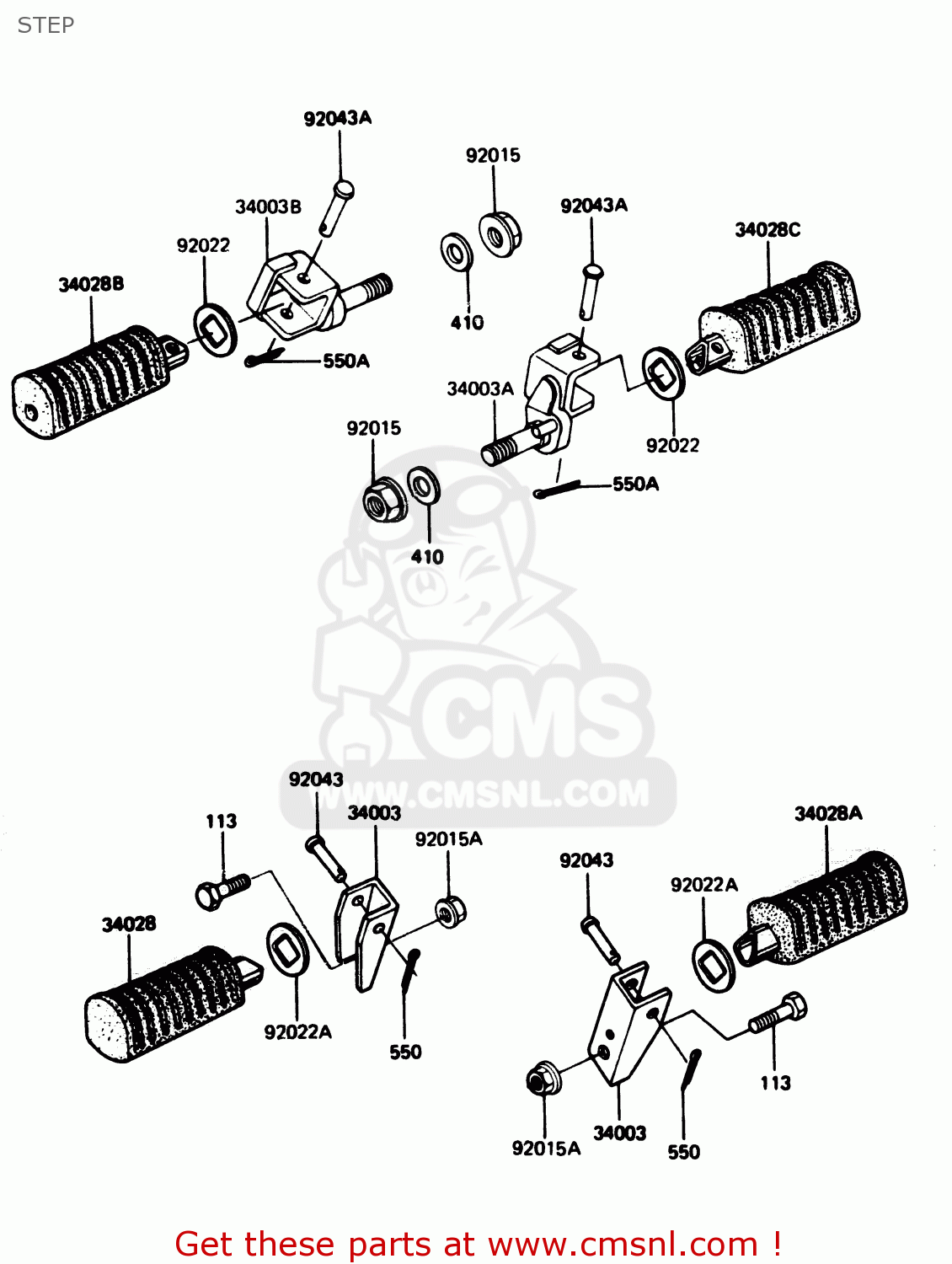

Step diagram Z1100R1 1984 EUROPE UK NR
STEP Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
34003
340031025
ref: 34003
HOLDER-STEP,RR
€ 18.00
34003A
340031086
ref: 34003A
HOLDER-STEP,FR,RH
€ 72.00
34003B
340031114
ref: 34003B
HOLDER-STEP,FR,LH
€ 91.00
34028
340281128
ref: 34028
STEP,LH
€ 26.50
34028A
340281129
ref: 34028A
STEP,RH
€ 26.50
34028B
340281136
ref: 34028B
STEP,FR,LH
€ 26.00
34028C
340281137
ref: 34028C
STEP,FR,RH
€ 27.00
92015
920151156
ref: 92015
NUT,12MM
€ 4.50
92015A
920151180
ref: 92015A
NUT,FLANGED,10MM,BLAC
€ 2.50
92022
920221314
ref: 92022
WASHER,STEP FITTING
€ 3.00
92022A
920221514
ref: 92022A
WASHER,STEP FITTING
€ 3.50
92043
92043079
ref: 92043
PIN-REAR FOOTREST FIT
€ 5.50
92043A
92043115
ref: 92043A
PIN,FOOTREST BAR FIT
€ 6.50
113
113C1040
ref: 113
BOLT-SMALL-FINE,10X40
€ 4.50
410
410F1200
ref: 410
410F1200
550
550D2012
ref: 550
PIN,COTTER,2.0X12
€ 0.50
550A
550D2515
ref: 550A
PIN COTTER,295X15
€ 0.50
