ELECTRICAL EQUIPMENT
Z1100R1 1984 EUROPE UK NR

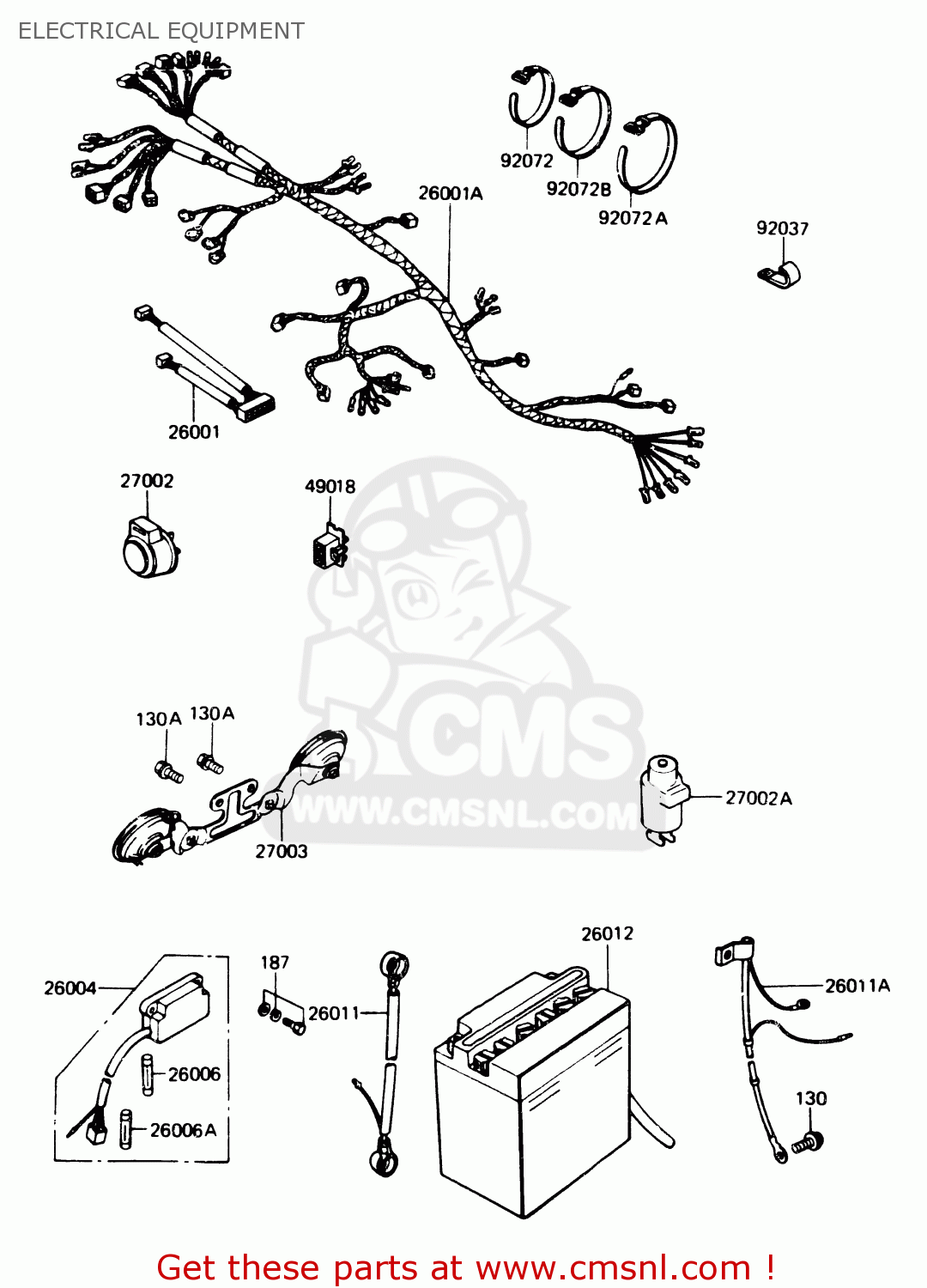

Electrical equipment diagram Z1100R1 1984 EUROPE UK NR
ELECTRICAL EQUIPMENT Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
26001
260011569
ref: 26001
HARNESS,IGNITER
€ 23.00
26001A
260011583
ref: 26001A
HARNESS,MAIN
€ 194.00
26004
260041011
ref: 26004
FUSE-ASSY
€ 72.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
260061005
ref: 26006A
FUSE,30A,L=25M/M
€ 3.00
26011
260111120
ref: 26011
WIRE-LEAD,BATTERY,(+)
€ 28.50
26011A
260111124
ref: 26011A
WIRE-LEAD,BATTERY,(-)
€ 28.50
26012
260121039
ref: 26012
BATTERY,12V18AH,YB18L
€ 115.50
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
270021051
ref: 27002A
RELAY-ASSY
€ 32.00
27003
270031143
ref: 27003
HORN,DOUBLE
€ 160.00
49018
490181051
ref: 49018
DIODE
€ 29.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
130
130B0608
ref: 130
BOLT,FLANGED,6X8
€ 0.50
130A
130C0814
ref: 130A
BOLT-FLANGED
€ 2.50
187
187B0622
ref: 187
BOLT-UPSET-WSP
€ 2.50
