GEAR CHANGE MECHANISM
Z1100R1 1984 EUROPE UK NR

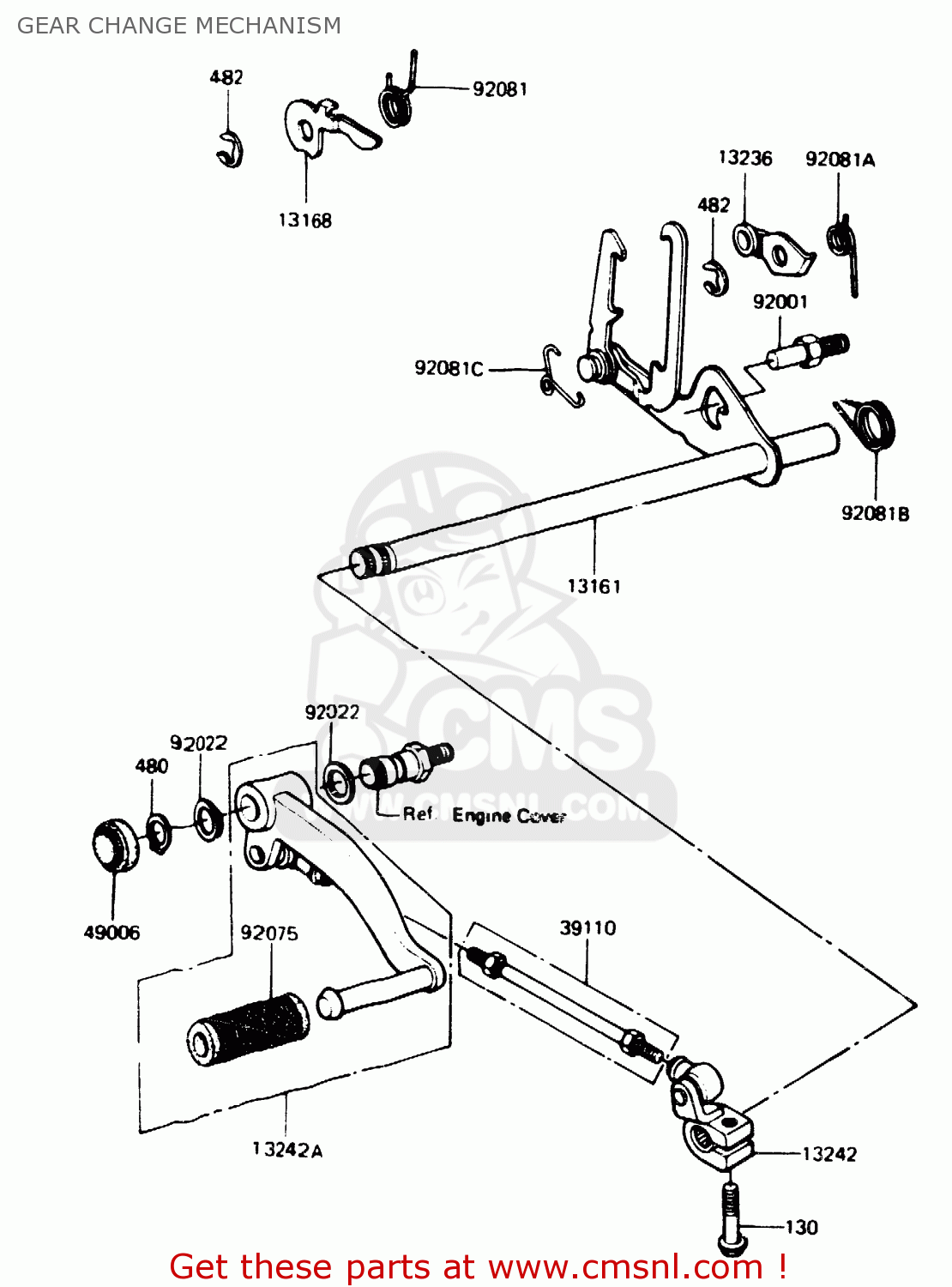

Gear change mechanism diagram Z1100R1 1984 EUROPE UK NR
GEAR CHANGE MECHANISM Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
13161
131611023
ref: 13161
LEVER-COMP-CHANGE SHA
€ 65.00
13168
131681143
ref: 13168
LEVER,GEAR POSITIONIN
€ 6.00
13236
132361029
ref: 13236
LEVER-COMP,NEUTRAL PO
€ 8.00
13242
132421048
ref: 13242
LEVER-ASSY-CHANGE,ROD
€ 32.50
13242A
132421156
ref: 13242A
LEVER-ASSY-CHANGE,PED
€ 24.00
39110
391101008
ref: 39110
ROD-ASSY-TIE,L=90,BLA
€ 7.50
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
€ 6.00
92001
920011401
ref: 92001
BOLT,RETURN SPRING
€ 3.00
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92075
13157004
ref: 92075
RUBBER-CHANGE PEDAL
€ 4.00
92081
920811284
ref: 92081
SPRING,PSTNNG LEVER
€ 3.50
92081A
920811285
ref: 92081A
SPRING,NEUTRAL POSITI
€ 3.50
92081B
920811589
ref: 92081B
SPRING,CHANGE PEDAL R
€ 7.00
92081C
92083018
ref: 92081C
SPRING-KICK PAWL
€ 6.00
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
€ 0.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
€ 0.50
