SEAT
Z1100R1 1984 EUROPE UK NR

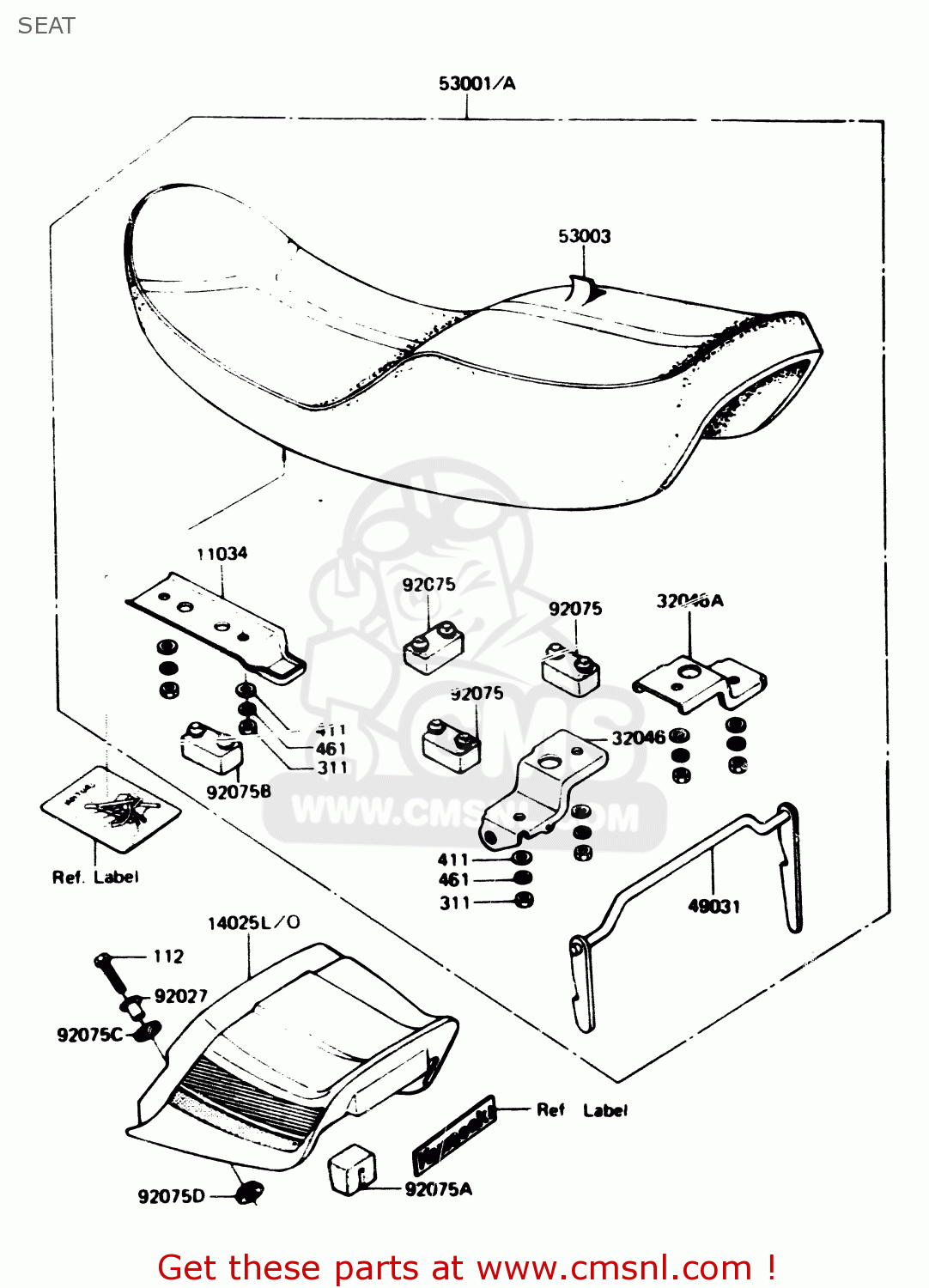

Seat diagram Z1100R1 1984 EUROPE UK NR
SEAT Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11034
110341868
ref: 11034
BRACKET,SEAT,FR
€ 6.00
14025L
1402551047F
ref: 14025L
COVER,SEAT,L.GREEN
€ 260.50
14025O
1402551547W
ref: 14025O
COVER,SEAT,M.S.SILVER
€ 181.50
32046
320461089
ref: 32046
BRACKET-SEAT,LH
€ 9.50
32046A
320461090
ref: 32046A
BRACKET-SEAT,RH
€ 8.50
49031
490311006
ref: 49031
LATCH,SEAT
€ 17.50
53001
530011234
ref: 53001
NR, UK
SEAT-ASSY
€ 722.50
53001A
530011286
ref: 53001A
EU
SEAT-ASSY,W/BAND
€ 400.00
53003
530031040
ref: 53003
LEATHER,SEAT
€ 240.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92075
920751276
ref: 92075
DAMPER,SEAT,RR
€ 6.00
92075A
920751313
ref: 92075A
DAMPER,SEAT COVER
€ 6.00
92075B
92075139
ref: 92075B
DAMPER,SEAT
€ 7.00
92075C
92075174
ref: 92075C
DAMPER,MALE
€ 3.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
€ 2.50
112
112B0620
ref: 112
BOLT-UPSET
€ 1.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
