CARIOURETOR PARTS
Z1100R1 1984 EUROPE UK NR

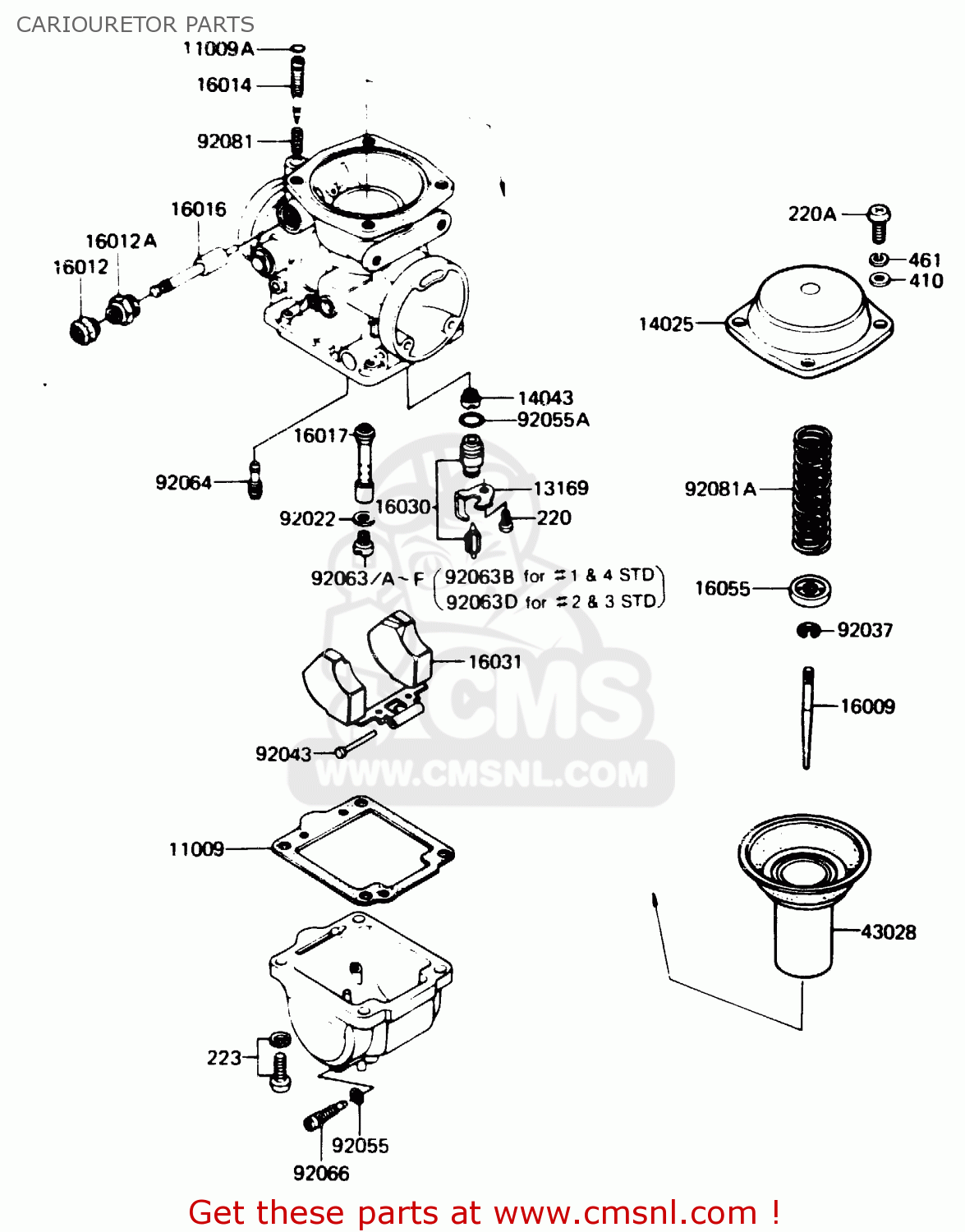

Cariouretor parts diagram Z1100R1 1984 EUROPE UK NR
CARIOURETOR PARTS Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091241
ref: 11009
110091241
11009A
16038022
ref: 11009A
GASKET,O-RING
€ 4.50
13169
131691482
ref: 13169
PLATE,FLOAT VALVE
€ 4.00
14025
140251523
ref: 14025
COVER,MIXING CHAMBER
€ 55.00
14043
140431010
ref: 14043
FILTER,FLOAT VALVE
€ 11.00
16009
160091241
ref: 16009
NEEDLE-JET,5B5-3
€ 22.50
16012
160121010
ref: 16012
CAP-STARTER PLUNGER,R
€ 17.00
16012A
160121011
ref: 16012A
CAP-STARTER PLUNGER
€ 10.50
16014
160141014
ref: 16014
SCREW-PILOT AIR
€ 18.00
16016
160161019
ref: 16016
PLUNGER
€ 34.00
16017
160171264
ref: 16017
JET-NEEDLE,Y-8
€ 21.00
16030
160301016
ref: 16030
VALVE-FLOAT,2.5
€ 43.00
16031
160311013
ref: 16031
FLOAT
€ 46.00
16055
16055010
ref: 16055
PLATE,NEEDLE
€ 7.00
43028
430281034
ref: 43028
DIAPHRAGM,VALVE
€ 144.50
92022
16034001
ref: 92022
WASHER-MAIN JET
€ 2.50
92037
16008014
ref: 92037
CLAMP,E-TYPE
€ 5.50
92043
16032008
ref: 92043
PIN,FLOAT
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92055A
920551105
ref: 92055A
RING-0
€ 3.00
92063
92063055
ref: 92063
(RACING USE ONLY)
MAIN JET,#125R
€ 9.50
92063A
92063056
ref: 92063A
(RACING USE ONLY)
MAIN JET,#127.5R
€ 9.50
92063B
92063057
ref: 92063B
MAIN JET,#130R
€ 9.50
92063C
92063103
ref: 92063C
(RACING USE ONLY)
MAIN JET,#132.5R
€ 8.50
92063D
92063104
ref: 92063D
JET-MAIN,#135R
€ 8.50
92063E
92063105
ref: 92063E
(RACING USE ONLY)
MAIN JET,#137.5R
€ 11.50
92063F
92063116
ref: 92063F
(RACING USE ONLY)
JET-MAIN,#140R
€ 8.50
92064
920641037
ref: 92064
JET-PILOT,#37.5
€ 13.50
92066
920661064
ref: 92066
SCREW,DRAIN
€ 8.50
92081
16022016
ref: 92081
SPRING, PILOT SCREW
€ 6.00
92081A
920811363
ref: 92081A
SPRING,DPHRGM VALVE
€ 16.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220C0516
ref: 220A
SCREW-PAN-CROS
€ 0.50
223
223C0516
ref: 223
SCREW-PAN-WS-CROS
€ 2.00
410
410F0500
ref: 410
WASHER-PLAIN-SMALL,5M
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
