HEAD LAMP
Z1100R1 1984 EUROPE UK NR

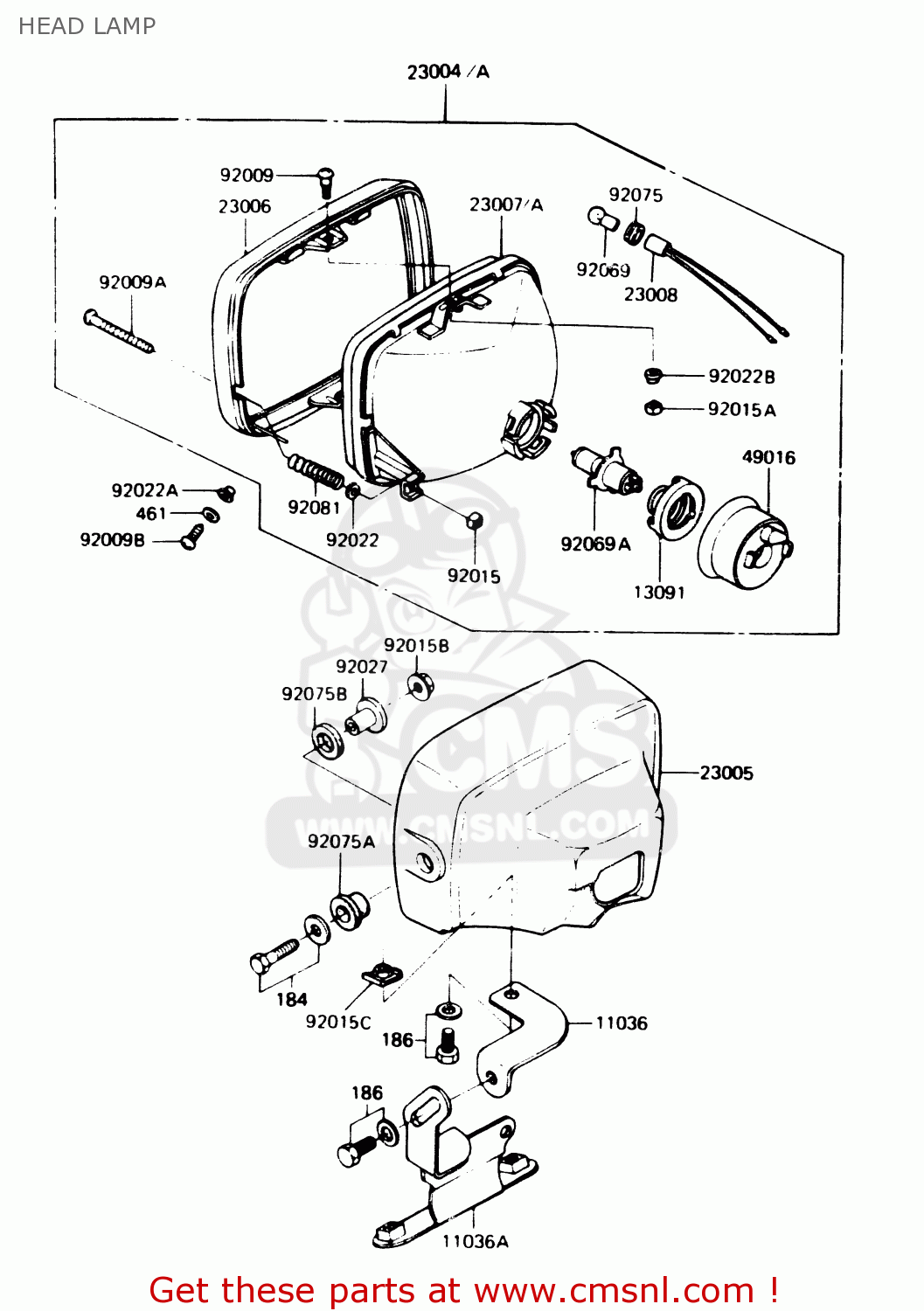

Head lamp diagram Z1100R1 1984 EUROPE UK NR
HEAD LAMP Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11036
110361354
ref: 11036
BRACKET-A,HEAD LAMP,B
€ 6.00
11036A
110361355
ref: 11036A
BRACKET-A,HEAD LAMP,B
€ 35.00
13091
130911036
ref: 13091
HOLDER,HEAD LAMP SOCK
€ 12.50
23004
230041117
ref: 23004
EU, NR
LAMP-HEAD
€ 451.00
23004A
230041119
ref: 23004A
UK
LAMP-HEAD
€ 638.00
23005
23005102221
ref: 23005
BODY-COMP-HEAD LAMP,F
€ 104.00
23006
230061024
ref: 23006
RIM-LAMP,BLACK
€ 65.50
23007
230071042
ref: 23007
EU, NR
LENS-COMP,HEAD LAMP
€ 180.00
23007A
230071043
ref: 23007A
UK
LENS-COMP,HEAD LAMP
€ 197.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161023
ref: 49016
COVER-SEAL,HEAD LAMP
€ 11.50
92009
23019023
ref: 92009
SCREW-PAN HEAD,5X12
€ 3.50
92009A
920091047
ref: 92009A
SCREW,HEAD LAMP LENS
€ 3.00
92009B
92011024
ref: 92009B
SCREW-PAN HEAD,5MM
€ 2.00
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
23020020
ref: 92015A
NUT,5MM
€ 3.00
92015B
920151014
ref: 92015B
NUT,8MM
€ 0.50
92015C
920151050
ref: 92015C
NUT,HEAD LAMP BODY
€ 6.00
92022
23021004
ref: 92022
WASHER,4.1X8X0.8
€ 2.00
92022A
23021010
ref: 92022A
WASHER
€ 2.50
92022B
23021012
ref: 92022B
WASHER
€ 3.00
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92069
ref: 92069
(LOCAL PROCUREMENT I
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92075A
920751109
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 4.00
92075B
920751110
ref: 92075B
DAMPER,HEAD LAMP FITT
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
184
184C0835
ref: 184
BOLT-UPSET-WP-SMALL
€ 2.50
186
186B0614
ref: 186
BOLT-UPSET-WP
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
