IGNITION SWITCH, LOCK
Z1100R1 1984 EUROPE UK NR

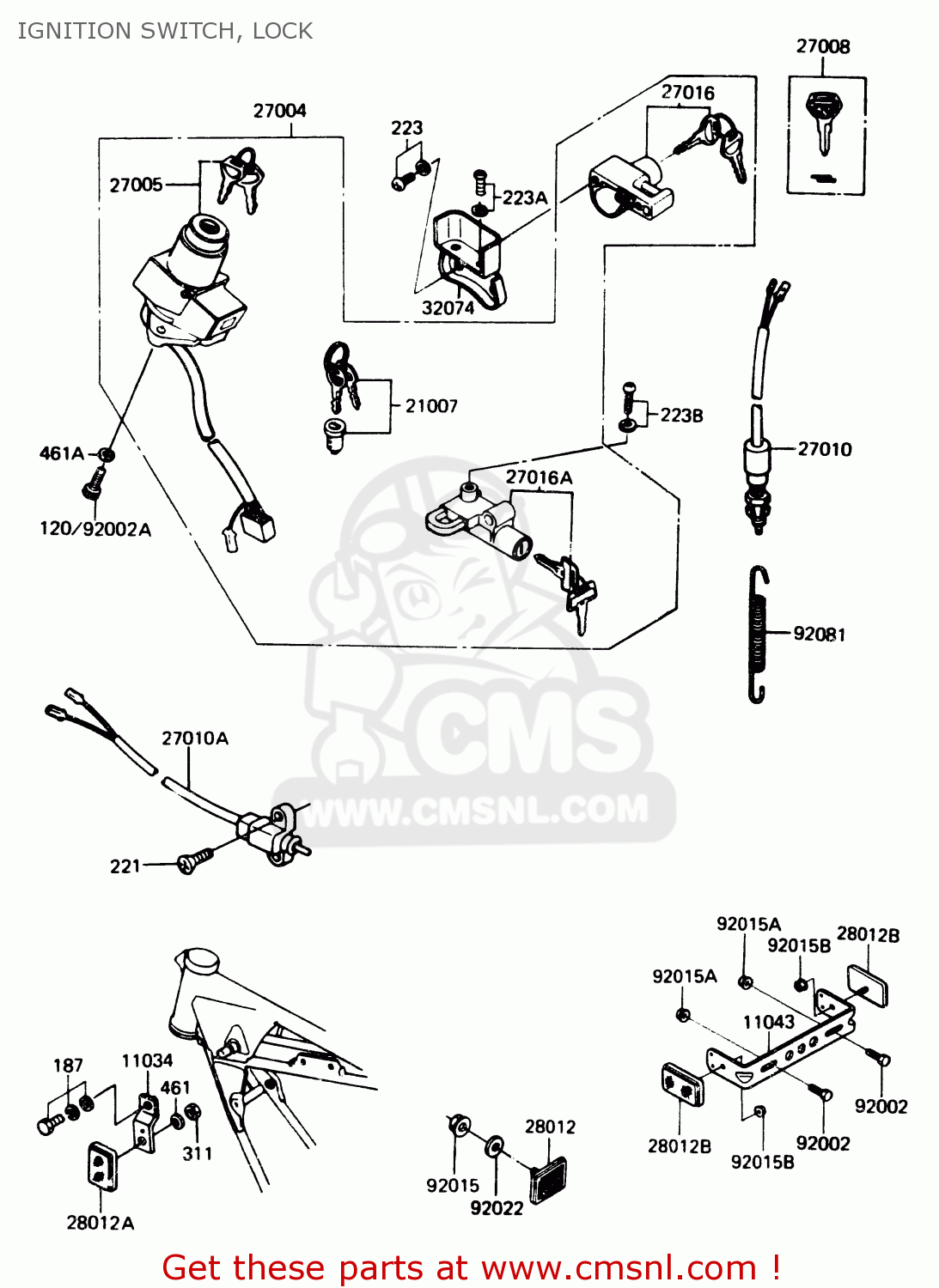

Ignition switch, lock diagram Z1100R1 1984 EUROPE UK NR
IGNITION SWITCH, LOCK Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11034
110341929
ref: 11034
EU
BRACKET,REFLECTOR,FR
€ 7.00
11043
110431619
ref: 11043
EU (OPTION)
BRACKET,REFLECTOR,RR
€ 9.00
21007
210075005
ref: 21007
ROTOR,FUEL TANK
€ 71.00
27004
270045222
ref: 27004
SWITCH-ASSY
€ 267.00
27005
270055030
ref: 27005
SWITCH-ASSY-IGNITION
€ 235.50
27008
270081103
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 13.50
27010
270101019
ref: 27010
SWITCH,REAR BRAKE
€ 23.00
27010A
270101065
ref: 27010A
SWITCH,SIDE STAND
€ 53.00
27016
270165038
ref: 27016
LOCK-ASSY,HELMET
€ 67.50
27016A
270165049
ref: 27016A
LOCK-ASSY,SEAT
€ 63.00
28012
280121002
ref: 28012
REFLECTOR,REFLEX
€ 12.50
28012A
280121003
ref: 28012A
EU
REFLECTOR,REFLEX
€ 15.00
28012B
280121003
ref: 28012B
EU (OPTION)
REFLECTOR,REFLEX
€ 15.00
32074
320741024
ref: 32074
BRACKET-LOCK,HELMET L
€ 7.50
92002
920021132
ref: 92002
EU (OPTION)
BOLT,6X12
€ 2.50
92002A
920021333
ref: 92002A
NR
BOLT
€ 1.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151193
ref: 92015A
EU (OPTION)
NUT,FLANGED,6MM
€ 0.50
92015B
920151259
ref: 92015B
EU (OPTION)
NUT,FLANGED,5MM
€ 2.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92081
920811366
ref: 92081
SPRING,BRAKE SWITCH
€ 4.50
120
120Q0616
ref: 120
EU, UK
BOLT,SOCKET,6X16
€ 4.50
187
187C0614
ref: 187
EU (OPTION)
BOLT-UPSET-WSP
€ 2.50
221
221C0520
ref: 221
SCREW-CSK-CROS
€ 2.50
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
223A
223B0612
ref: 223A
SCREW-PAN-WS-CROS
€ 0.50
223B
223C0610
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
311
311B0500
ref: 311
EU
NUT-HEX
€ 0.50
461
461F0500
ref: 461
EU
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
