FRAME

Z1100R1 1984 EUROPE UK NR

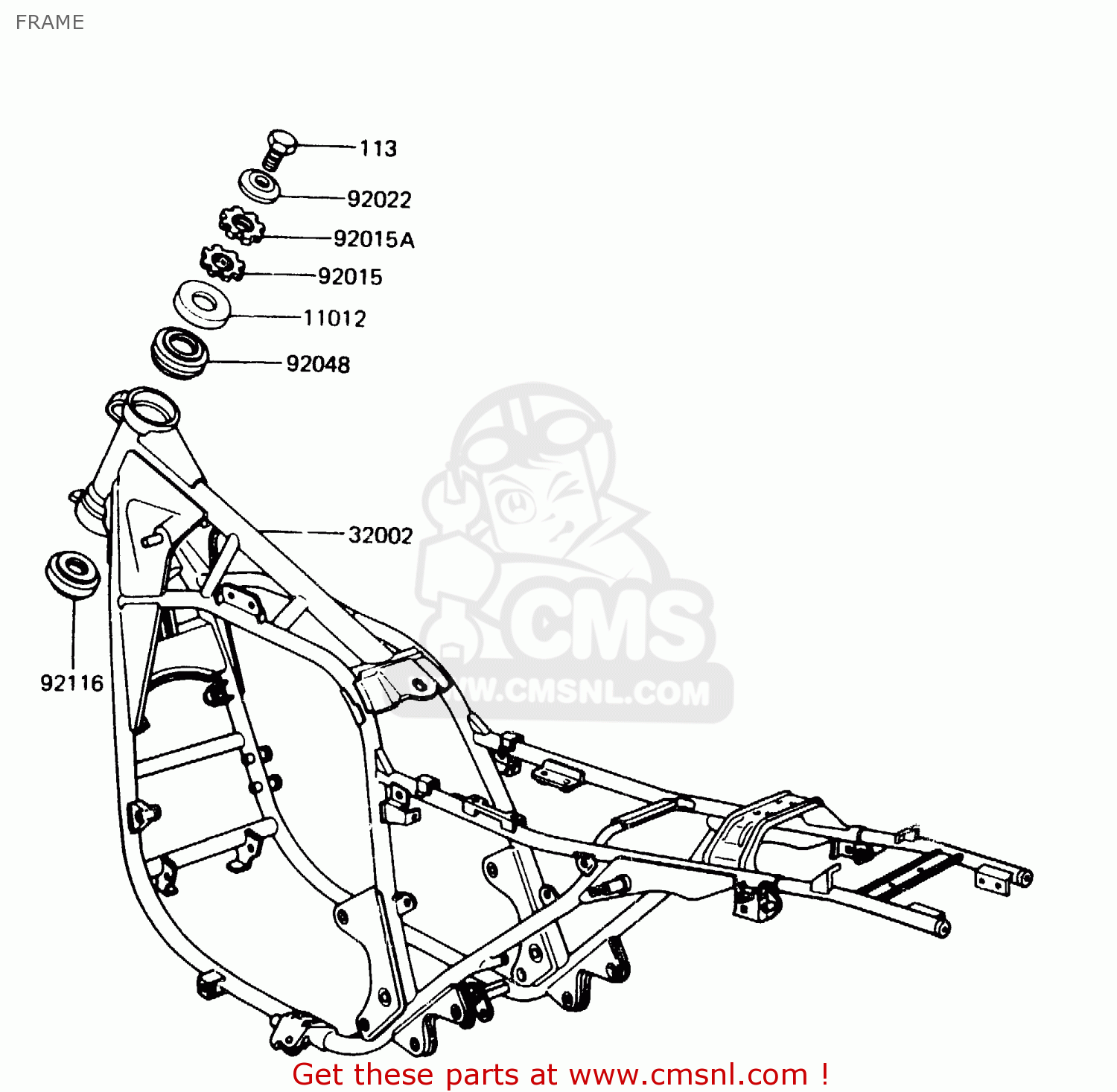

Frame diagram Z1100R1 1984 EUROPE UK NR

FRAME Z1100R1 1984 EUROPE UK NR

FRAME Z1100R1 1984 EUROPE UK NR

prices are in EUR

ref

part #

description

quantity

11012

46098017
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021666
ref: 32002

FRAME-COMP

€ 1,316.50

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92022

920221229
ref: 92022

WASHER,14.5X36X4.5

€ 8.00

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50
