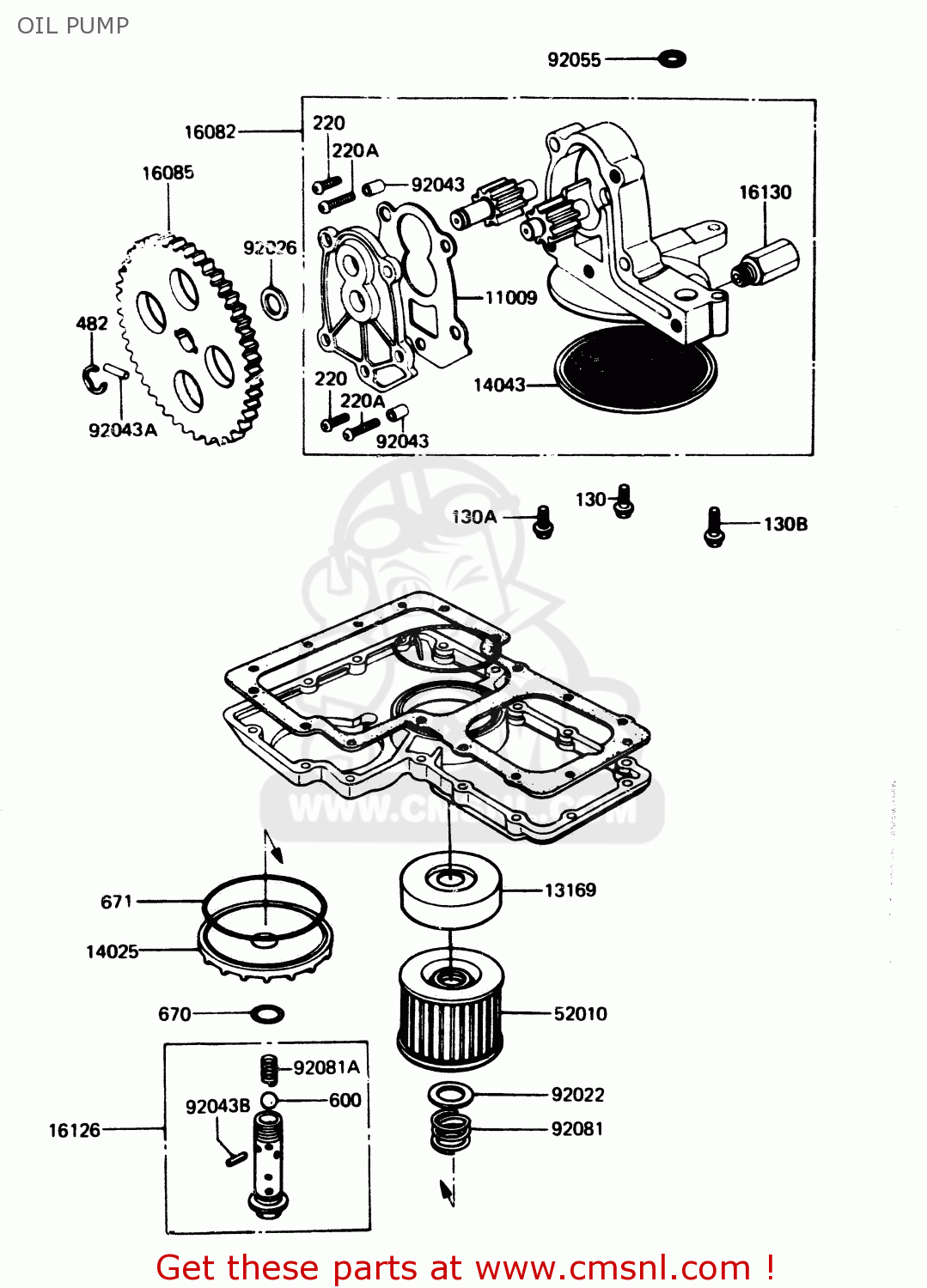

OIL PUMP

ref

part #

description

quantity

11009

110091029
ref: 11009

GASKET,OIL PUMP (NAS)

€ 6.00

13169

131691313
ref: 13169

PLATE,OIL FILTER

€ 7.00

14025

16101004
ref: 14025

COVER,OIL FILTER

€ 31.00

14043

16111004
ref: 14043

FILTER,OIL PUMP

€ 23.50

16082

160821031
ref: 16082

PUMP-ASSY-OIL

€ 220.00

16085

160851038
ref: 16085

GEAR,OIL PUMP,49T

€ 85.50

16126

161261108
ref: 16126

VALVE,OIL FILTER

€ 29.00

16130

161301001
ref: 16130

VALVE-ASSY-RELIEF

€ 28.50

52010

16099003
ref: 52010

FILTER,OIL

€ 6.50

92022

920221012
ref: 92022

WASHER,20.5X30X1

€ 3.00

92026

92026080
ref: 92026

WASHER-LOCK,16MM

€ 3.00

92043

92042038
ref: 92043

PIN DOWEL

€ 1.00

92043A

92042042
ref: 92043A

PIN,DOWEL,4X14.8

€ 2.50

92043B

92043111
ref: 92043B

SPRING PIN

€ 4.00

92055

92055048
ref: 92055

RING-O,OD=18

€ 3.00

92081

920811018
ref: 92081

SPRING,OIL FILTER

€ 3.00

92081A

92081109
ref: 92081A

SPRING

€ 7.50

130

130G0625
ref: 130

BOLT,FLANGED,6X25

€ 0.50

130A

130G0635
ref: 130A

BOLT, FLANGED, 6X35

€ 0.50

130B

130G0645
ref: 130B

BOLT,FLANGED,6X45

€ 0.50

220

220B0618
ref: 220

SCREW-PAN HEAD,6X18

€ 2.50

220A

220B0628
ref: 220A

SCREW-PAN HEAD,6X28

€ 2.50

482

482K7000
ref: 482

CIRCLIP-TYPE-E,7MM

€ 2.50

600

600A1200
ref: 600

BALL-STEEL,3/8

€ 0.50

670

670B2016
ref: 670

O RING,16MM

€ 1.00

671

671B2590
ref: 671

O RING,90MM

€ 6.50

all assemblies
