FRONT FORK
Z1100R1 1984 EUROPE UK NR

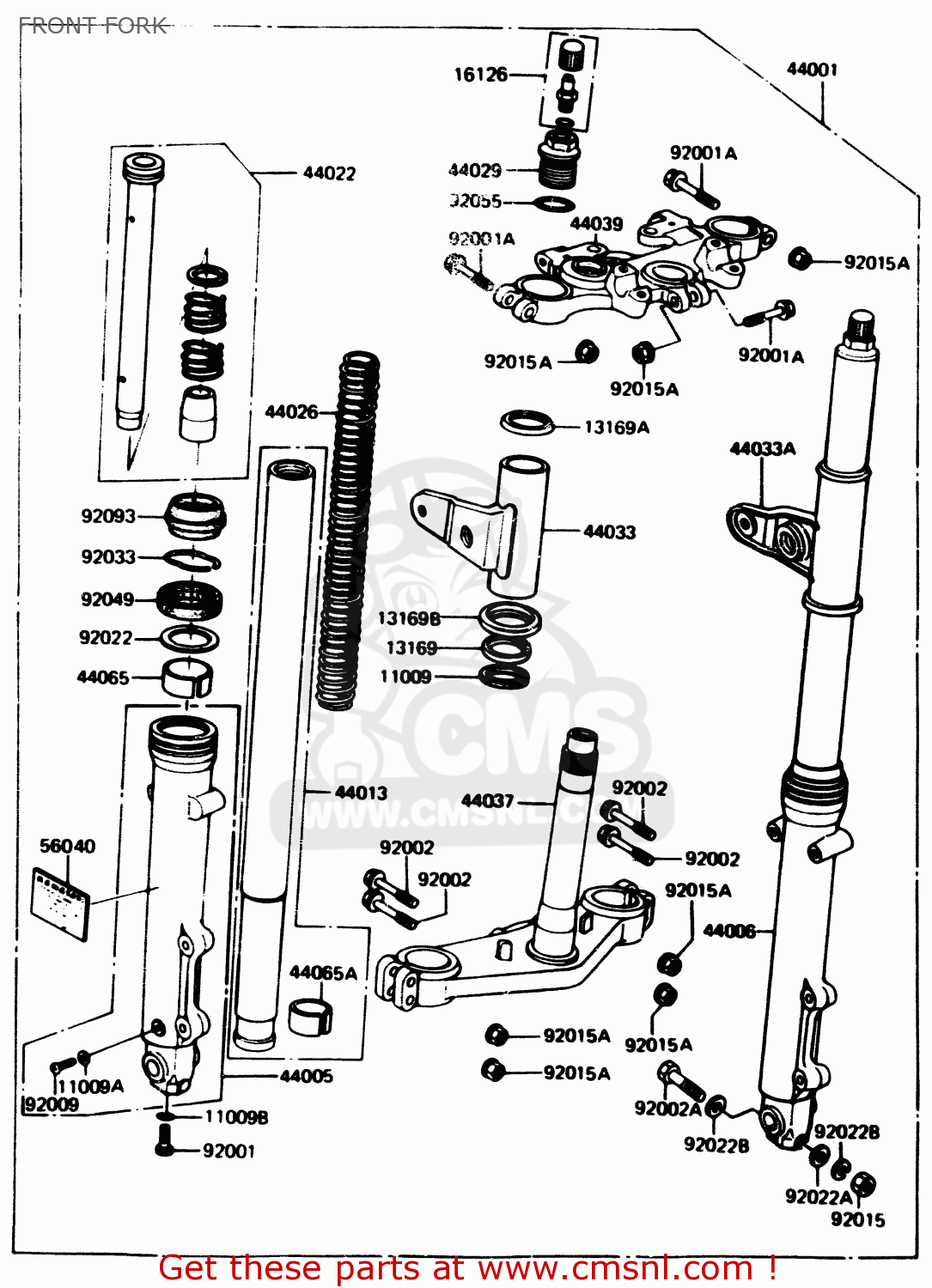

Front fork diagram Z1100R1 1984 EUROPE UK NR
FRONT FORK Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11009
110091015
ref: 11009
GASKET,FORK COVER (NAS)
€ 7.00
11009A
44045002
ref: 11009A
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
11009B
44045057
ref: 11009B
GASKET (NAS)
€ 3.00
13169
131691020
ref: 13169
PLATE,FORK COVER GUID
€ 20.50
13169A
131691498
ref: 13169A
PLATE,FORK COVER,UPP
€ 3.50
13169B
131691499
ref: 13169B
PLATE,FORK COVER,LWR
€ 4.50
16126
161261052
ref: 16126
VALVE,AIR
€ 22.00
44001
440011516
ref: 44001
FORK-FRONT
€ 1,307.00
44005
440051204
ref: 44005
PIPE-LEFT FORK OUTER
€ 317.00
44006
440061204
ref: 44006
PIPE-RIGHT FORK OUTER
€ 246.00
44013
440131124
ref: 44013
PIPE-FORK INNER
€ 226.00
44022
440221055
ref: 44022
CYLINDER FORK
€ 76.50
44026
440261194
ref: 44026
SPRING-FRONT FORK
€ 43.50
44029
440291044
ref: 44029
SEAT-FORK SPRING,LH
€ 33.00
44033
440331104
ref: 44033
COVER-FORK,LH,F.BLACK
€ 78.50
44033A
440331105
ref: 44033A
COVER-FORK,RH,F.BLACK
€ 78.50
44037
440371072
ref: 44037
HOLDER-FORK UNDER
€ 356.00
44039
440391070
ref: 44039
HOLDER-FORK UPPER
€ 167.00
44065
440651012
ref: 44065
BUSHING,FORK OUT PIPE
€ 17.00
44065A
440651057
ref: 44065A
BUSHING,FRON.PIPE
€ 31.50
56040
560401030
ref: 56040
LABEL-WARNING,FRONT F
€ 2.50
92001
44041040
ref: 92001
BOLT-FORK CYLINDER
€ 4.50
92001A
920011358
ref: 92001A
BOLT,FLANGED,8X57
€ 4.50
92002
920021160
ref: 92002
BOLT,8X55
€ 6.00
92002A
920021163
ref: 92002A
BOLT,8X60
€ 5.50
92009
920091324
ref: 92009
SCREW,4X8
€ 2.50
92015
920151400
ref: 92015
NUT,8MM
€ 3.00
92015A
920151408
ref: 92015A
NUT,FLANGED,8MM
€ 1.00
92022
920221262
ref: 92022
WASHER,FORK OUTER PIP
€ 5.50
92022A
920221552
ref: 92022A
WASHER,SPRING,8MM
€ 2.50
92022B
920221554
ref: 92022B
WASHER,PLAIN,8MM
€ 3.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92049
920491178
ref: 92049
SEAL-OIL,FORK
€ 18.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92093
920931162
ref: 92093
SEAL,FORK
€ 18.00
