CYLINDER HEAD
Z1100R1 1984 EUROPE UK NR

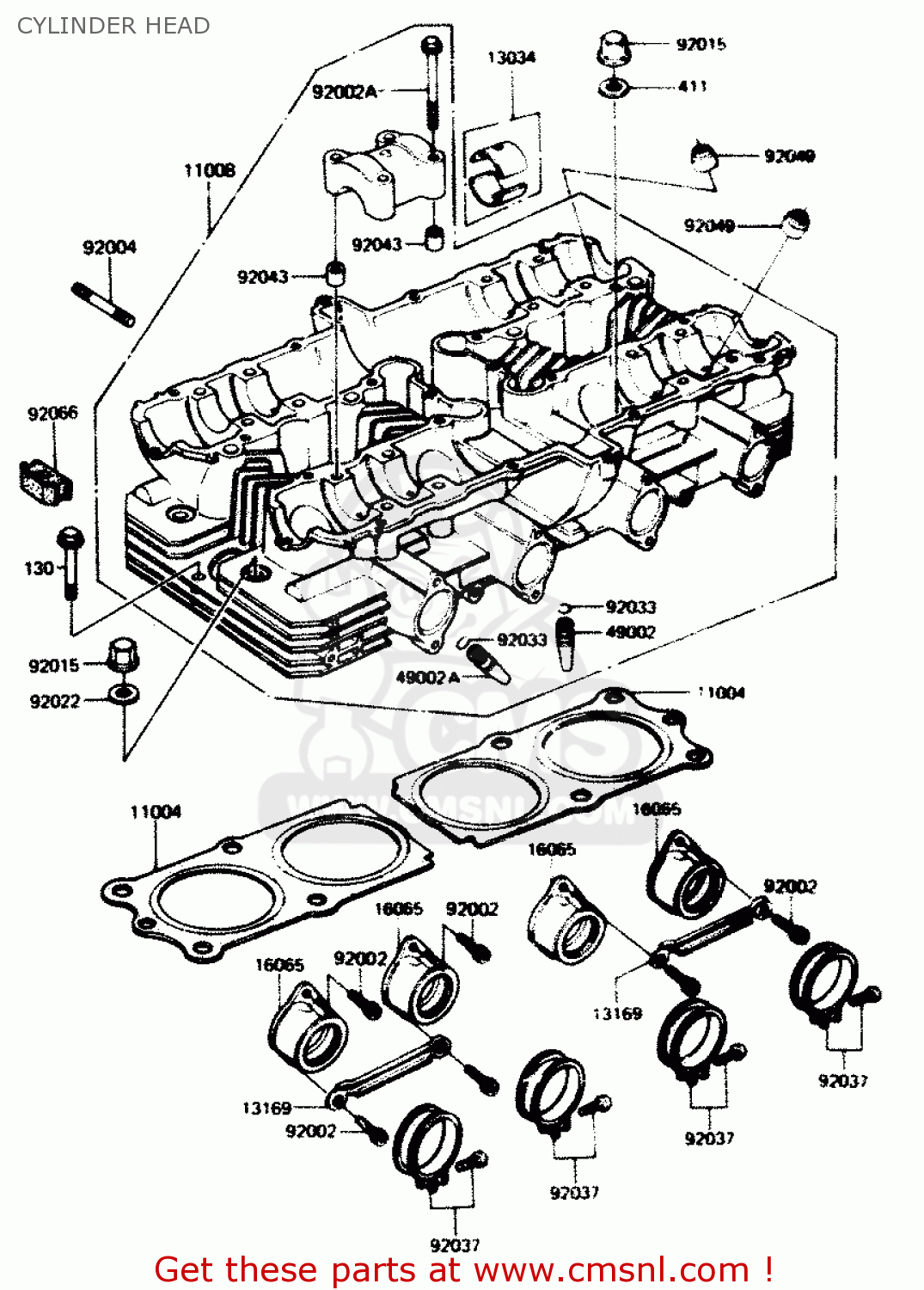

Cylinder head diagram Z1100R1 1984 EUROPE UK NR
CYLINDER HEAD Z1100R1 1984 EUROPE UK NR
×
prices are in EUR
ref
part #
description
quantity
11004
110041119
ref: 11004
GASKET-HEAD (NAS)
€ 65.50
11008
110081073
ref: 11008
HEAD-COMP-CYLINDER,BL
€ 1,367.00
13034
13034030
ref: 13034
BUSHING,CAMSHAFT
€ 15.00
13169
131691793
ref: 13169
PLATE,TUBE GUIDE
€ 4.50
16065
160651066
ref: 16065
HOLDER-CARBURETOR
€ 47.50
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
€ 16.00
92002
920021143
ref: 92002
BOLT,6X16
€ 2.50
92002A
920021300
ref: 92002A
BOLT,6X45
€ 4.50
92004
920041126
ref: 92004
STUD
€ 7.00
92015
920151181
ref: 92015
NUT,FLANGED CAP,10MM,
€ 9.00
92022
920221005
ref: 92022
WASHER,10.5X22X1.6
€ 3.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
€ 7.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
92049016
ref: 92049
OIL SEAL,RV37129.5
€ 13.50
92066
920661104
ref: 92066
PLUG,CYLINDER HEAD CO
€ 23.50
130
130S0645
ref: 130
BOLT-FLANGED,6X45,BLA
€ 2.00
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
