TURN SIGNALS ('77-'78 B1/B2)
KZ1000B4 LTD 1980 USA CANADA

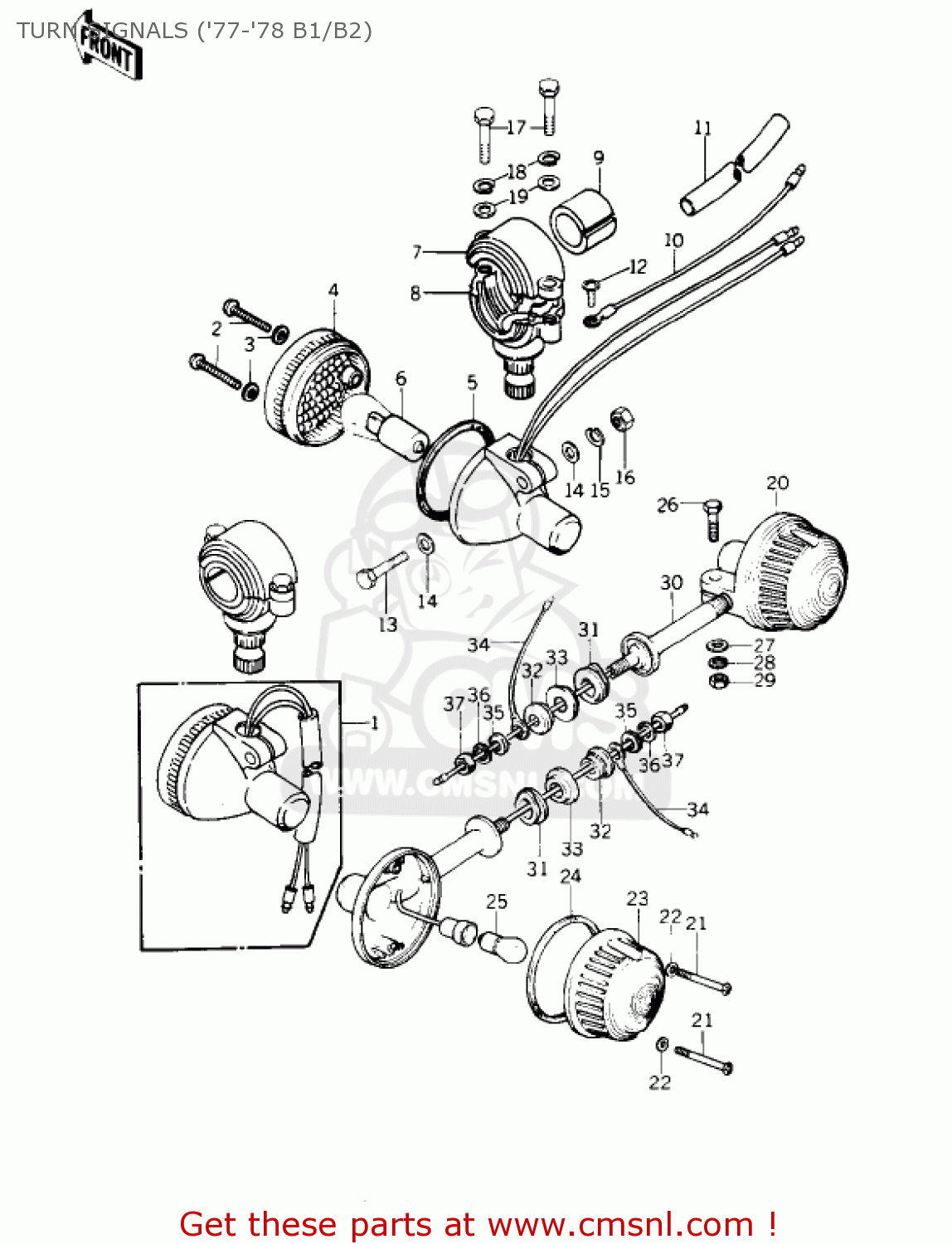

Turn signals ('77-'78 b1/b2) diagram KZ1000B4 LTD 1980 USA CANADA
TURN SIGNALS ('77-'78 B1/B2) KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
230401004
ref: 1
LAMP-SIGNAL
€ 64.00
2
220E0420A
ref: 2
SCREW-PAN HEAD,4X20
€ 2.50
3
23058002
ref: 3
WASHER,PLAIN,4MM
€ 2.00
4
230481001
ref: 4
LENS-SIGNAL LAMP,045-
€ 10.50
5
23050003
ref: 5
GASKET,SIGNAL LAMP (NAS)
€ 3.50
6
92069060
ref: 6
BULB.12V 23/8W
€ 5.00
7
230511013
ref: 7
KZ1000-B1
BRACKET-SIGNAL LAMP,F
€ 11.50
7
230511013
ref: 7
KZ1000-B2
BRACKET-SIGNAL LAMP,F
€ 11.50
8
230511004
ref: 8
BRACKET-SIGNAL LAMP,F
€ 23.00
9
23066003
ref: 9
DAMPER
€ 3.50
10
26011066
ref: 10
KZ1000-B1
TURN SIGNAL WIRE LEAD
€ 8.00
10
26011061
ref: 10
KZ1000-B2
WIRE-LEAD,SIGNAL LAMP
€ 2.50
11
26009004
ref: 11
COVER-WIRING HARNESS
€ 1.00
12
220B0305A
ref: 12
SCREW-PAN HEAD,3X5
€ 1.00
13
112G0630
ref: 13
BOLT-UPSET
€ 1.00
14
411B0600
ref: 14
WASHER-PLAIN,6MM
€ 0.50
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
311B0600
ref: 16
NUT,6MM
€ 0.50
17
110N0516
ref: 17
BOLT,5X16
€ 2.00
18
461F0500
ref: 18
WASHER-SPRING,5MM
€ 0.50
19
410D0500
ref: 19
WASHER-PLAIN,5MM
€ 1.50
20
23040034
ref: 20
KZ1000-B1
LAMP-SIGNAL
€ 100.00
20
23040029
ref: 20
KZ1000-B2
LAMP-SIGNAL
€ 90.00
21
220E0435A
ref: 21
SCREW-PAN HEAD,4X35
€ 4.50
22
23058002
ref: 22
WASHER,PLAIN,4MM
€ 2.00
23
230481024
ref: 23
LENS-SIGNAL LAMP,6.14
€ 12.50
24
23050002
ref: 24
GASKET,TURN SIGNAL LA (NAS)
€ 3.00
25
92069055
ref: 25
BULB 12V 32CP
€ 4.50
26
112G0630
ref: 26
BOLT-UPSET
€ 1.00
27
411B0600
ref: 27
WASHER-PLAIN,6MM
€ 0.50
28
461F0600
ref: 28
WASHER-SPRING,6MM
€ 0.50
29
311B0600
ref: 29
NUT,6MM
€ 0.50
30
23078001
ref: 30
KZ1000-B1
BRACKET-SIGNAL LAMP
€ 65.50
30
230511006
ref: 30
KZ1000-B2
BRACKET,TURN SIGNAL
€ 34.00
31
92075128
ref: 31
DAMPER,LAMP
€ 3.50
32
92027147
ref: 32
COLLAR
€ 9.00
33
92075158
ref: 33
DAMPER
€ 3.50
34
26011063
ref: 34
WIRE-LEAD,L=185
€ 5.00
35
92022239
ref: 35
WASHER-PLAIN
€ 2.50
36
461F1000
ref: 36
WASHER-SPRING,10MM
€ 0.50
37
315B1000
ref: 37
NUT,10MM
€ 0.50
