REAR MASTER CYLINDER/BRAKE PEDAL
KZ1000B4 LTD 1980 USA CANADA

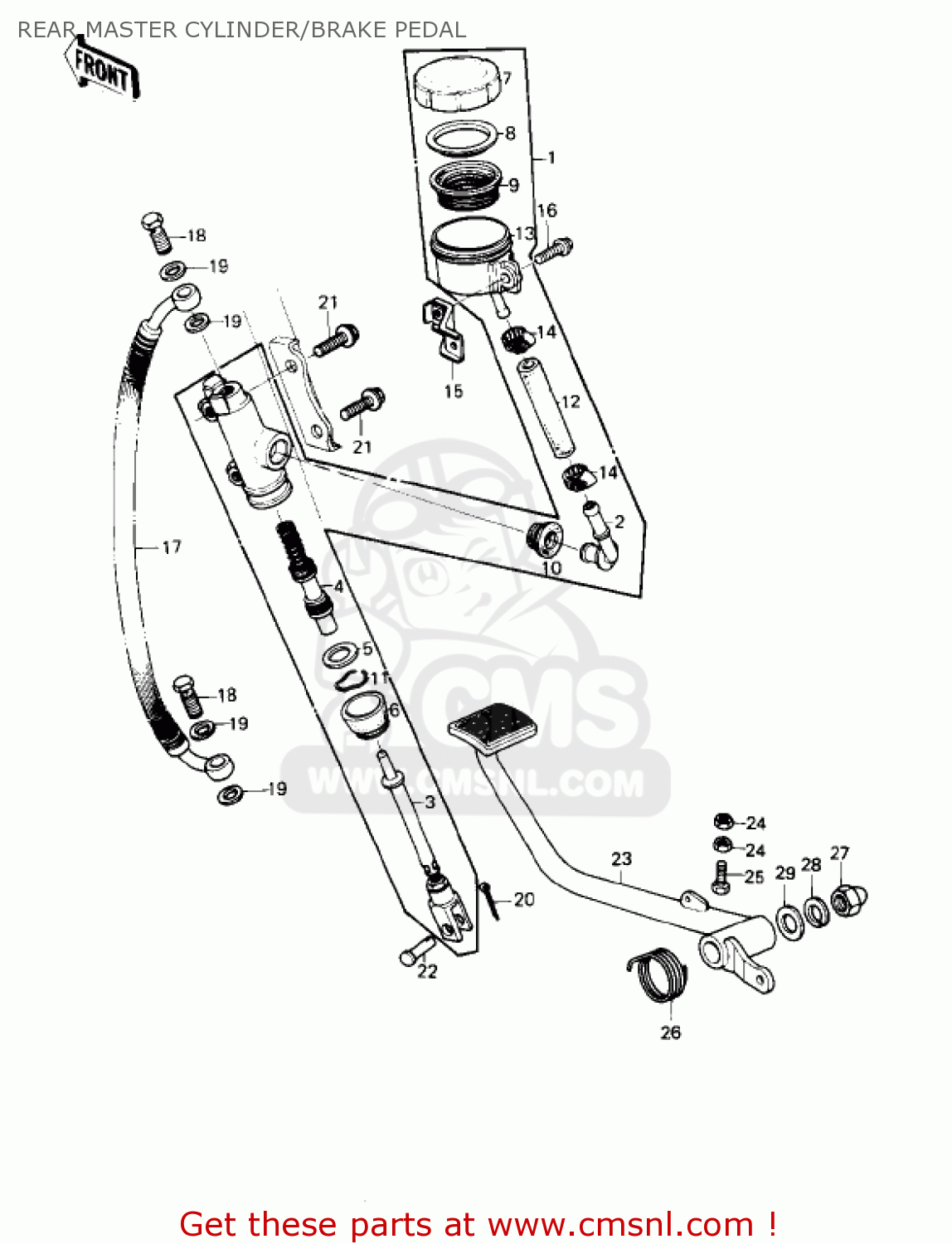

Rear master cylinder/brake pedal diagram KZ1000B4 LTD 1980 USA CANADA
REAR MASTER CYLINDER/BRAKE PEDAL KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
430151047
ref: 1
CYLINDER ASSY,RR MAST
€ 240.00
2
131591005
ref: 2
CONNECTOR
€ 8.00
3
430101003
ref: 3
ROD ASSY,REAR BRAKE
€ 37.50
4
430201015
ref: 4
PISTON-COMP-BRAKE
€ 56.50
5
430221002
ref: 5
STOPPER-BRAKE,PISTON
€ 2.50
6
43024003
ref: 6
COVER-SEAL
€ 15.00
7
430261010
ref: 7
CAP,OIL CUP
€ 22.50
8
430271005
ref: 8
PLATE-DIAPHRAGM
€ 4.50
9
430281016
ref: 9
DIAPHRAGM
€ 15.00
10
430491008
ref: 10
PACKING (NAS)
€ 9.00
11
43058004
ref: 11
RING,ROD STOPPER
€ 4.50
12
430591044
ref: 12
HOSE,BRAKE
€ 9.00
13
430781008
ref: 13
RESERVIOR
€ 13.50
14
920371154
ref: 14
CLAMP,BRAKE HOSE
€ 6.50
15
110341580
ref: 15
BRACKET,RR M/CYLINDER
€ 6.00
16
130G0620
ref: 16
BOLT,FLANGED,6X20
€ 2.50
17
430591046
ref: 17
HOSE,RR M/CYLINDER
€ 109.00
18
920021888
ref: 18
BOLT,OIL,L=23
€ 3.50
19
43067001
ref: 19
WASHER,10.5X15X1.5
€ 1.50
20
550D2015
ref: 20
PIN-COTTER,2.0X15
€ 1.00
21
920011095
ref: 21
BOLT,8X28
€ 4.50
22
920431013
ref: 22
PIN
€ 6.50
23
430011040
ref: 23
PEDAL,BRAKE
€ 94.00
24
311B0600
ref: 24
NUT,6MM
€ 0.50
25
112G0620
ref: 25
BOLT 6X20
€ 1.00
26
920811046
ref: 26
SPRING,BRAKE PEDAL RE
€ 7.50
27
92019013
ref: 27
NUT,CAP,LOCK,8MM
€ 5.50
28
461F0800
ref: 28
WASHER-SPRING,8MM
€ 0.50
29
92022125
ref: 29
WASHER,6.5X20X1.6
€ 1.00
