CARBURETOR PARTS (KZ1000-B2)
KZ1000B4 LTD 1980 USA CANADA

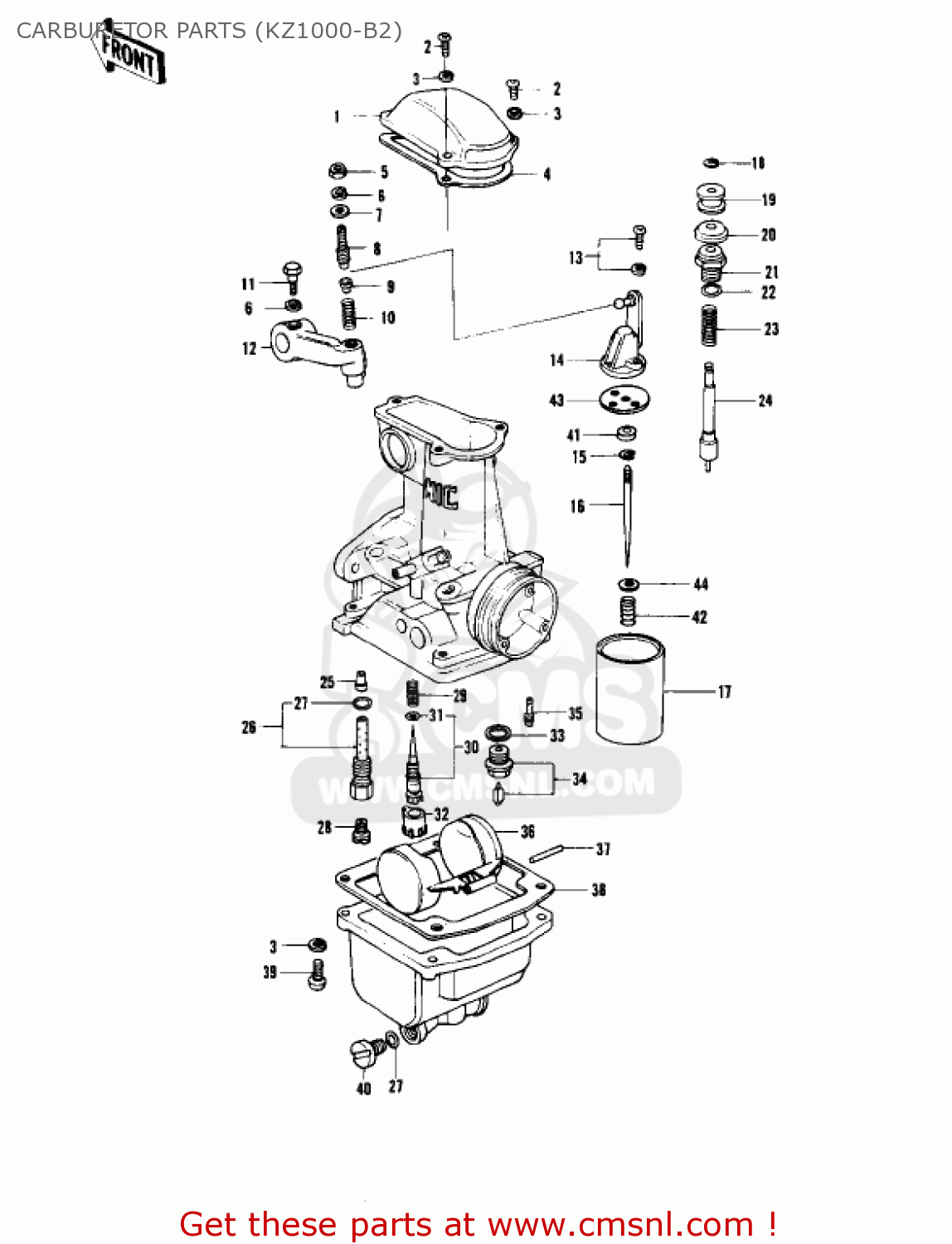

Carburetor parts (kz1000-b2) diagram KZ1000B4 LTD 1980 USA CANADA
CARBURETOR PARTS (KZ1000-B2) KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16005027
ref: 1
TOP,MIXING CHAMBER
€ 15.50
2
223B0414
ref: 2
SCREW PAN-WS-CROS
€ 2.50
3
461F0400
ref: 3
WASHER-SPRING,4MM
€ 0.50
4
16019031
ref: 4
GASKET,CHAMBER,TOP (NAS)
€ 24.50
5
16003013
ref: 5
NUT,5M/M
€ 6.00
6
461F0500
ref: 6
WASHER-SPRING,5MM
€ 0.50
7
16039016
ref: 7
WASHER,PLAIN
€ 3.50
8
16046012
ref: 8
SCREW, SLOTTED
€ 13.50
9
16057002
ref: 9
SEAT-SPRING
€ 6.00
10
16040026
ref: 10
SPRING
€ 3.50
11
16067006
ref: 11
BOLT-HEX HEAD,5X14
€ 10.50
12
390751001
ref: 12
LEVER,THROTTLE
€ 25.00
13
16033031
ref: 13
SCREW, PAN HEAD, 3X14
€ 3.50
14
110341238
ref: 14
THROTTLE VALVE BRACKET
€ 29.00
15
16008010
ref: 15
CLAMP,E-TYPE
€ 5.00
16
160091014
ref: 16
JET,NEEDLE,5CN7
€ 19.00
17
160251014
ref: 17
THROTTLE VALVE,CA2.0
€ 67.00
18
16076003
ref: 18
CLAMP
€ 4.50
19
16073014
ref: 19
COLLAR,STARTER PLUNGE
€ 5.50
20
16039015
ref: 20
CAP,STARTER PLUNGER
€ 4.50
21
16012015
ref: 21
CAP-STARTER PLUNGER
€ 8.50
22
670B1509
ref: 22
O RING,9MM
€ 1.00
23
16013008
ref: 23
SPRING-STARTER PLUNG
€ 4.50
24
16016021
ref: 24
PLUNGER,STARTER
€ 26.00
25
160171017
ref: 25
JET,NEEDLE,#AO-3
€ 20.00
26
491221004
ref: 26
BLEED PIPE
€ 17.50
27
16038016
ref: 27
GASKET,O-RING
€ 2.50
28
920631028
ref: 28
JET-MAIN,#A102.5R
€ 10.00
29
16022016
ref: 29
SPRING, PILOT SCREW
€ 6.00
30
16014018
ref: 30
SCREW-PILOT AIR
€ 19.00
31
16038024
ref: 31
O RING
€ 1.00
32
110121041
ref: 32
LIMITER CAP
€ 3.00
33
16029004
ref: 33
WASHER-FLOAT VLV SEAT
€ 2.50
34
16030027
ref: 34
VALVE-FLOAT
€ 85.00
35
920641017
ref: 35
PILOT JET #A15
€ 15.00
36
16031031
ref: 36
FLOAT
€ 114.50
37
16032003
ref: 37
FLOAT PIN
€ 4.00
38
110091563
ref: 38
GASKET,FLOAT CHAMBER (NAS)
€ 14.00
39
220B0416
ref: 39
SCREW-PAN-CROS
€ 2.00
40
16049007
ref: 40
SCREW, GUIDE
€ 9.50
41
920271103
ref: 41
RING,JET NEEDLE
€ 4.50
42
920811072
ref: 42
NEEDLE JET SPRING
€ 2.50
43
131691107
ref: 43
NEEDLE JET PLATE
€ 5.50
44
920221024
ref: 44
WASHER,THROTTLE VALVE
€ 4.50
