REAR BRAKE ('79-'80 B3/B4)

KZ1000B4 LTD 1980 USA CANADA

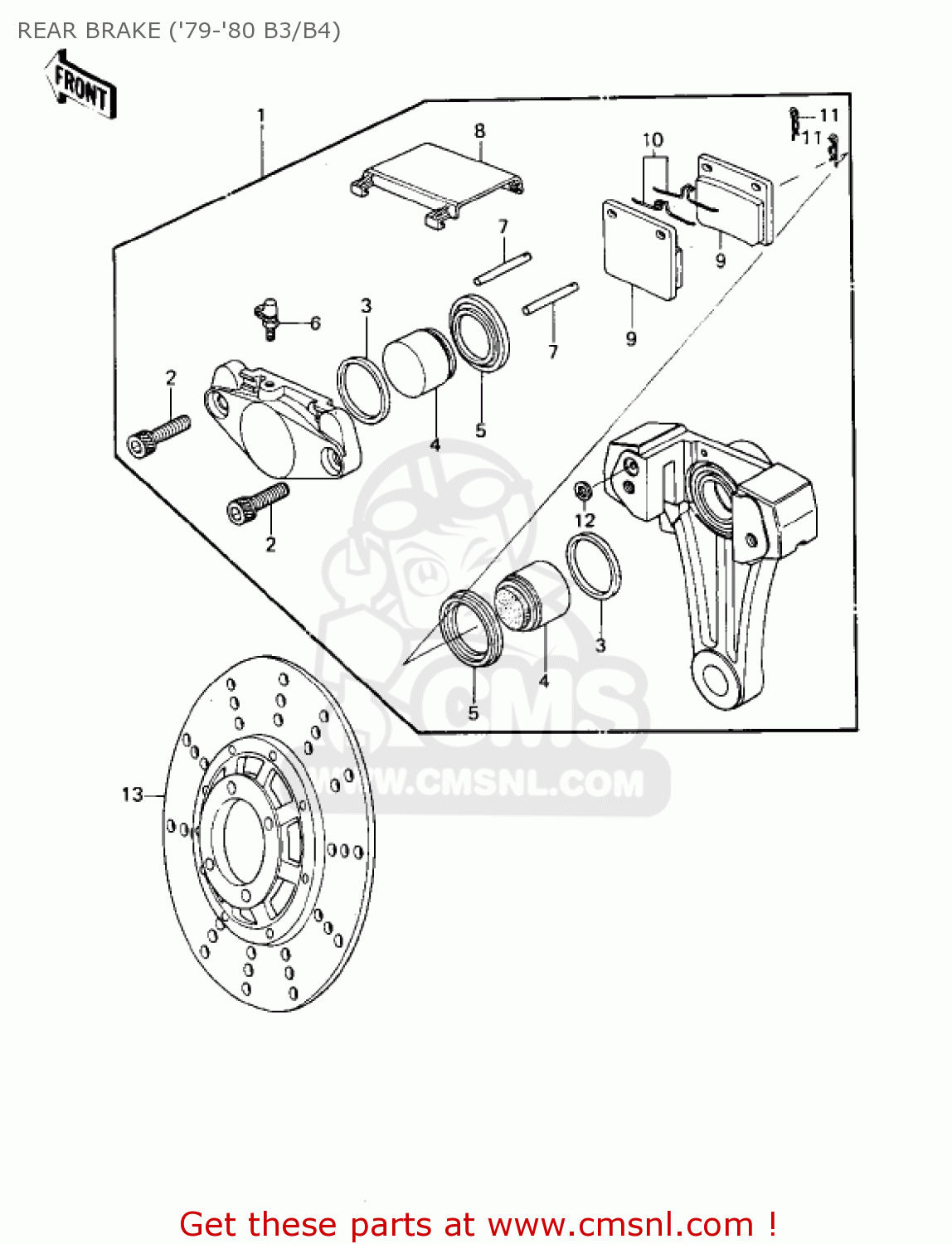

Rear brake ('79-'80 b3/b4) diagram KZ1000B4 LTD 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

430411027
ref: 1

CALIPER ASSEMBLY,REAR

€ 358.50

43033005
ref: 2

BOLT

€ 6.00

43049002A
ref: 3

PISTON SEAL RING

€ 9.00

430201011
ref: 4

PISTON-COMP-BRAKE

€ 65.50

43054004
ref: 5

BOOT,PISTON

€ 10.00

43085001
ref: 6

BREEDER SET

€ 16.50

43045007
ref: 7

PIN CALIPER

€ 4.00

43024004
ref: 8

COVER-SEAL,CALIPER

€ 13.50

430821002
ref: 9

PAD SET (MCA)

€ 35.50

43086002
ref: 10

SPRING

€ 5.50

43084003
ref: 11

CLIP, PAD

€ 2.50

430491004
ref: 12

RING SEAL6.5X11.5X2.2

€ 4.00

410801020
ref: 13

DISC PLATE,REAR

€ 355.50
