CARBURETOR ASSY (KZ1000-B2)
KZ1000B4 LTD 1980 USA CANADA

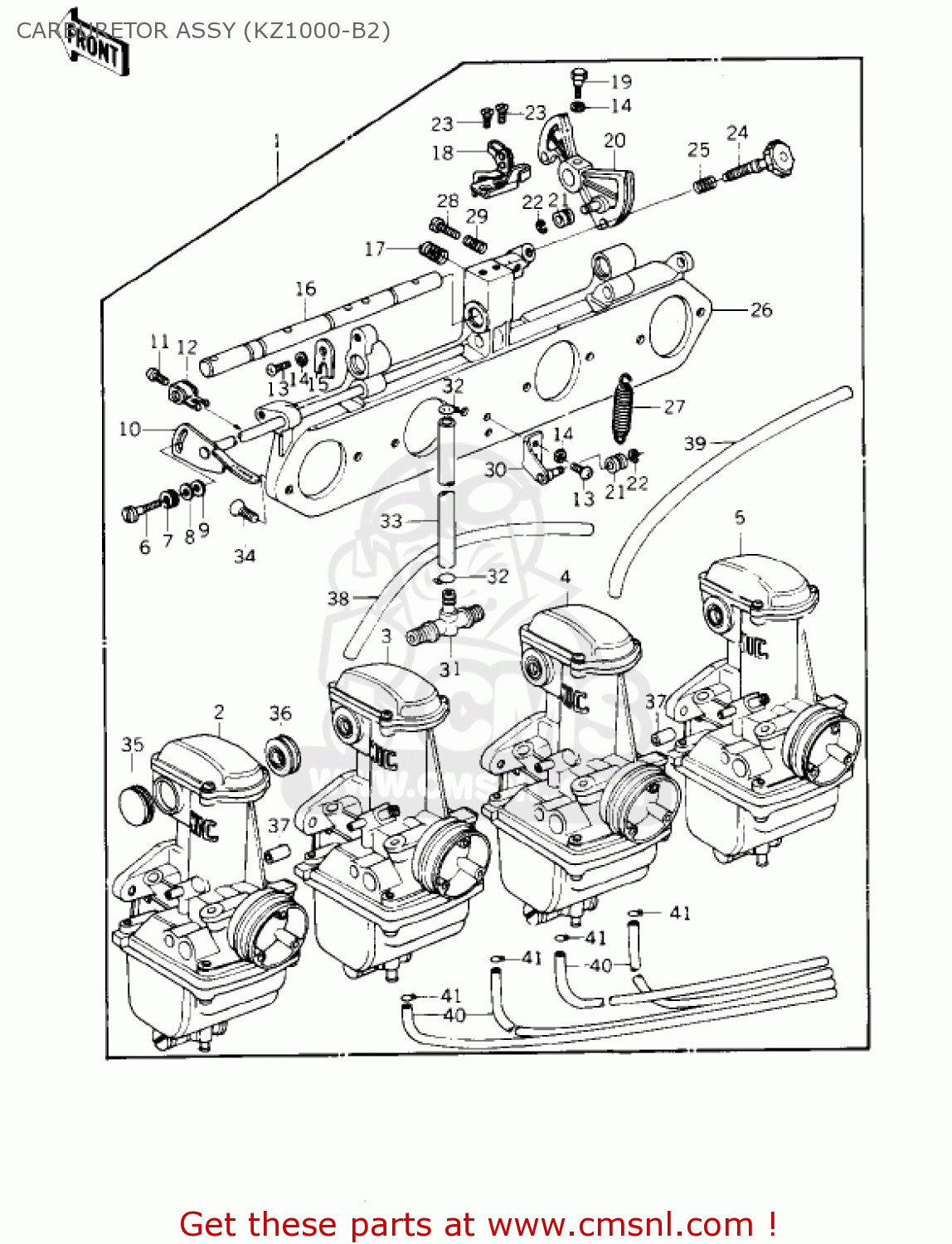

Carburetor assy (kz1000-b2) diagram KZ1000B4 LTD 1980 USA CANADA
CARBURETOR ASSY (KZ1000-B2) KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
160011017
ref: 1
CARBURETOR ASSEMBLY
€ 907.00
2
160011034
ref: 2
CARBURETOR,OUTSIDE,LH
€ 266.50
3
160011035
ref: 3
CARBURETOR,INSIDE,LH
€ 266.50
4
160011036
ref: 4
CARBURETOR,INSIDE,RH
€ 266.50
5
160011037
ref: 5
CARBURETOR,OUTSIDE,LH
€ 266.50
6
16046005
ref: 6
SCREW
€ 4.50
7
16040009
ref: 7
SPRING,F
€ 6.50
8
410B0500
ref: 8
STEEL
WASHER-PLAIN-SMALL,5M
€ 0.50
9
16039019
ref: 9
NYLON
WASHER-PLAIN
€ 3.00
10
16041021
ref: 10
SHAFT,STARTER PLUNGER
€ 37.50
11
16046007
ref: 11
SCREW,PAN HEAD,5X7
€ 6.50
12
131681026
ref: 12
LEVER,STARTER PLUNGER
€ 13.50
13
220B0514
ref: 13
ACREW-PAN HEAD,5X14
€ 2.50
14
461F0500
ref: 14
WASHER-SPRING,5MM
€ 0.50
15
16055012
ref: 15
PLATE,SHAFT STOPPER
€ 7.00
16
16041017
ref: 16
SHAFT,CARB CONNECTION
€ 47.50
17
16040022
ref: 17
SPRING,CABLE PLY BKT
€ 6.00
18
16077017
ref: 18
BRACKET,THROTTLE CABL
€ 41.00
19
16067006
ref: 19
BOLT-HEX HEAD,5X14
€ 10.50
20
16068015
ref: 20
PULLEY,THROTTLE CABLE
€ 46.00
21
16073016
ref: 21
RING
€ 8.00
22
482K3000
ref: 22
CIRCLIP-TYPE-E,3MM
€ 2.00
23
221B0510A
ref: 23
SCREW-CNTSNK HD,5X10
€ 2.50
24
160211010
ref: 24
SCREW-THROTTLE STOP
€ 16.00
25
16022017
ref: 25
SPRING, THROTTLE STOP
€ 4.50
26
16065049
ref: 26
HOLDER, CARBURETOR
€ 78.50
27
920811028
ref: 27
SPRING,THORTTLE PULLY
€ 41.00
28
16021032
ref: 28
SCREW
€ 4.00
29
16022010
ref: 29
SPRING,THROTTLE ADJST
€ 4.50
30
16077016
ref: 30
BRACKET,THROTTLE CABL
€ 10.00
31
16046002
ref: 31
SCREW,FUEL PIPE
€ 31.50
32
92037056
ref: 32
CLAMP,FUEL TUBE
€ 3.00
33
92059144
ref: 33
HOSE, FUEL
€ 50.50
34
16033029
ref: 34
SCREW,PAN HEAD,6X14
€ 3.00
35
16039042
ref: 35
CAP,RUBBER
€ 9.00
36
92071104
ref: 36
GROMMET,CARBURETOR
€ 16.00
37
92059141
ref: 37
HOSE, 6X11.5X16
€ 9.00
38
920591028
ref: 38
HOSE,AIR VENT,5X8X550
€ 13.00
39
920591028
ref: 39
HOSE,AIR VENT,5X8X550
€ 13.00
40
92059147
ref: 40
HOSE,FUEL OVERFLOW
€ 17.50
41
92037173
ref: 41
CLAMP,TUBE
€ 4.50
