FRONT FORK ('77-'78 B1/B2)
KZ1000B4 LTD 1980 USA CANADA

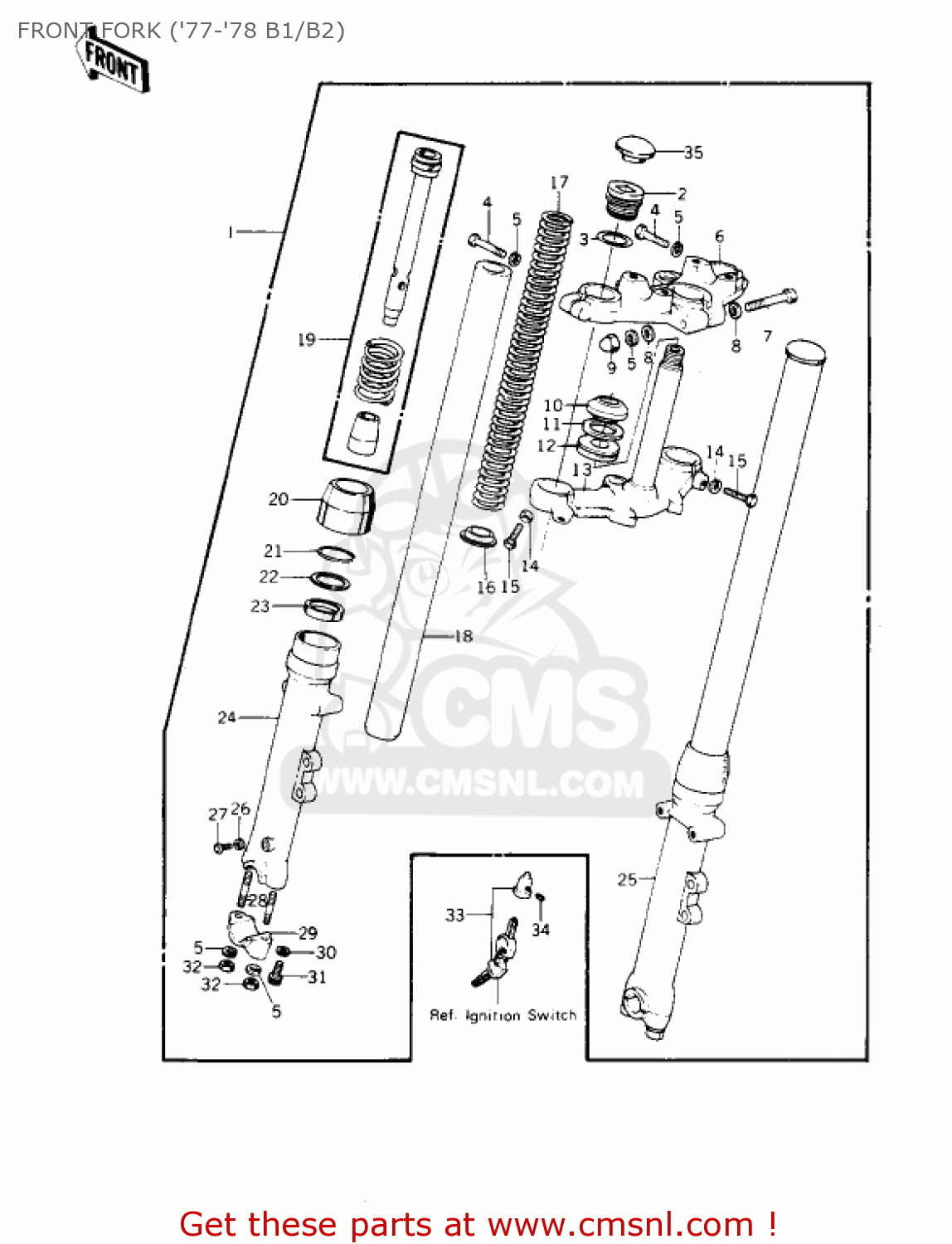

Front fork ('77-'78 b1/b2) diagram KZ1000B4 LTD 1980 USA CANADA
FRONT FORK ('77-'78 B1/B2) KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
440011003
ref: 1
FRONT FORK
€ 774.00
2
440291002
ref: 2
NO PRODUCT DESCRIPTION
€ 0.00
2
440291003
ref: 2
SEAT-FORK SPRING
€ 34.00
3
920551009
ref: 3
RING-O,FORK TOP
€ 3.00
4
44041045
ref: 4
BOLT-HEX HEAD,8MM
€ 15.00
5
461F0800
ref: 5
WASHER-SPRING,8MM
€ 0.50
6
44039073
ref: 6
HEAD,STEERING
€ 132.50
7
44041042
ref: 7
BOLT-STEERING STEM HD
€ 3.00
8
410B0800
ref: 8
WASHER-PLAIN-SMALL,8M
€ 0.50
9
92020007
ref: 9
NUT,CAP,8MM
€ 3.50
10
92047012
ref: 10
CONE-STRNG STM BRNG
€ 14.50
11
92022231
ref: 11
WASHER,PLAIN
€ 3.00
12
92056003
ref: 12
OIL SEAL,STEERING STM
€ 6.00
13
44037098
ref: 13
STEEM,STEERING
€ 208.00
14
461F1200
ref: 14
WASHER-SPRING,12MM
€ 0.50
15
92003064
ref: 15
BOLT-HEX HEAD,12X36
€ 15.00
16
440281001
ref: 16
GUID,FORK SPRING
€ 5.50
17
440261003
ref: 17
SPRING,FORK
€ 47.00
18
440131003
ref: 18
PIPE-FORK INNER
€ 202.00
19
440221002
ref: 19
CYLINDER,FORK
€ 45.50
20
44010032
ref: 20
SEAL,FORK
€ 17.00
21
920331100
ref: 21
RING-SNAP,FORK OIL SE
€ 9.50
22
44043044
ref: 22
WASHER,OIL SEAL FIT
€ 8.00
23
920491216
ref: 23
SEAL-OIL,FORK OUTER P
€ 16.00
24
440051031
ref: 24
TUBE,L.H FORK OUTER
€ 183.00
25
440061031
ref: 25
TUBE,L.H FORK OUTER
€ 196.00
26
44045002
ref: 26
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
27
220B0408
ref: 27
SCREW-PAN-CROS
€ 0.50
28
920041009
ref: 28
STUD, 8X35
€ 4.00
29
44063014
ref: 29
HOLDER,FRONT AXLE
€ 23.50
30
44045057
ref: 30
GASKET (NAS)
€ 3.00
31
44041040
ref: 31
BOLT-FORK CYLINDER
€ 4.50
32
92019013
ref: 32
NUT,CAP,LOCK,8MM
€ 5.50
33
27016048
ref: 33
LOCK-ASSY,STEERING
€ 50.50
34
92014016
ref: 34
SCREW, SEAT LOCK
€ 3.50
35
110121011
ref: 35
NO PRODUCT DESCRIPTION
€ 0.00
35
110121017
ref: 35
CAP,RUBBER
€ 7.00
