REAR BRAKE ('77-'78 B1/B2)

KZ1000B4 LTD 1980 USA CANADA

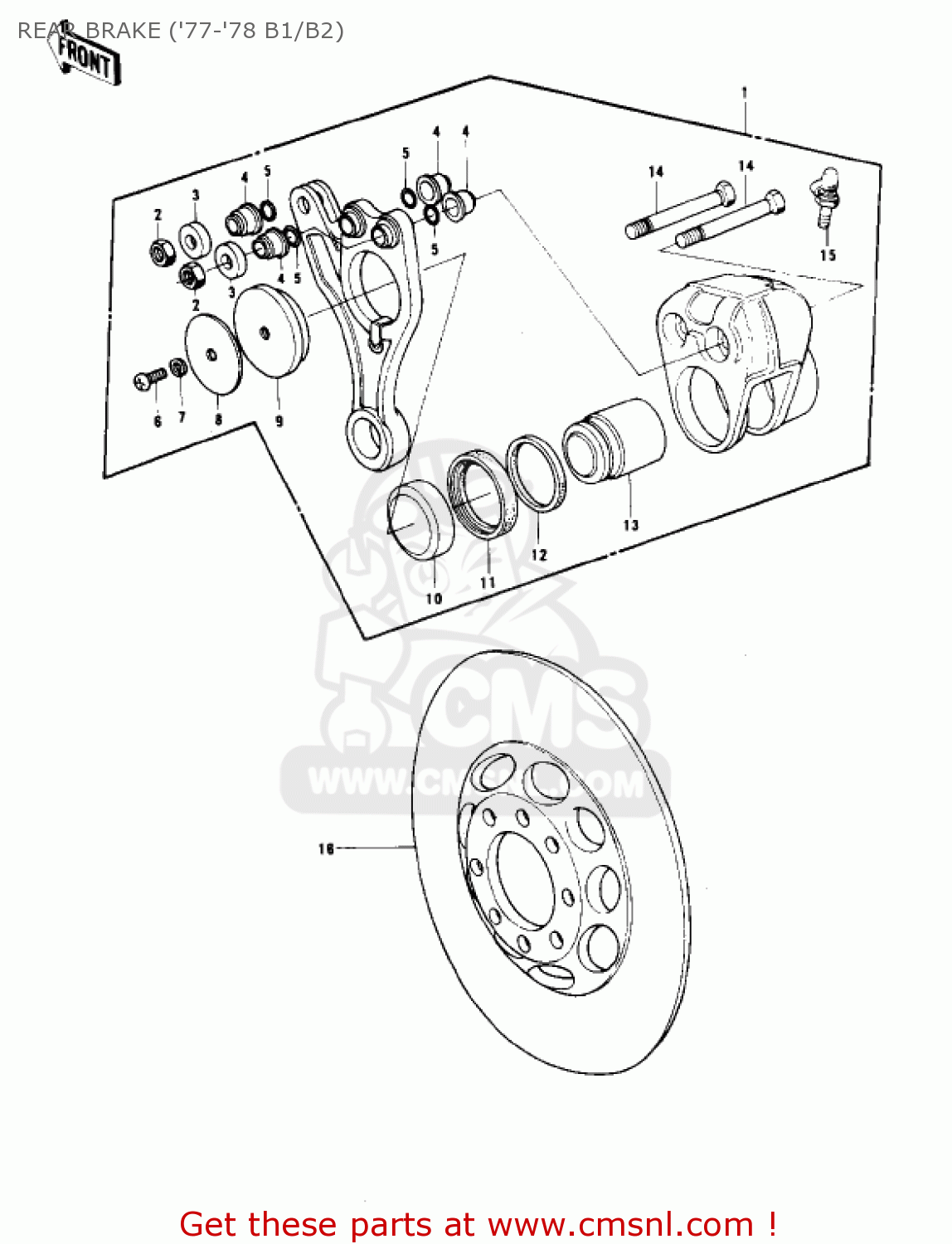

Rear brake ('77-'78 b1/b2) diagram KZ1000B4 LTD 1980 USA CANADA

prices are in EUR

ref

part #

description

quantity

43041034
ref: 1

CALIPER ASSEMBLY,REAR

€ 944.00

315B1000
ref: 2

NUT,10MM

€ 0.50

43088002
ref: 3

PLUG

€ 6.50

43052005
ref: 4

BOOT,SHAFT

€ 7.50

43053006
ref: 5

RING-O

€ 7.00

220B0612
ref: 6

SCREW-PAN HEAD,6X12

€ 1.00

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

43040004
ref: 8

SPACER

€ 8.00

9-10

430505002
ref: 9-10
INCLUDES PADS A & B

PAD ASSY,REAR(MCB94LF (MCA)

€ 67.50

43051009
ref: 9

PAD B

€ 97.50

43050008
ref: 10

PAD A (MCA)

€ 67.50

43054003
ref: 11

BOOT,PISTON

€ 10.00

43049002A
ref: 12

PISTON SEAL RING

€ 9.00

43048006
ref: 13

PISTON,CALIPER

€ 47.00

43045006
ref: 14

BOLT

€ 18.00

43085001
ref: 15

BREEDER SET

€ 16.50

41080008
ref: 16

PLATE,FRONT DISC

€ 375.00
