HEADLIGHT ('77-'78 B1/B2)
KZ1000B4 LTD 1980 USA CANADA

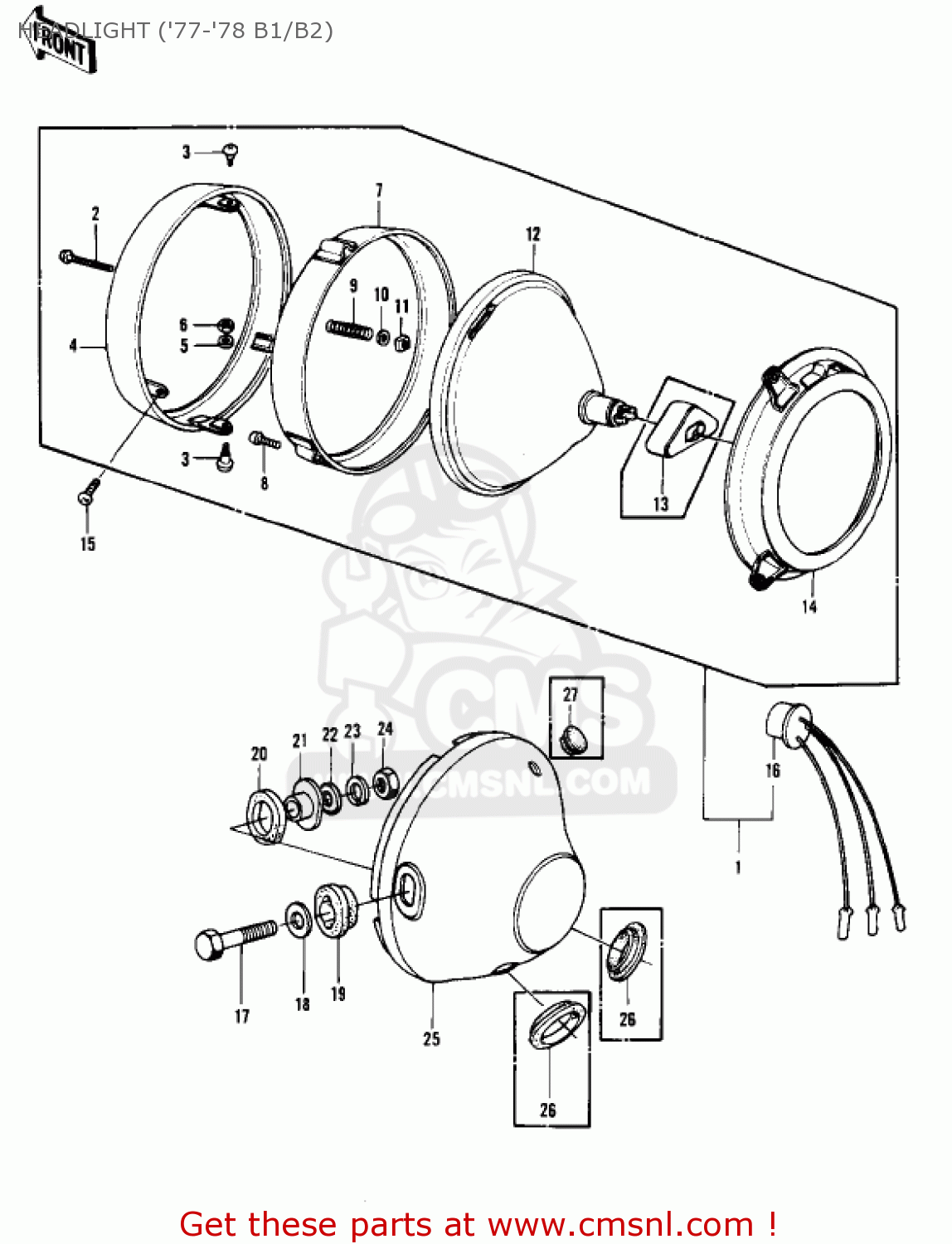

Headlight ('77-'78 b1/b2) diagram KZ1000B4 LTD 1980 USA CANADA
HEADLIGHT ('77-'78 B1/B2) KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
23004017
ref: 1
KZ1000-B1
LAMP UNIT-HEAD
€ 37.50
1
230041009
ref: 1
KZ1000-B2
HEADLAMP,UNIT
€ 90.00
2
23019021
ref: 2
SCREW-FORCUS ADJUST
€ 3.00
3
23019023
ref: 3
SCREW-PAN HEAD,5X12
€ 3.50
4
23006038
ref: 4
RIM-LAMP
€ 56.50
5
23021012
ref: 5
WASHER
€ 3.00
6
23020023
ref: 6
NUT,5MM
€ 3.00
7
23072001
ref: 7
RETAINER,HEAD LAMP
€ 26.00
8
220B0312
ref: 8
SCREW-PAN CROS,3X12
€ 2.00
9
23014005
ref: 9
SPRING-FOCUS ADJUST
€ 2.50
10
23021004
ref: 10
WASHER,4.1X8X0.8
€ 2.00
11
23020018
ref: 11
NUT,4MM,FOCUS ADJUST
€ 3.00
12
23007041
ref: 12
KZ1000-B1
LENS-COMP,001-1014 MA
€ 102.00
12
230071006
ref: 12
KZ1000-B2
SEALED BEAM UNIT
€ 74.50
13
490161009
ref: 13
FOR 23004-1009
HEADLAMP DUST COVER
€ 3.50
14
23074001
ref: 14
HOLDER,HEAD LAMP
€ 28.00
15
23019022
ref: 15
SCREW-SPECIAL,5X14
€ 1.50
16
23008037
ref: 16
SOCKET-ASSY,HEAD LAMP
€ 12.50
17
92007024
ref: 17
BOLT,10MM
€ 4.50
18
411D1000
ref: 18
WASHER-PLAIN,10MM
€ 3.00
19
23066022
ref: 19
DAMPER
€ 6.00
20
23066021
ref: 20
DAMPER
€ 6.00
21
23052010
ref: 21
COLLAR
€ 28.50
22
410B1000
ref: 22
WASHER-PLAIN-SMALL,10
€ 0.50
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
315B1000
ref: 24
NUT,10MM
€ 0.50
25
23005055
ref: 25
KZ1000-B1
HEADLAMP BODY
€ 71.00
25
230051016
ref: 25
1 WIRING HOLE
BODY-COMP-HEAD LAMP,C
€ 136.50
25
230051016
ref: 25
2 WIRING HOLES
BODY-COMP-HEAD LAMP,C
€ 136.50
26
920711008
ref: 26
FOR 23005-1005
GROMMET
€ 4.00
27
92074006
ref: 27
FOR 23005-055
PLUG,FENDER,RR,12X1
€ 4.00
