HEADLIGHT (KZ1000-B4)
KZ1000B4 LTD 1980 USA CANADA

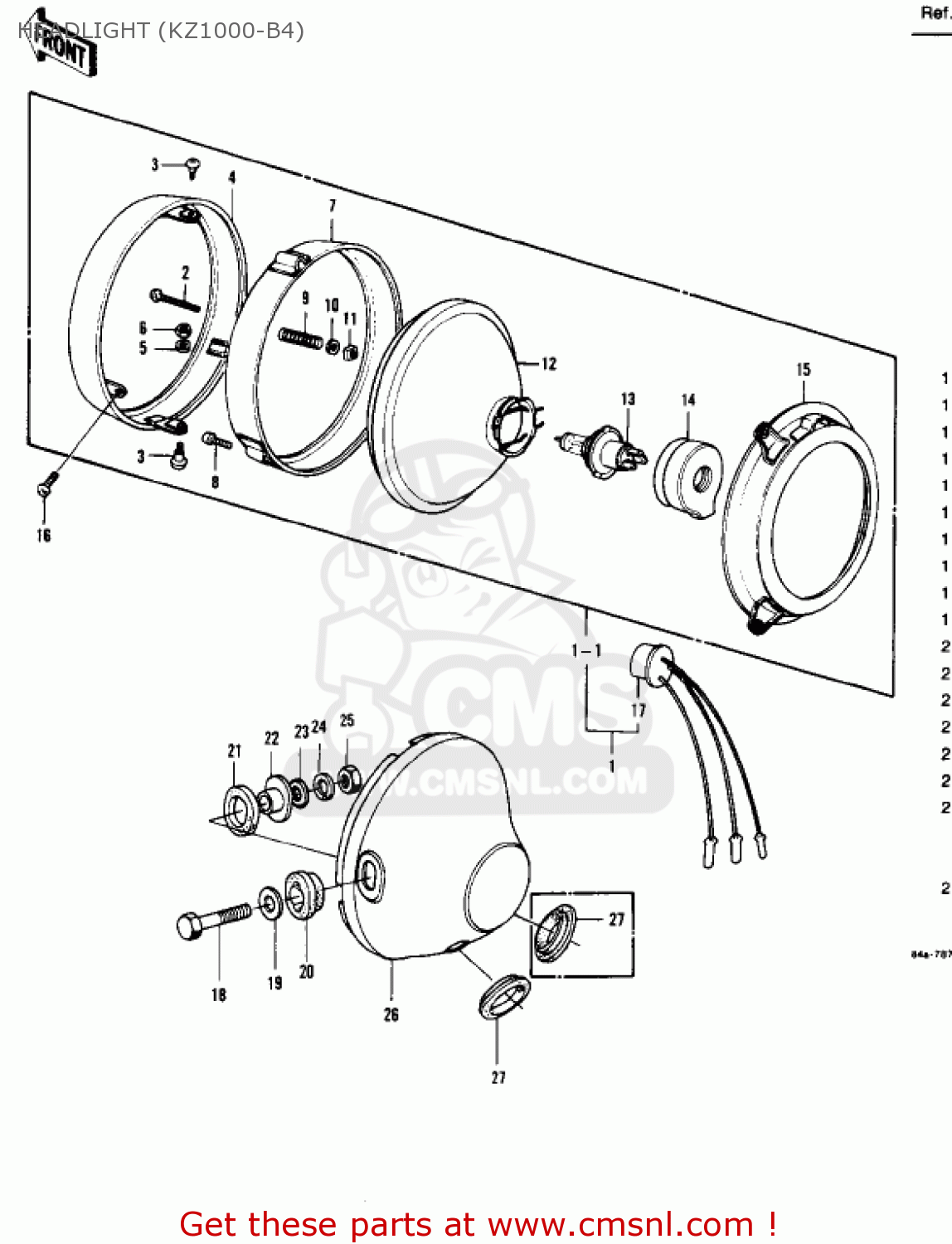

Headlight (kz1000-b4) diagram KZ1000B4 LTD 1980 USA CANADA
HEADLIGHT (KZ1000-B4) KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
230041035
ref: 1
INCL REF 17
HEADLAMP
€ 0.00
1-1
230041040
ref: 1-1
ORDER REF 17 SEPARAT
HEADLAMP
€ 331.50
2
23019021
ref: 2
SCREW-FORCUS ADJUST
€ 3.00
3
23019023
ref: 3
SCREW-PAN HEAD,5X12
€ 3.50
4
23006038
ref: 4
RIM-LAMP
€ 56.50
5
23021012
ref: 5
WASHER
€ 3.00
6
23020023
ref: 6
NUT,5MM
€ 3.00
7
23072001
ref: 7
RETAINER,HEAD LAMP
€ 26.00
8
220B0312
ref: 8
SCREW-PAN CROS,3X12
€ 2.00
9
23014005
ref: 9
SPRING-FOCUS ADJUST
€ 2.50
10
23021004
ref: 10
WASHER,4.1X8X0.8
€ 2.00
11
23020018
ref: 11
NUT,4MM,FOCUS ADJUST
€ 3.00
12
230071009
ref: 12
LENS UNIT, HEAD LAMP
€ 127.00
13
920691002
ref: 13
PHILIPS (H4 12342)
BULB,12V-60155W
€ 15.00
14
490161016
ref: 14
COVER-SEAL
€ 16.00
15
23074001
ref: 15
HOLDER,HEAD LAMP
€ 28.00
16
23019022
ref: 16
SCREW-SPECIAL,5X14
€ 1.50
17
23008037
ref: 17
SOCKET-ASSY,HEAD LAMP
€ 12.50
18
92007024
ref: 18
BOLT,10MM
€ 4.50
19
411D1000
ref: 19
WASHER-PLAIN,10MM
€ 3.00
20
23066022
ref: 20
DAMPER
€ 6.00
21
23066021
ref: 21
DAMPER
€ 6.00
22
23052010
ref: 22
COLLAR
€ 28.50
23
410B1000
ref: 23
WASHER-PLAIN-SMALL,10
€ 0.50
24
461F1000
ref: 24
WASHER-SPRING,10MM
€ 0.50
25
315B1000
ref: 25
NUT,10MM
€ 0.50
26
230051016
ref: 26
1 WIRING HOLE
BODY-COMP-HEAD LAMP,C
€ 136.50
26
230051016
ref: 26
2 WIRING HOLES
BODY-COMP-HEAD LAMP,C
€ 136.50
27
920711008
ref: 27
FOR 23005-1012
GROMMET
€ 4.00
