CYLINDER HEAD/COVER ('77-'78 B1/
KZ1000B4 LTD 1980 USA CANADA

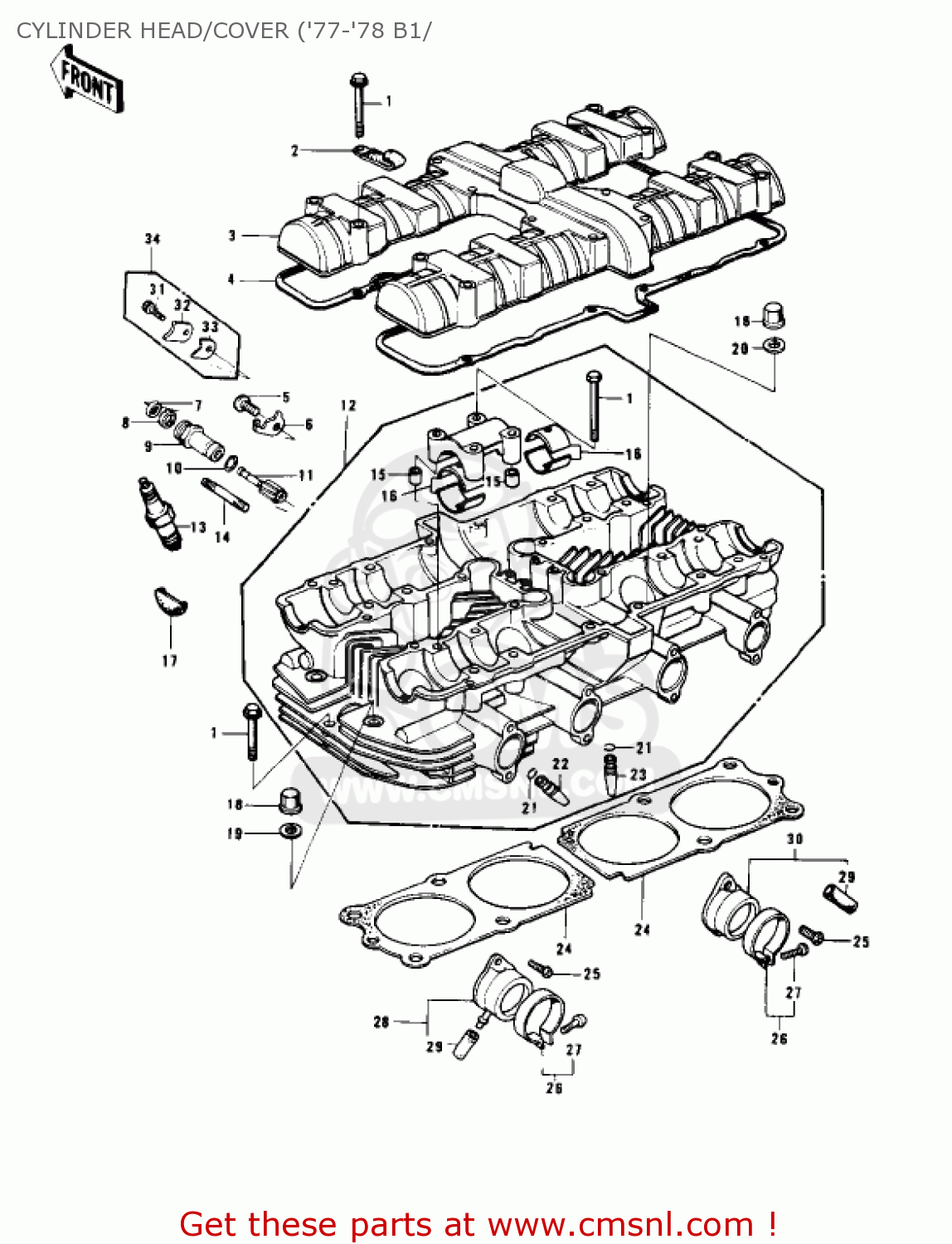

Cylinder head/cover ('77-'78 b1/ diagram KZ1000B4 LTD 1980 USA CANADA
CYLINDER HEAD/COVER ('77-'78 B1/ KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92003092
ref: 1
BOLT-HEX HEAD,6X45
€ 4.50
2
21126008
ref: 2
CLAMP,WIRING HARNESS
€ 3.00
3
110220122H
ref: 3
COVER, CYLINDER HEAD
€ 234.00
4
11023006
ref: 4
GASKET-CYL HEAD COVER (MCA)
€ 99.50
5
220B0610
ref: 5
E NO. 1~038426
SCREW-PAN HEAD,6X10
€ 2.00
6
13169015
ref: 6
E NO. 1~038426
PLATE
€ 2.50
7
92065103
ref: 7
GASKET,TACHOMETER GER (NAS)
€ 2.50
8
92050075
ref: 8
OIL SEAL,TACHOMETER
€ 7.50
9
92087010
ref: 9
GUIDE,TACHOMETER GEAR
€ 16.50
10
920551149
ref: 10
RING-O,10MM
€ 4.00
11
13223011
ref: 11
GEAR,TACHOMETER, 10T
€ 63.00
12
1100210112H
ref: 12
CYLINDER HEAD,BARREL
€ 1,023.00
13
B8ESA
ref: 13
NGK B-8ES
NGK SPARK-PLUG B8ES
€ 3.00
14
920041069
ref: 14
STUD,8X30
€ 4.50
15
92042007
ref: 15
PIN-DOWEL
€ 4.00
16
13034030
ref: 16
BUSHING,CAMSHAFT
€ 15.00
17
92066017
ref: 17
PLUG,CAMSHAFT,14X7
€ 15.00
18
92015076
ref: 18
NUT,FLANGED CAP,10MM
€ 9.00
19
92022215
ref: 19
COPPER
WASHER,10.5X22X1.6
€ 6.00
20
411B1000
ref: 20
STEEL
WASHER-PLAIN,10MM
€ 0.50
21
92036023
ref: 21
CIRCLIP,VALVE GUIDE
€ 0.50
22
12013009
ref: 22
GUIDE-VALVE,INTAKE
€ 18.00
23
12013040
ref: 23
UNAVAILABLE IN PRICE BOOK
€ 0.00
24
11004076
ref: 24
GASKET, CYLINDER HEAD (MCA)
€ 58.50
25
220B0618
ref: 25
SCREW-PAN HEAD,6X18
€ 2.50
26
92037077
ref: 26
CLAMP,HOLDER
€ 7.00
27
92011037
ref: 27
SCREW,PAN HEAD 5X25
€ 2.50
28
16066029
ref: 28
UNAVAILABLE IN PRICE BOOK
€ 0.00
29
92068006
ref: 29
RUBBER PLUG
€ 2.50
30
16065028
ref: 30
HOLDER,CARBURETOR,RH
€ 67.00
31
120P0614
ref: 31
E NO. 038427
BOLT,6X14
€ 3.00
32
130911008
ref: 32
E NO. 038427
HOLDER, TACHOMETER
€ 2.50
33
130911009
ref: 33
E NO. 038427
HOLDER, TACHOMETER
€ 2.50
34
130915001
ref: 34
E NO. 038427
HOLDER ASSY,TACHOMETR
€ 2.50
