STARTER MOTOR/STARTER CLUTCH ('7
KZ1000B4 LTD 1980 USA CANADA

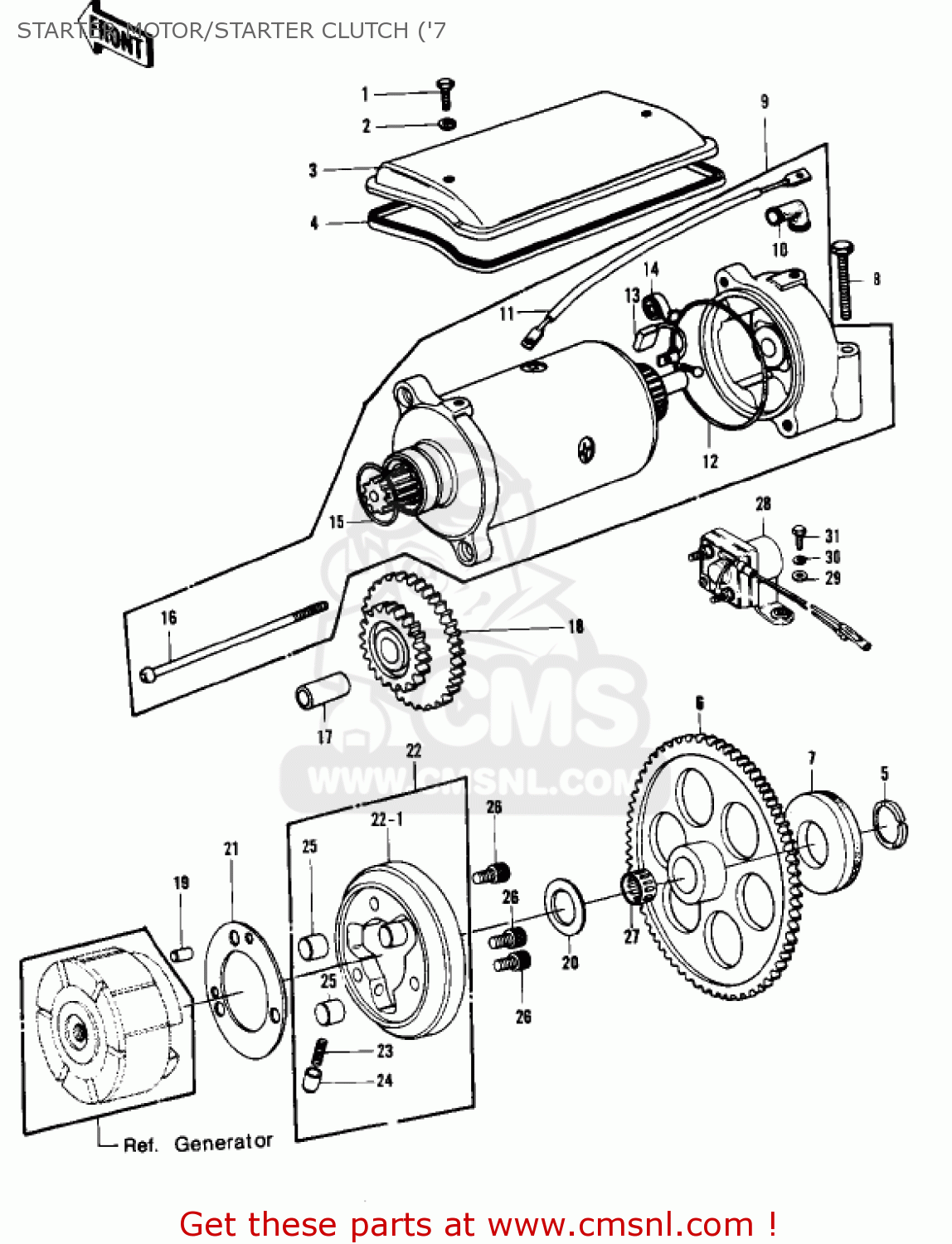

Starter motor/starter clutch ('7 diagram KZ1000B4 LTD 1980 USA CANADA
STARTER MOTOR/STARTER CLUTCH ('7 KZ1000B4 LTD 1980 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110R0610
ref: 1
BOLT,6X10
€ 5.00
2
410D0600
ref: 2
WASHER-PLAIN-SMALL,6M
€ 0.50
3
21165001
ref: 3
COVER,STARTER MOTOR
€ 30.00
4
21166001
ref: 4
GASKET,STARTER COVER (NAS)
€ 23.50
5
92026091
ref: 5
SPACER,PLAIN,22MM
€ 26.50
6
21167003
ref: 6
71T
GEAR,STARTING CLUTCH
€ 436.00
7
92075192
ref: 7
ID = *
DAMPER RUBBER
€ 17.00
7
92075193
ref: 7
ID = **
DAMPER
€ 28.50
7
92075194
ref: 7
ID = ***
DAMPER
€ 28.50
8
920011456
ref: 8
BOLT,6X55
€ 3.00
9
211631019
ref: 9
STARTER-ELECTRIC
€ 666.00
10
21017017
ref: 10
GROMMET-CORD
€ 6.50
11
26010055
ref: 11
WIRE, STARTER MOTOR
€ 22.00
12
21027003
ref: 12
RING-O,STARTER MOTOR
€ 6.00
13
21039003
ref: 13
BRUSH,CARBON
€ 23.50
14
21040003
ref: 14
SPRING-BRUSH
€ 4.50
15
21027004
ref: 15
ORING-STARTING MOTR
€ 6.50
16
21015005
ref: 16
SCREW-PAN HEAD,6X110
€ 5.50
17
13002007
ref: 17
PIN
€ 13.00
18
21167002
ref: 18
19T 70T
GEAR-STARTING MOTOR
€ 89.00
19
551A0622
ref: 19
NOT REQ'D W/13193-10
PIN,DOWEL,6X22
€ 2.50
20
92026092
ref: 20
SPACER,22X35.5X1.0
€ 8.50
21
92026112
ref: 21
SPACER,45X79.5X0.5 (NAS)
€ 7.50
22
131931006
ref: 22
CLUTCH-ASSY-ONEWAY
€ 150.50
23
92081110
ref: 23
SPRING
€ 3.00
24
92043087
ref: 24
PIN
€ 8.00
25
92122001
ref: 25
ROLLER,15X14.4
€ 7.50
26
92003104
ref: 26
BOLT-HEX HEAD,8X16
€ 2.50
27
92046033
ref: 27
BEARING-NEEDLE,K22272
€ 25.50
28
270101023
ref: 28
SWITCH ASSY,MAGNETIC
€ 135.50
28
270101023
ref: 28
SWITCH ASSY,MAGNETIC
€ 135.50
29
92022237
ref: 29
WASHER-PLAIN
€ 2.50
30
461F0600
ref: 30
WASHER-SPRING,6MM
€ 0.50
31
112G0620
ref: 31
BOLT 6X20
€ 1.00
