OWNER TOOLS (KZ1000-B4)

KZ1000B1 KZ1000 LTD 1977 USA CANADA

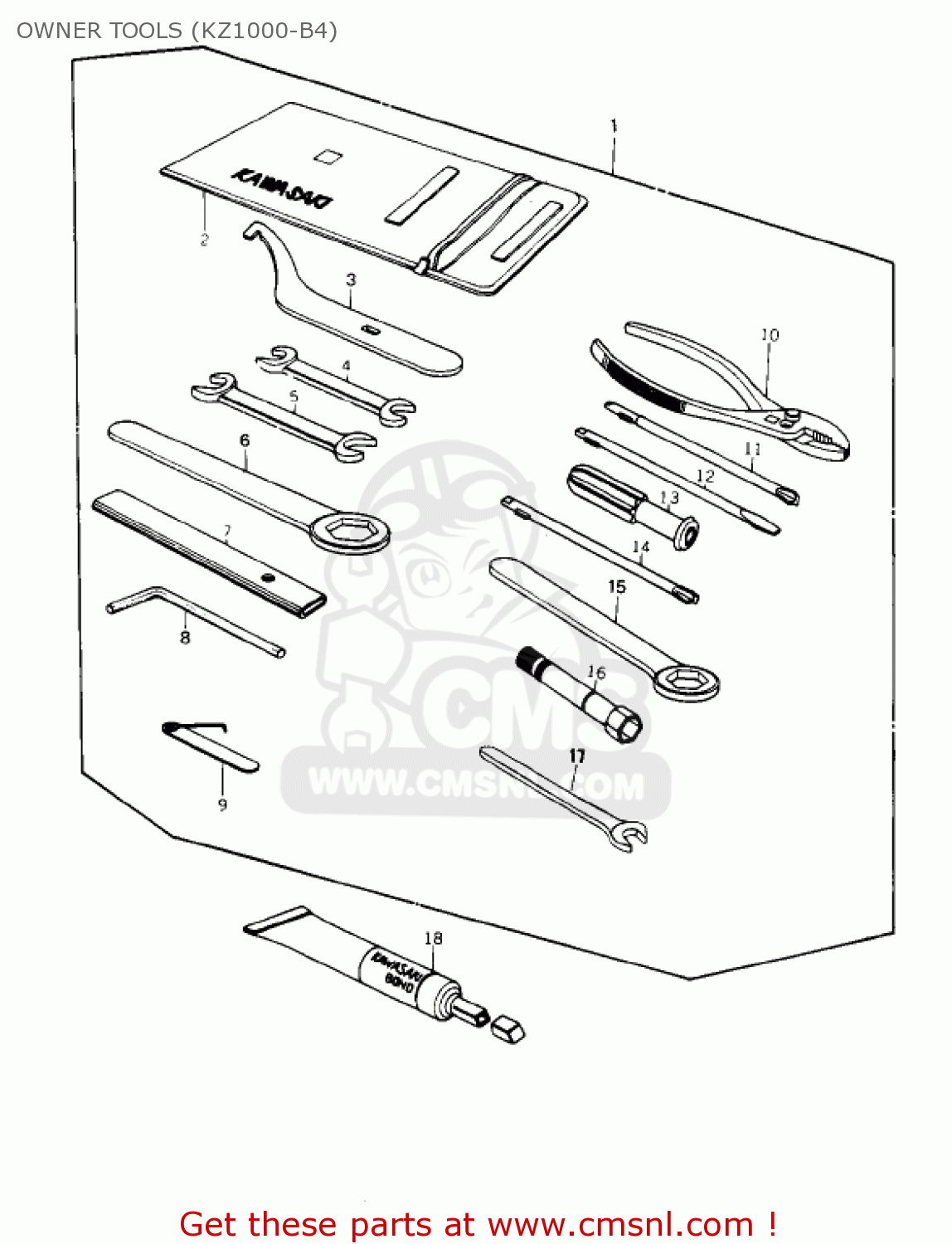

Owner tools (kz1000-b4) diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

OWNER TOOLS (KZ1000-B4) KZ1000B1 KZ1000 LTD 1977 USA CANADA

OWNER TOOLS (KZ1000-B4) KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

560071052
ref: 1

TOOL KIT

€ 88.00

2

56008006
ref: 2

BAG,TOOL

€ 16.50

3

921101014
ref: 3

WRENCH,HOOK

€ 6.00

4

92126002
ref: 4

WRENCH-OPEN END,12X13

€ 7.50

5

921101153
ref: 5

TOOL-WRENCH,OPEN END,

€ 12.50

6

921101147
ref: 6

TOOL-WRENCH,BOX END,2

€ 15.00

7

92111004
ref: 7

BAR-BOX WRENCH

€ 8.00

8

921101015
ref: 8

WRENCH,ALLEN

€ 7.50

9

92128001
ref: 9

GAUGE,FILLER

€ 3.00

10

92112003
ref: 10

PLIERS,150MM

€ 18.00

11

921071052
ref: 11

TOOL-DRIVER

€ 6.50

12

92107007
ref: 12

SCREW DRIVER-#3 SLOT

€ 6.50

13

921061001
ref: 13

GRIP,SCREW DRIVER

€ 7.00

14

92107008
ref: 14

SCREW DRIVER-#3 PHILL

€ 7.00

15

921101148
ref: 15

TOOL-WRENCH,BOX END,2

€ 12.50

16

92108008
ref: 16

WRENCH-SPARK PLUG

€ 12.50

17

921101031
ref: 17

WRENCH,OPEN END 10MM

€ 9.00

18

92104002
ref: 18

LIQUID GASKET

€ 69.50
