HEADLIGHT (KZ1000-B3)

KZ1000B1 KZ1000 LTD 1977 USA CANADA

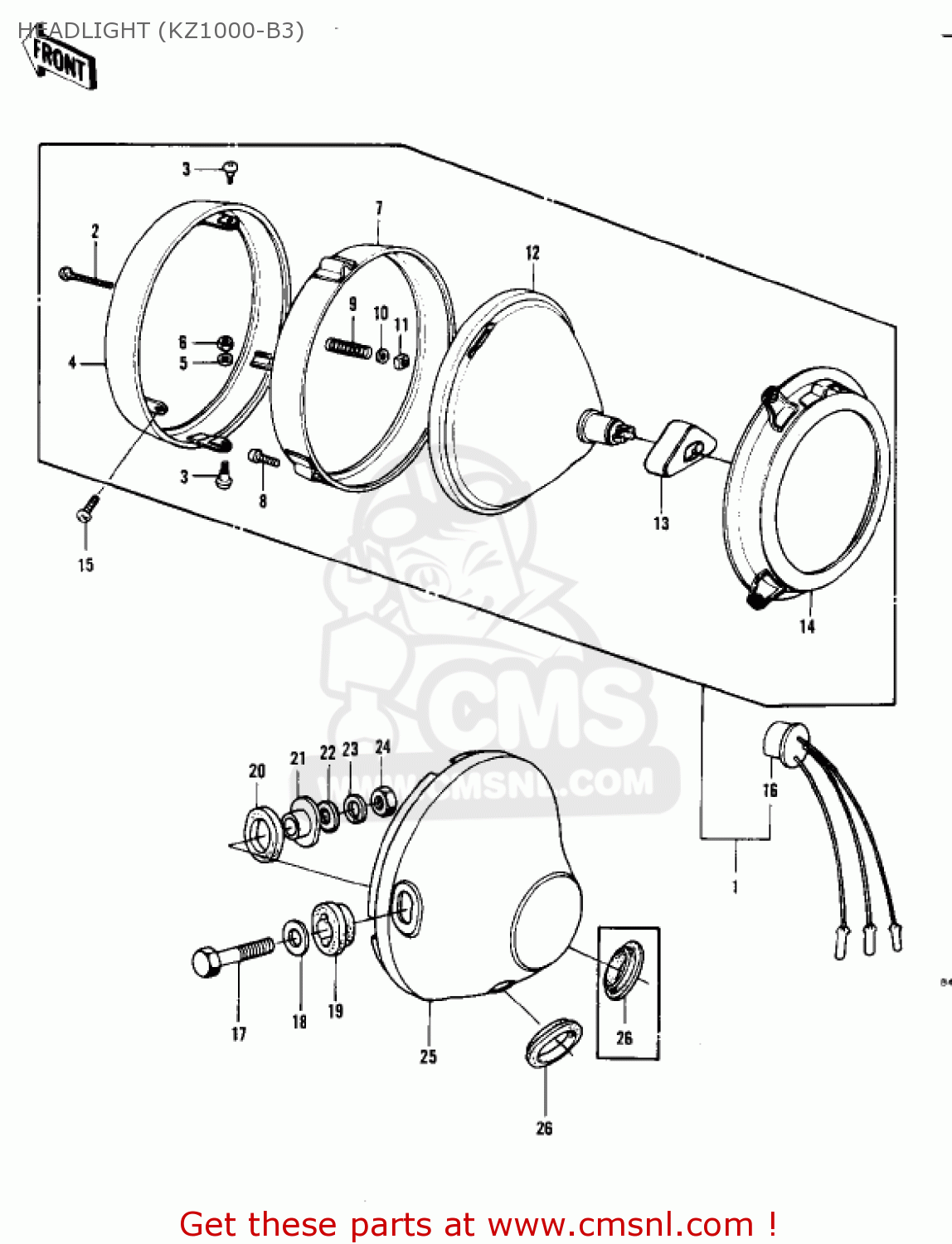

Headlight (kz1000-b3) diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

HEADLIGHT (KZ1000-B3) KZ1000B1 KZ1000 LTD 1977 USA CANADA

HEADLIGHT (KZ1000-B3) KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

230041009
ref: 1

HEADLAMP,UNIT

€ 90.00

2

23019021
ref: 2

SCREW-FORCUS ADJUST

€ 3.00

3

23019023
ref: 3

SCREW-PAN HEAD,5X12

€ 3.50

4

23006038
ref: 4

RIM-LAMP

€ 56.50

5

23021012
ref: 5

WASHER

€ 3.00

6

23020023
ref: 6

NUT,5MM

€ 3.00

6

23020023
ref: 6

NUT,5MM

€ 3.00

7

23072001
ref: 7

RETAINER,HEAD LAMP

€ 26.00

8

220B0312
ref: 8

SCREW-PAN CROS,3X12

€ 2.00

9

23014005
ref: 9

SPRING-FOCUS ADJUST

€ 2.50

10

23021004
ref: 10

WASHER,4.1X8X0.8

€ 2.00

11

23020018
ref: 11

NUT,4MM,FOCUS ADJUST

€ 3.00

12

230071006
ref: 12

SEALED BEAM UNIT

€ 74.50

13

490161009
ref: 13

HEADLAMP DUST COVER

€ 3.50

14

23074001
ref: 14
.

HOLDER,HEAD LAMP

€ 28.00

15

23019022
ref: 15

SCREW-SPECIAL,5X14

€ 1.50

16

23008037
ref: 16

SOCKET-ASSY,HEAD LAMP

€ 12.50

17

92007024
ref: 17

BOLT,10MM

€ 4.50

18

411D1000
ref: 18

WASHER-PLAIN,10MM

€ 3.00

19

23066022
ref: 19

DAMPER

€ 6.00

20

23066021
ref: 20

DAMPER

€ 6.00

21

23052010
ref: 21

COLLAR

€ 28.50

22

410B1000
ref: 22

WASHER-PLAIN-SMALL,10

€ 0.50

23

461F1000
ref: 23

WASHER-SPRING,10MM

€ 0.50

24

315B1000
ref: 24

NUT,10MM

€ 0.50

25

230051016
ref: 25
1 WIRING HOLE

BODY-COMP-HEAD LAMP,C

€ 136.50

25

230051016
ref: 25
2 WIRING HOLES

BODY-COMP-HEAD LAMP,C

€ 136.50

26

920711008
ref: 26
FOR 23005-1012

GROMMET

€ 4.00
