OIL PAN/OIL PUMP/OIL FILTER ('77

KZ1000B1 KZ1000 LTD 1977 USA CANADA

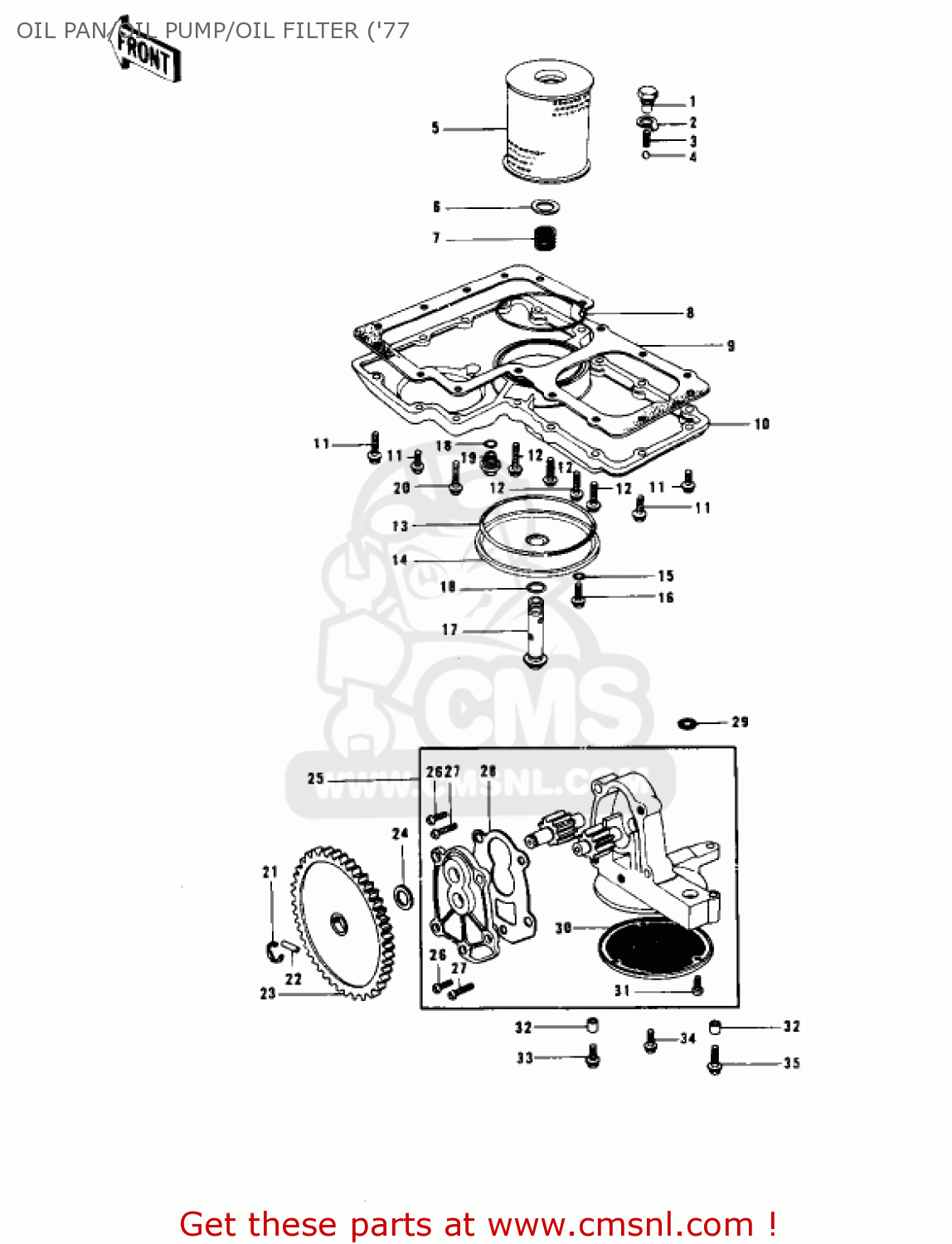

Oil pan/oil pump/oil filter ('77 diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

OIL PAN/OIL PUMP/OIL FILTER ('77 KZ1000B1 KZ1000 LTD 1977 USA CANADA

OIL PAN/OIL PUMP/OIL FILTER ('77 KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92003095
ref: 1

BOLT

€ 10.50

2

92024048
ref: 2

WASHER,LOCK

€ 2.00

3

92081109
ref: 3

SPRING

€ 7.50

4

600A1200
ref: 4

BALL-STEEL,3/8

€ 0.50

5

16099002
ref: 5

ELEMENT-OIL FILTER

€ 13.00

6

920221012
ref: 6

WASHER,20.5X30X1

€ 3.00

7

920811018
ref: 7

SPRING,OIL FILTER

€ 3.00

8

92055052
ref: 8

RING-O,91.6X3.4

€ 6.00

9

110601074
ref: 9

GASKET,OIL PAN (NAS)

€ 37.00

10

490345020
ref: 10

PAN-OIL

€ 165.00

11

130G0625
ref: 11

BOLT,FLANGED,6X25

€ 0.50

12

92003159
ref: 12

BOLT,HEX HEAD,6X34

€ 2.50

13

671B25105
ref: 13

O-ring,105mm

€ 19.50

14

140251112
ref: 14

COVER,OIL FILTER

€ 19.50

15

670B1508
ref: 15

O RING,8MM

€ 1.00

16

92066024
ref: 16

PLUG,30X8

€ 8.00

17

920011074
ref: 17

BOLT,OIL FILTER

€ 43.00

18

670B2022
ref: 18

O RING,22MM

€ 3.00

19

920011183
ref: 19

BOLT,OIL DRAIN

€ 37.50

20

130G0650
ref: 20

BOLT-FLANGED,6X50

€ 1.00

21

482K7000
ref: 21

CIRCLIP-TYPE-E,7MM

€ 2.50

22

551A0314
ref: 22

PIN,DOWEL,3X14

€ 0.50

23

16085019
ref: 23

GEAR-OIL PUMP 49T

€ 70.00

24

92026080
ref: 24

WASHER-LOCK,16MM

€ 3.00

25

160825001
ref: 25

PUMP-ASSY-OIL

€ 585.00

26

220B0618
ref: 26

SCREW-PAN HEAD,6X18

€ 2.50

27

220B0628
ref: 27

SCREW-PAN HEAD,6X28

€ 2.50

28

110091029
ref: 28

GASKET,OIL PUMP (NAS)

€ 6.00

29

92055048
ref: 29

RING-O,OD=18

€ 3.00

30

16111004
ref: 30

FILTER,OIL PUMP

€ 23.50

31

220B0508
ref: 31

SCREW-PAN-CROS,5X8

€ 0.50

32

920431302
ref: 32

PIN,DOWEL,8X10

€ 1.00

33

92001164
ref: 33

BOLT,6X35

€ 3.50

34

92001168
ref: 34

UNAVAILABLE IN PRICE BOOK

€ 0.00

35

92001165
ref: 35

BOLT,HEX HEAD,6X45

€ 3.00
