AIR CLEANER ('79-'80 B3/B4)

KZ1000B1 KZ1000 LTD 1977 USA CANADA

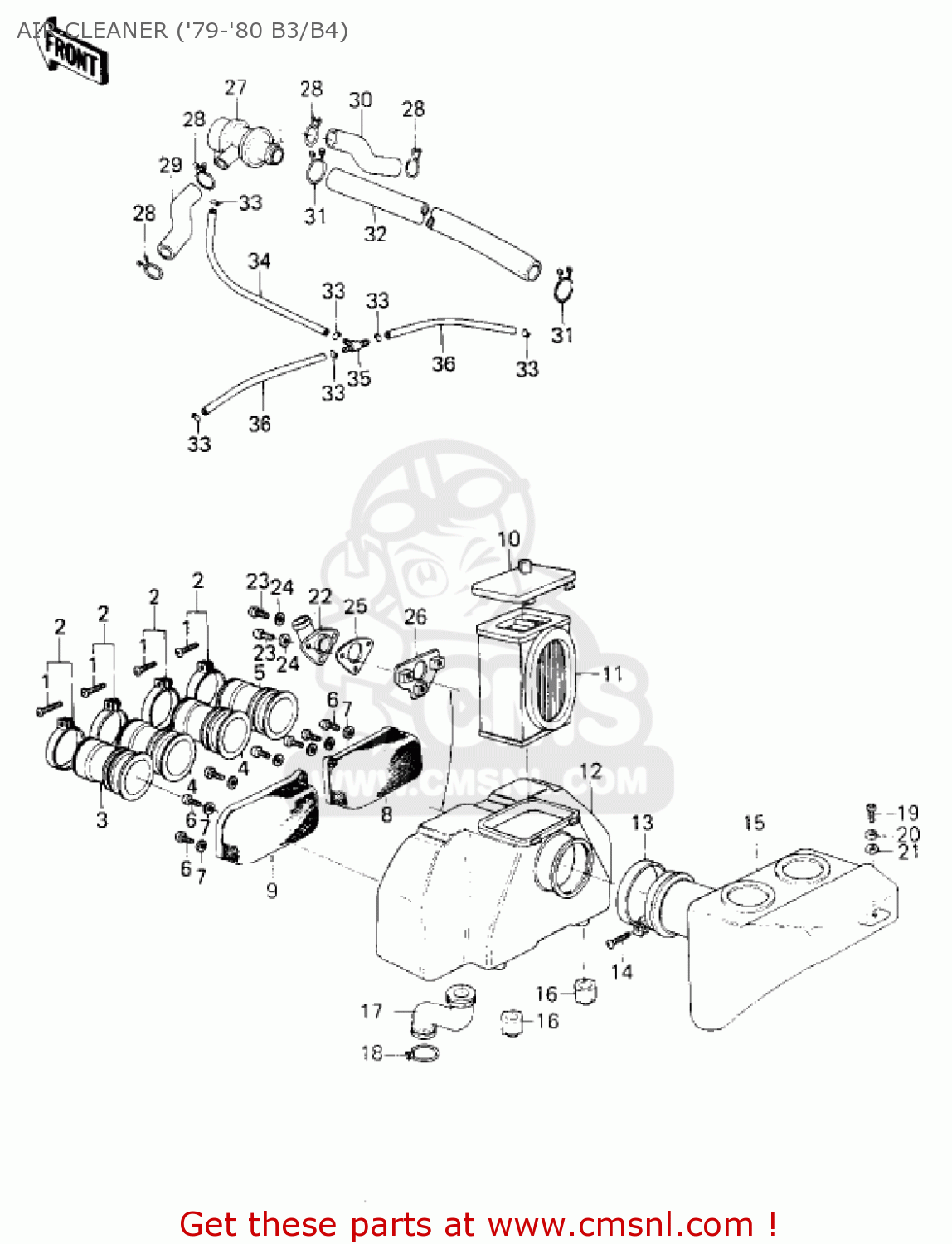

Air cleaner ('79-'80 b3/b4) diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

AIR CLEANER ('79-'80 B3/B4) KZ1000B1 KZ1000 LTD 1977 USA CANADA

AIR CLEANER ('79-'80 B3/B4) KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92011037
ref: 1

SCREW,PAN HEAD 5X25

€ 2.50

2

92037061
ref: 2

CLAMP

€ 10.50

3

140731022
ref: 3
NO 1

DUCT,AIR FILTER

€ 29.00

4

140731023
ref: 4
NO 2,3

DUCT,AIR FILTER

€ 29.00

5

140731024
ref: 5
NO 4

DUCT,AIR FILTER

€ 29.00

6

220C0412
ref: 6

SCREW-PAN-CROS

€ 1.50

7

920221041
ref: 7

WASHER,4.5X8X0.5

€ 2.50

8

11040003
ref: 8

PLATE,CARBURETOR HOLD

€ 18.50

9

11040002
ref: 9

PLATE,CARBURETOR HOLD

€ 128.00

10

11012075
ref: 10

CAP,AIR FILTER

€ 16.50

11

11013063
ref: 11

ELEMENT-AIR FILTER

€ 27.50

12

110111012
ref: 12

AIR CLEANER BODY

€ 64.00

13

92037106
ref: 13

CLAMP

€ 9.00

14

92011036
ref: 14

BOLT,5X50

€ 1.00

15

11016009
ref: 15
KZ1000-B3

SILENCER

€ 50.50

15

391611001
ref: 15
KZ1000-B4

SILENCER

€ 84.00

16

110121083
ref: 16

CAP,DRAIN

€ 7.50

17

92059124
ref: 17

TUBE,DRIN

€ 15.50

18

92037028
ref: 18

CLAMP,TUBE

€ 2.50

19

220B0616
ref: 19

SCREW-PAN HEAD,6X16

€ 2.50

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

410B0600
ref: 21

WASHER-PLAIN-SMALL,6M

€ 0.50

22

920051007
ref: 22

FITTING

€ 6.50

23

220B0616
ref: 23

SCREW-PAN HEAD,6X16

€ 2.50

24

410B0600
ref: 24

WASHER-PLAIN-SMALL,6M

€ 0.50

25

110091054
ref: 25

GASKET (MCA)

€ 3.00

26

130911020
ref: 26

HOLDER

€ 4.50

27

161261005
ref: 27
KZ1000-B3

VALVE,AIR SWITCH

€ 130.50

27

161261014
ref: 27
KZ1000-B4

VALVE,AIR SWITCH

€ 135.50

28

92037213
ref: 28

CLAMP, BREATHER TUBE

€ 2.50

29

920591065
ref: 29

TUBE,LH

€ 7.00

30

920591066
ref: 30

TUBE,RH

€ 7.00

31

920371076
ref: 31

CLAMP,TUBE

€ 4.00

32

920591067
ref: 32

TUBE

€ 10.50

33

92037072
ref: 33

CLAMP,TUBE

€ 4.00

34

920591162
ref: 34

TUBE, VACUUM, LONG

€ 12.50

35

920051017
ref: 35

FITTING,TUBE

€ 6.50

36

920591162
ref: 36

TUBE, VACUUM, LONG

€ 12.50
