FRAME/FRAME FITTINGS ('77-'78 B1

KZ1000B1 KZ1000 LTD 1977 USA CANADA

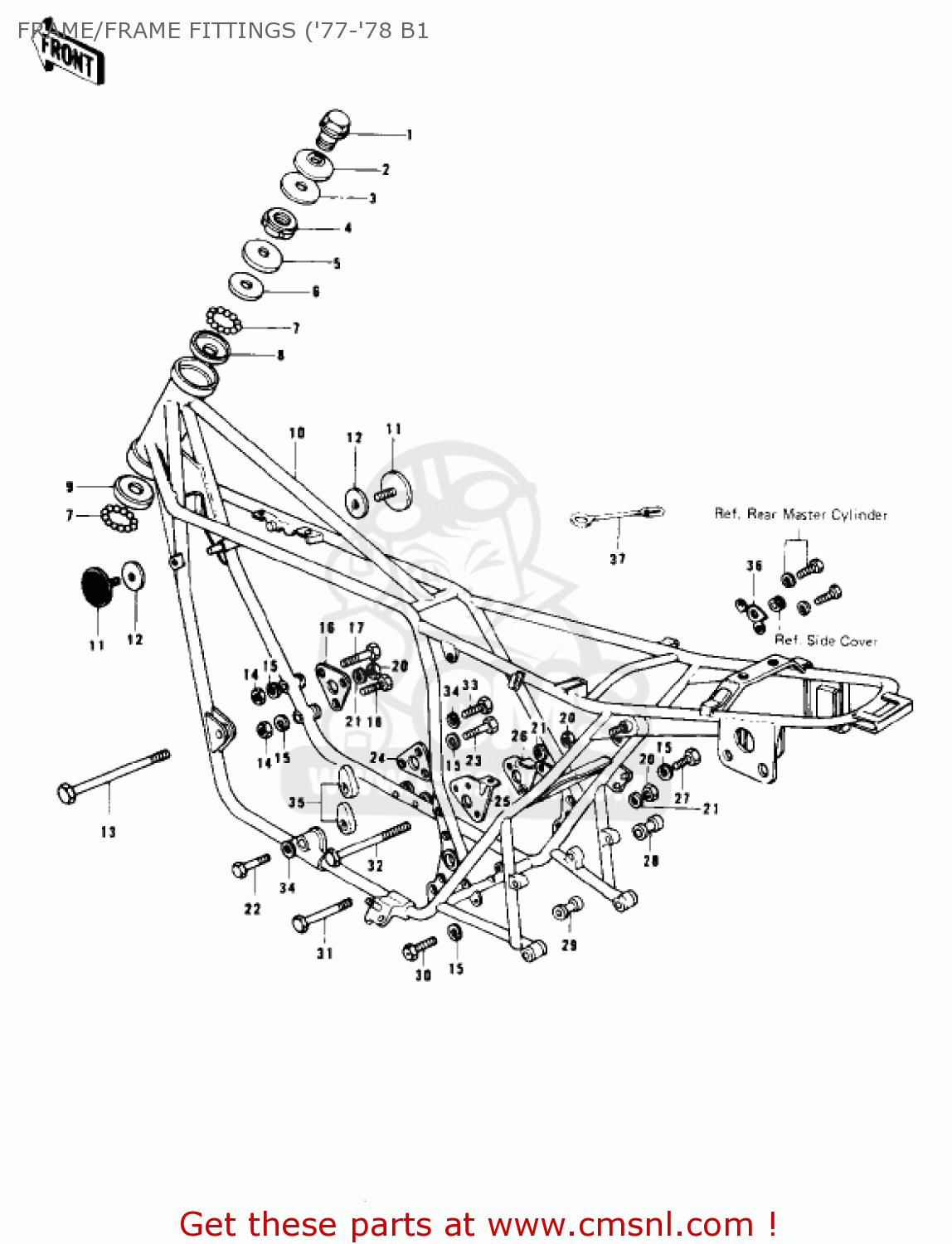

Frame/frame fittings ('77-'78 b1 diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

FRAME/FRAME FITTINGS ('77-'78 B1 KZ1000B1 KZ1000 LTD 1977 USA CANADA

FRAME/FRAME FITTINGS ('77-'78 B1 KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

92007031
ref: 1

BOLT-STEERG STEM HEAD

€ 17.50

2

92022230
ref: 2

WASHER-STEERG STM HD

€ 7.50

3

46100002
ref: 3

WASHER-WAVE

€ 7.00

4

92090007
ref: 4

NUT-STEERING STEM LCK

€ 8.00

5

46098016
ref: 5

CAP,STEERING STEM

€ 4.00

6

92047011
ref: 6

CONE-STRNG STM BRNG

€ 14.50

7

600A0800
ref: 7

BALL-STEEL,1/4

€ 0.50

8

92048006
ref: 8

RACE-STRNG BEARIN-STE

€ 11.50

9

92048008
ref: 9

RACE-STRNG STM BRNG

€ 16.00

10

320021003
ref: 10

FRAME

€ 765.50

11

28012016
ref: 11

REFLECTOR REFLEX

€ 16.00

12

92094011
ref: 12

DAMPER,REFLECTOR

€ 3.00

13

92091022
ref: 13
310 MM

BOLT-ENGINE MOUNTING

€ 18.50

14

311B0800
ref: 14

NUT,8MM

€ 0.50

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

32030025
ref: 16

BRACKET-ENGINE,FR

€ 11.50

17

920011397
ref: 17

BOLT,8X63

€ 1.50

18

110G0859
ref: 18

BOLT,HEX HEAD,8X59

€ 3.50

20

92019021
ref: 20

NUT,LOCK,10M/M

€ 2.00

21

461F1000
ref: 21

WASHER-SPRING,10MM

€ 0.50

22

920011262
ref: 22

BOLT,HEX HEAD,12X55

€ 6.00

23

115G0818
ref: 23

BOLT SMALL-UPSET

€ 2.50

24

32030026
ref: 24

BRACKET-ENGINE,LWR

€ 11.50

25

32030066
ref: 25

PLATE, REAR ENGINE

€ 10.50

26

32030067
ref: 26

PLATE, REAR ENGINE

€ 10.50

27

920011578
ref: 27

BOLT,FLANGED,8X40

€ 4.00

28

92027160
ref: 28
L = 31 MM

COLLAR,L=30.5

€ 7.00

29

92027159
ref: 29
L = 52 MM

COLLAR-ENG MOUNTING

€ 21.00

30

920011577
ref: 30

BOLT,FLANGED,8X35

€ 2.50

31

92003099
ref: 31
L = 165 MM

BOLT-ENGINE MOUNTING

€ 16.50

32

92091023
ref: 32
L = 250 MM

BOLT-ENGINE MOUNTING

€ 15.50

33

920011265
ref: 33

BOLT,HEX HEAD,12X70

€ 4.50

34

461F1200
ref: 34

WASHER-SPRING,12MM

€ 0.50

35

92016045
ref: 35

NUT,12MM

€ 13.50

36

32049101
ref: 36

BRACKET, SIDE COVER

€ 2.50

37

92037134
ref: 37

CLAMP,OVER FLOW PIPE

€ 7.50
