HANDLEBAR ('77-'78 B1/B2)

KZ1000B1 KZ1000 LTD 1977 USA CANADA

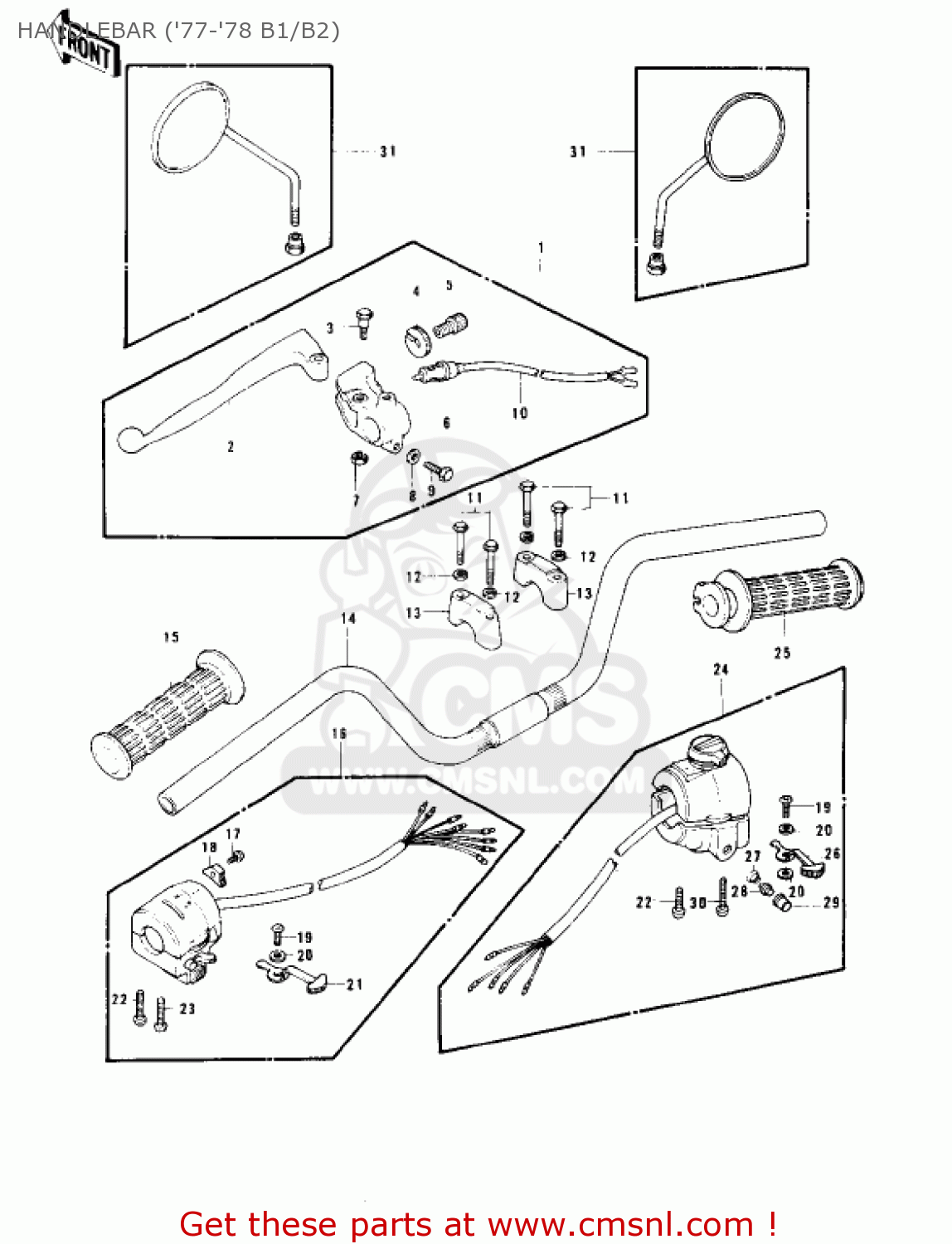

Handlebar ('77-'78 b1/b2) diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

HANDLEBAR ('77-'78 B1/B2) KZ1000B1 KZ1000 LTD 1977 USA CANADA

HANDLEBAR ('77-'78 B1/B2) KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

46076054
ref: 1

LEVER-ASSY-GRIP,CLUTC

€ 101.00

2

46092023
ref: 2

LEVER-GRIP,CLUTCH

€ 17.00

3

92007047
ref: 3

BOLT,HEX HEAD

€ 6.50

4

46056007
ref: 4

NUT,CABLE ADJUST LOCK

€ 9.00

5

46055003
ref: 5

SCREW-CABLE ADJUST

€ 11.50

6

46094019
ref: 6

HOLDER,CLUTCH LEVER

€ 55.00

7

92019008
ref: 7

NUT-LOCK,6MM

€ 3.00

8

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

9

110N0625
ref: 9

BOLT-HEX HEAD,6X25

€ 3.50

10

27043002
ref: 10

SWITCH,CLUTCH

€ 21.00

11

920011405
ref: 11

BOLT,8X38

€ 10.00

12

461F0800
ref: 12

WASHER-SPRING,8MM

€ 0.50

13

46012008
ref: 13

HOLDER-HANDLE,UPP

€ 23.00

14

460031002
ref: 14

HANDLEBAR

€ 58.00

15

46075028
ref: 15

GRIP,LH

€ 32.00

16

46091055
ref: 16

CASE ASSY, L.H

€ 70.00

17

221B0308A
ref: 17

SCREW-CNTSNK HD,3X8

€ 2.50

18

46044013
ref: 18

KNOB,LIGHTING SWITCH,

€ 8.00

19

220B0305A
ref: 19

SCREW-PAN HEAD,3X5

€ 1.00

20

92095010
ref: 20

WASHER

€ 2.50

21

46043005
ref: 21

KNOB-LIGHTING SW L.H

€ 6.50

22

220B0530
ref: 22

SCREW-PAN-CROS

€ 2.00

23

220B0535
ref: 23

SCREW-PAN-CROS

€ 2.00

24

460911031
ref: 24
KZ1000 B1

HOUSING-ASSY-CONTROL,

€ 163.50

24

460911031
ref: 24
KZ1000 B2

HOUSING-ASSY-CONTROL,

€ 163.50

24

460911038
ref: 24
KZ1000 B2

CASE ASSY, R.H.

€ 75.00

24

460911038
ref: 24
CANADA

CASE ASSY, R.H.

€ 75.00

25

46019038
ref: 25

GRIP-ASSY,THROTTLE

€ 80.50

26

46043004
ref: 26
US

KNOB-LIGHTING SW R.H

€ 3.00

27

270101009
ref: 27

SWITCH ASSY,HORN BUTN

€ 5.50

28

270101009
ref: 28

SWITCH ASSY,HORN BUTN

€ 5.50

29

270101009
ref: 29

SWITCH ASSY,HORN BUTN

€ 5.50

30

220B0540
ref: 30

SCREW-PAN-CROS

€ 2.00

31

560015008
ref: 31

MIRROR-ASSY,LH&RH

€ 102.00
