METERS/IGNITION SWITCH ('77-'78

KZ1000B1 KZ1000 LTD 1977 USA CANADA

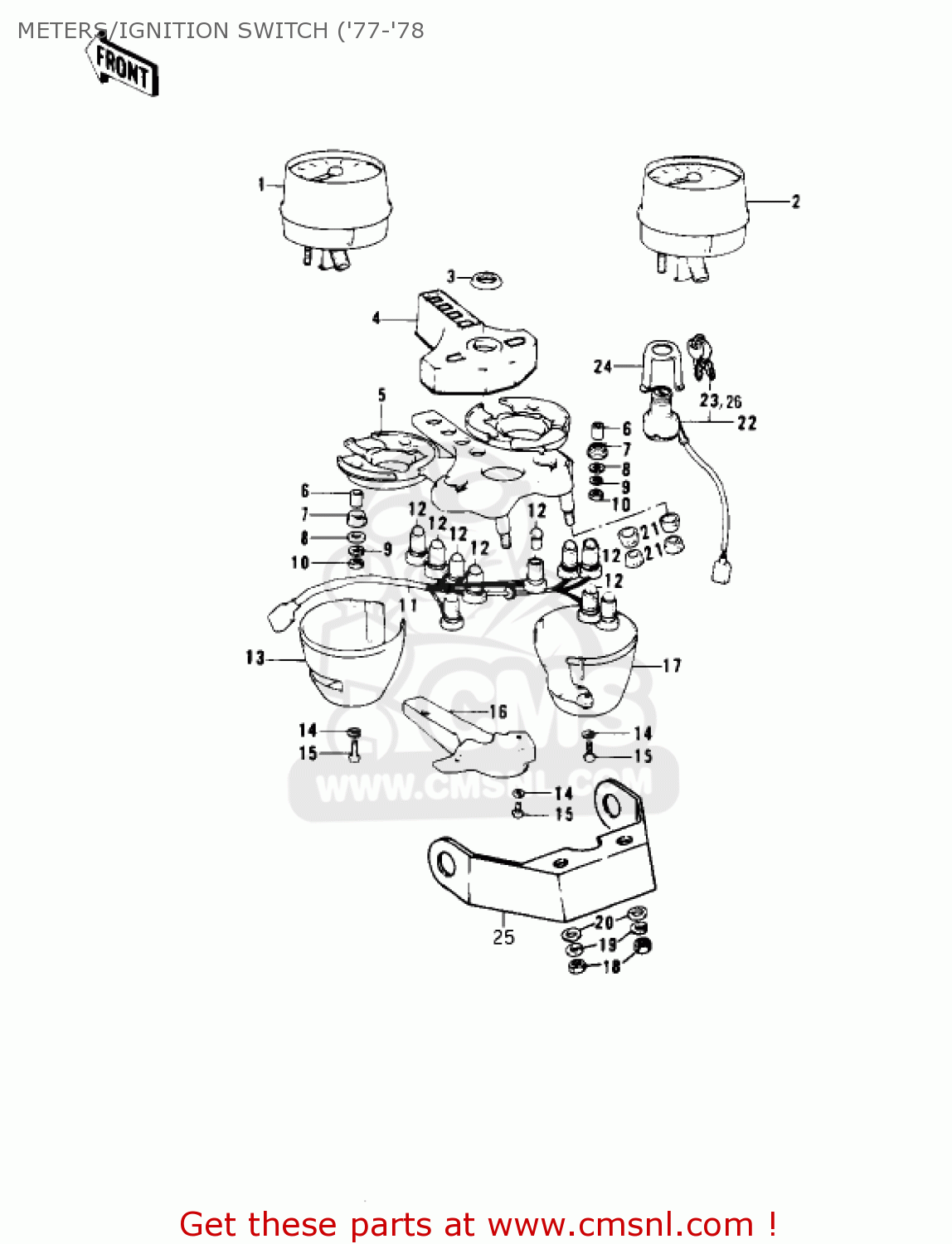

Meters/ignition switch ('77-'78 diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

METERS/IGNITION SWITCH ('77-'78 KZ1000B1 KZ1000 LTD 1977 USA CANADA

METERS/IGNITION SWITCH ('77-'78 KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

250051031
ref: 1

SPEEDOMETER ASSY,MPH

€ 502.00

1

25006056
ref: 1
CANADA

SPEEDOMETER ASSY,KPH

€ 760.00

2

250151010
ref: 2
KZ1000-B1

TACHOMETER

€ 465.50

2

250151010
ref: 2
KZ1000-B2

TACHOMETER

€ 465.50

3

27007004
ref: 3

NUT,IGNITION SWITCH

€ 8.00

4

25023015
ref: 4

COVER-METER CASE

€ 98.00

5

25008045
ref: 5

BRACKET,SPEEDOMETER

€ 156.00

6

92027211
ref: 6

COLLAR,5.6X8X13.8

€ 8.50

7

92075172
ref: 7

DAMPER

€ 12.50

8

92022241
ref: 8

WASHER,5.2X15X1.6

€ 2.50

9

461F0500
ref: 9

WASHER-SPRING,5MM

€ 0.50

10

312B0500
ref: 10

NUT-HEX,5MM

€ 0.50

11

25011049
ref: 11

SOCKET,SPEEDOMETER

€ 155.00

12

92069018
ref: 12

BULB 12V 3W

€ 4.00

13

25012023
ref: 13
CHROME

COVER,SPEEDOMETER

€ 205.00

14

461F0300
ref: 14

WASHER-SPRING,3MM

€ 0.50

15

220B0308
ref: 15

SCREW-PAN-CROS

€ 0.50

16

25024006
ref: 16

COVER,METER BRACKET

€ 14.50

17

25012024
ref: 17
CHROME

COVER,TACHOMETER

€ 205.00

18

311B0800
ref: 18

NUT,8MM

€ 0.50

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

411B0800
ref: 20

WASHER-PLAIN,8MM

€ 0.50

21

92075080
ref: 21

DAMPER

€ 5.50

22

27005092
ref: 22

SWITCH ASSY, IGNITION

€ 115.00

23

2700806951
ref: 23

KEY SET,#751

€ 34.50

23

2700806995
ref: 23

KEY SET,#795

€ 34.50

24

27019003
ref: 24

HOLDER,IGNITION SWITC

€ 10.50

25

23064030
ref: 25

HEADLAMP BRACKET

€ 59.50

26

270081013
ref: 26

KEY-LOCK,BLANK

€ 12.00
