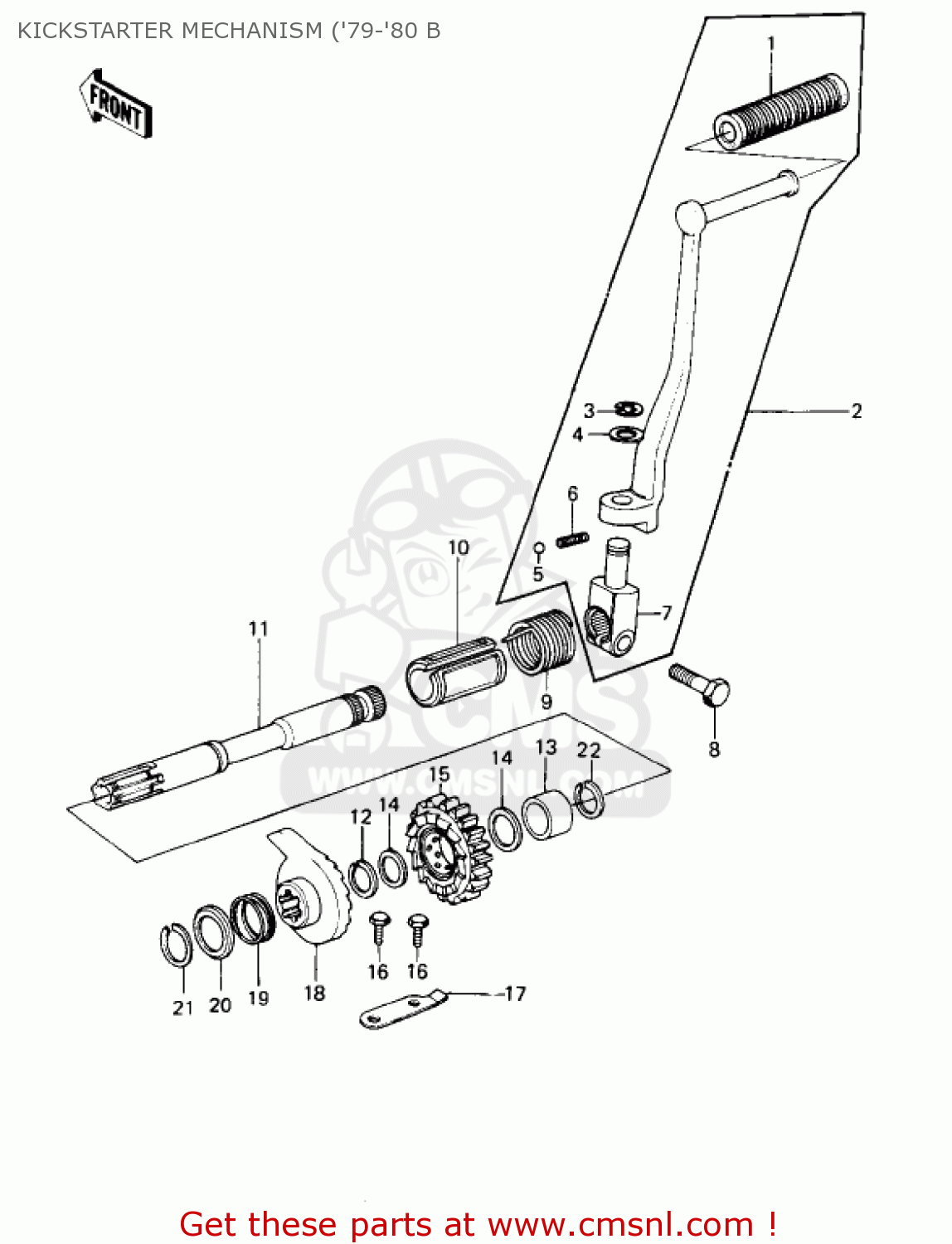

KICKSTARTER MECHANISM ('79-'80 B

KZ1000B1 KZ1000 LTD 1977 USA CANADA

Kickstarter mechanism ('79-'80 b diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

KICKSTARTER MECHANISM ('79-'80 B KZ1000B1 KZ1000 LTD 1977 USA CANADA

KICKSTARTER MECHANISM ('79-'80 B KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

13063004
ref: 1

DAMPER,KICK PEDAL

€ 6.50

2

13058044
ref: 2

LEVER-KICK

€ 187.50

3

482J0100
ref: 3

CIRCLIP-TYPE-E,10MM

€ 0.50

4

92022085
ref: 4

WASHER,15.3X24X1.2

€ 2.50

5

600A0800
ref: 5

BALL-STEEL,1/4

€ 0.50

6

92081020
ref: 6

SPRING-KICK PEDAL

€ 2.50

7

13061014
ref: 7

BOSS-KICK PEDAL

€ 59.00

8

114B1025
ref: 8

BOLT-HEX HEAD,10X25

€ 2.50

9

92082004
ref: 9

SPRING-KICKSTARTER

€ 12.50

10

130701008
ref: 10

GUIDE,KICK SPRING

€ 7.00

11

130661004
ref: 11

SHAFT-KICK

€ 85.00

12

92033025
ref: 12

CIRCLIP,25MM

€ 3.00

13

92028126
ref: 13

COLLAR,KICKSHAFT

€ 20.00

14

92022207
ref: 14

WASHER-PLAIN,22MM

€ 2.50

15

590511006
ref: 15

GEAR,KICKSTARTER

€ 61.50

16

112G0614
ref: 16

BOLT-UPSET,6X14

€ 2.50

17

13072012
ref: 17

STOPPER,KICKSTARTER

€ 7.00

18

13078011
ref: 18

RATCHET

€ 58.50

19

92081104
ref: 19

SPRING-RATCHET

€ 6.50

20

92102008
ref: 20

CAP-KICKSTARTER

€ 4.00

21

480J1900
ref: 21

CIRCLIP-TYPE-C,19MM

€ 1.00

22

92033025
ref: 22
KZ1000-B3

CIRCLIP,25MM

€ 3.00

22

480J2200
ref: 22
KZ1000-B4

CIRCLIP-TYPE-C,22MM

€ 3.00
