CARBURETOR PARTS (KZ1000-B1)

KZ1000B1 KZ1000 LTD 1977 USA CANADA

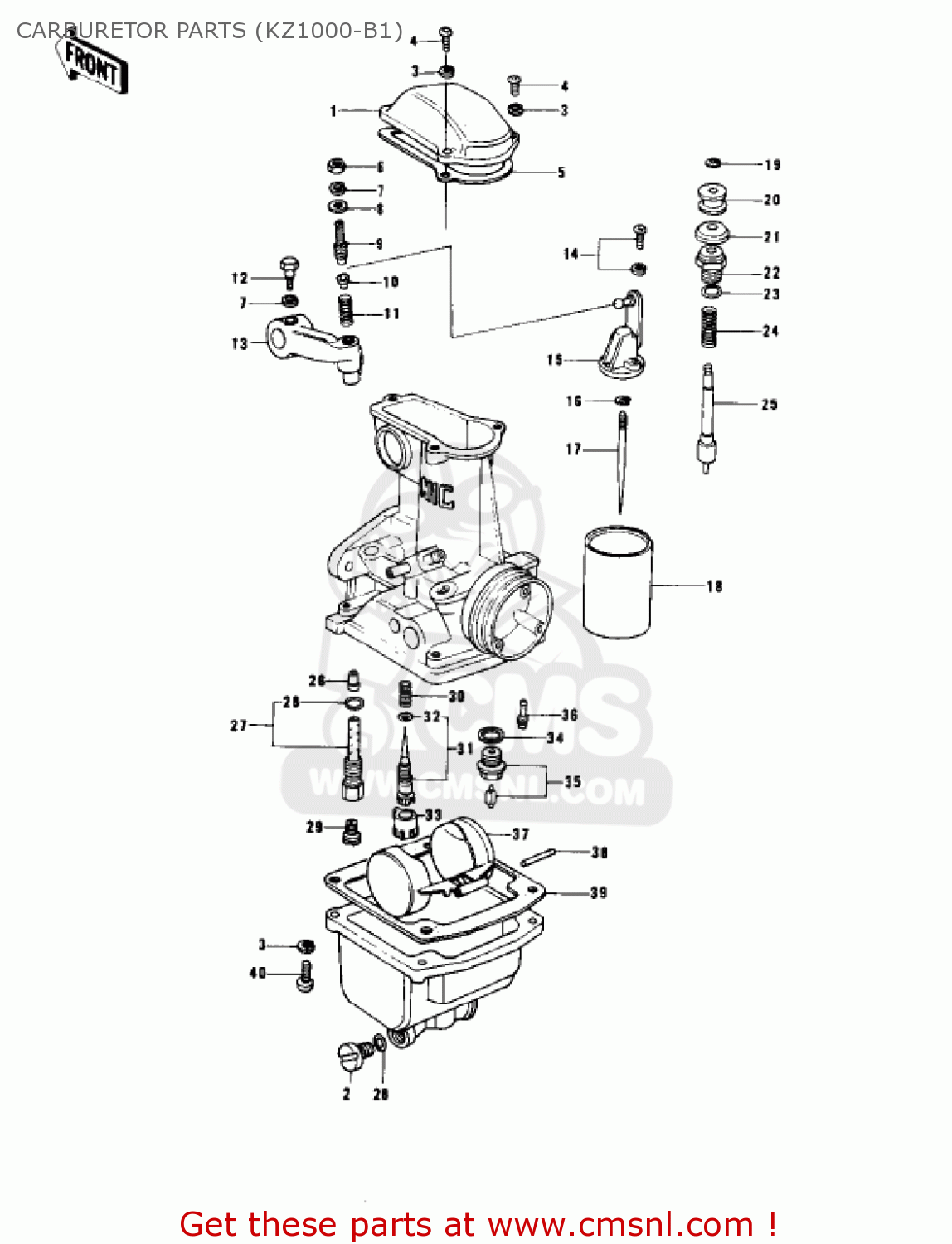

Carburetor parts (kz1000-b1) diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

CARBURETOR PARTS (KZ1000-B1) KZ1000B1 KZ1000 LTD 1977 USA CANADA

CARBURETOR PARTS (KZ1000-B1) KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

16005027
ref: 1

TOP,MIXING CHAMBER

€ 15.50

2

16049007
ref: 2

SCREW, GUIDE

€ 9.50

3

461F0400
ref: 3

WASHER-SPRING,4MM

€ 0.50

4

223B0414
ref: 4

SCREW PAN-WS-CROS

€ 2.50

5

16019031
ref: 5

GASKET,CHAMBER,TOP (NAS)

€ 24.50

6

16003013
ref: 6

NUT,5M/M

€ 6.00

7

461F0500
ref: 7

WASHER-SPRING,5MM

€ 0.50

8

16039016
ref: 8

WASHER,PLAIN

€ 3.50

9

16046012
ref: 9

SCREW, SLOTTED

€ 13.50

10

16057002
ref: 10

SEAT-SPRING

€ 6.00

11

16040026
ref: 11

SPRING

€ 3.50

12

16067006
ref: 12

BOLT-HEX HEAD,5X14

€ 10.50

13

390751001
ref: 13

LEVER,THROTTLE

€ 25.00

14

16033031
ref: 14

SCREW, PAN HEAD, 3X14

€ 3.50

15

16007028
ref: 15

BRACKET,THROTTLE VALV

€ 41.00

16

16008010
ref: 16

CLAMP,E-TYPE

€ 5.00

17

16009071
ref: 17

NEEDLE-JET,5DL3

€ 29.50

18

16025085
ref: 18

VALVE,THROTTLE, CA1.5

€ 61.00

19

16076003
ref: 19

CLAMP

€ 4.50

20

16073014
ref: 20

COLLAR,STARTER PLUNGE

€ 5.50

21

16039015
ref: 21

CAP,STARTER PLUNGER

€ 4.50

22

16012015
ref: 22

CAP-STARTER PLUNGER

€ 8.50

23

670B1509
ref: 23

O RING,9MM

€ 1.00

24

16013008
ref: 24

SPRING-STARTER PLUNG

€ 4.50

25

16016021
ref: 25

PLUNGER,STARTER

€ 26.00

26

160171034
ref: 26

JET-NEEDLE,AO-5

€ 38.00

27

16047006
ref: 27

BLEED PIPE

€ 34.00

28

16038016
ref: 28

GASKET,O-RING

€ 2.50

29

920631042
ref: 29

JET-MAIN,#A105R

€ 10.50

29

920631028
ref: 29
OPTION

JET-MAIN,#A102.5R

€ 10.00

29

92063073
ref: 29
OPTION

JET-MAIN,#107.5R

€ 9.50

29

920631038
ref: 29

JET-MAIN,#A110

€ 10.50

29

92063075
ref: 29

MAIN JET,#112.5R

€ 10.00

30

16022016
ref: 30

SPRING, PILOT SCREW

€ 6.00

31

16014018
ref: 31

SCREW-PILOT AIR

€ 19.00

32

16038024
ref: 32

O RING

€ 1.00

33

16012022
ref: 33

CAP, LINTTER

€ 3.50

34

16029004
ref: 34

WASHER-FLOAT VLV SEAT

€ 2.50

35

16030027
ref: 35

VALVE-FLOAT

€ 85.00

36

920641003
ref: 36

PILOT JET,#15

€ 15.00

37

16031031
ref: 37

FLOAT

€ 114.50

38

16032003
ref: 38

FLOAT PIN

€ 4.00

39

110091563
ref: 39

GASKET,FLOAT CHAMBER (NAS)

€ 14.00

40

220B0416
ref: 40

SCREW-PAN-CROS

€ 2.00
