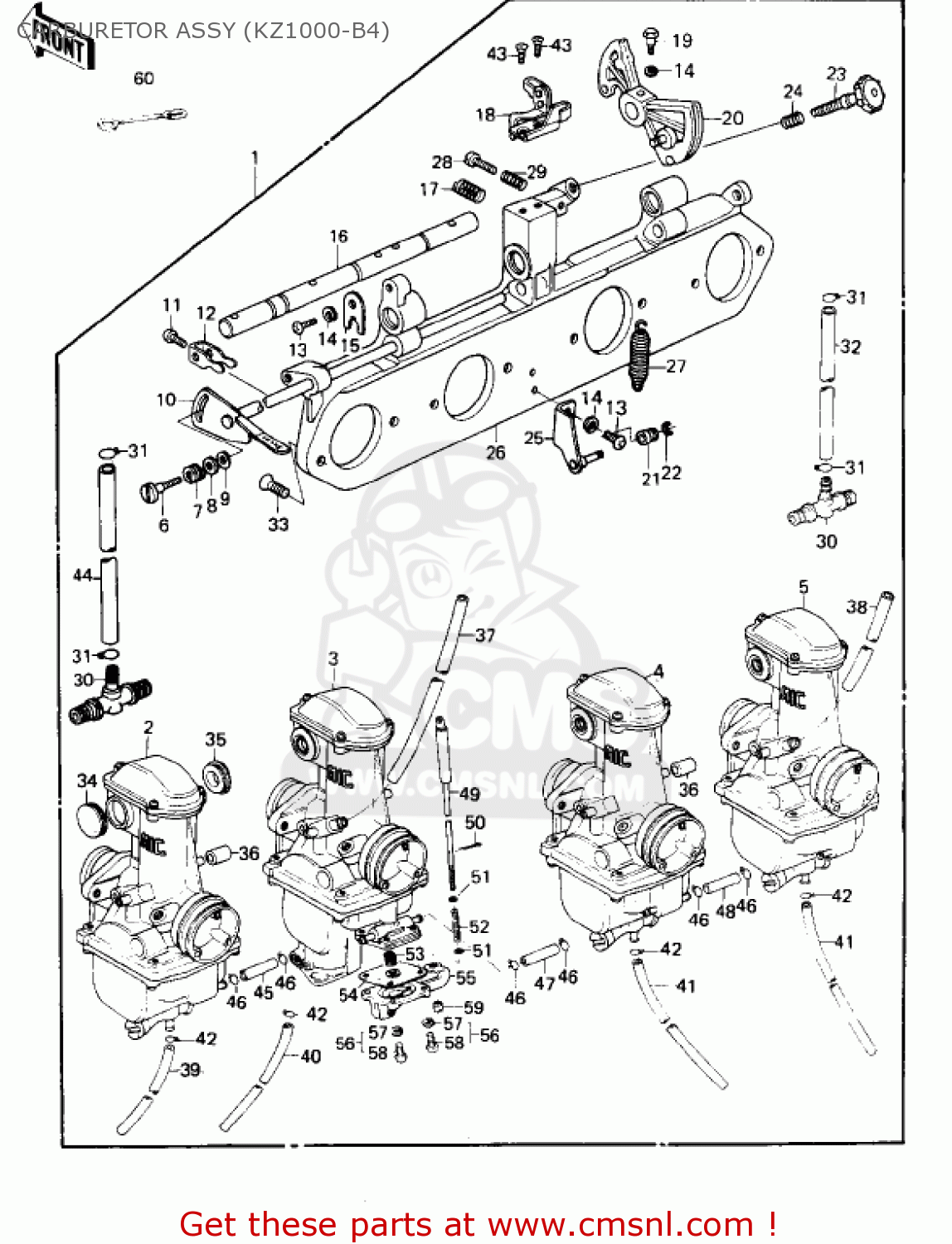

CARBURETOR ASSY (KZ1000-B4)

ref

part #

description

quantity

1

160011202
ref: 1

CARBURETOR ASSEMBLY

€ 863.50

2

160011227
ref: 2

CARBURETOR,OUTSIDE,LH

€ 326.50

3

160011231
ref: 3
INCLUDES REF #'S 53-

CARBURETOR,INSIDE,LH

€ 253.50

4

160011232
ref: 4

CARBURETOR,INSIDE,RH

€ 266.50

5

160011230
ref: 5

CARBURETOR,OUTSIDE,RH

€ 253.50

6

16046005
ref: 6

SCREW

€ 4.50

7

16040009
ref: 7

SPRING,F

€ 6.50

8

16039020
ref: 8
STEEL

WASHER,PLAIN

€ 3.50

8

410B0500
ref: 8
STEEL

WASHER-PLAIN-SMALL,5M

€ 0.50

9

16039019
ref: 9
NYLON

WASHER-PLAIN

€ 3.00

10

16041021
ref: 10

SHAFT,STARTER PLUNGER

€ 37.50

11

16046007
ref: 11

SCREW,PAN HEAD,5X7

€ 6.50

12

131681026
ref: 12

LEVER,STARTER PLUNGER

€ 13.50

13

220B0514
ref: 13

ACREW-PAN HEAD,5X14

€ 2.50

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

16055012
ref: 15

PLATE,SHAFT STOPPER

€ 7.00

16

16041017
ref: 16

SHAFT,CARB CONNECTION

€ 47.50

17

16040022
ref: 17

SPRING,CABLE PLY BKT

€ 6.00

18

16077017
ref: 18

BRACKET,THROTTLE CABL

€ 41.00

19

16067006
ref: 19

BOLT-HEX HEAD,5X14

€ 10.50

20

132361014
ref: 20

THROTTLE CABLE PULLEY

€ 15.50

21

16073016
ref: 21

RING

€ 8.00

22

482K3000
ref: 22

CIRCLIP-TYPE-E,3MM

€ 2.00

23

160211010
ref: 23

SCREW-THROTTLE STOP

€ 16.00

24

16022017
ref: 24

SPRING, THROTTLE STOP

€ 4.50

25

16077016
ref: 25

BRACKET,THROTTLE CABL

€ 10.00

26

16065049
ref: 26

HOLDER, CARBURETOR

€ 78.50

27

920811028
ref: 27

SPRING,THORTTLE PULLY

€ 41.00

28

160211011
ref: 28

SCREW,ADJUSTER

€ 7.00

29

16022010
ref: 29

SPRING,THROTTLE ADJST

€ 4.50

30

16046002
ref: 30

SCREW,FUEL PIPE

€ 31.50

31

92037056
ref: 31

CLAMP,FUEL TUBE

€ 3.00

32

920591026
ref: 32

HOSE,FUEL,6.5OX11.5O

€ 14.50

33

16033029
ref: 33

SCREW,PAN HEAD,6X14

€ 3.00

33

221B0614
ref: 33

SCREW-CNTSNK HD,6X14

€ 2.50

34

16039042
ref: 34

CAP,RUBBER

€ 9.00

35

92071104
ref: 35

GROMMET,CARBURETOR

€ 16.00

36

92059141
ref: 36

HOSE, 6X11.5X16

€ 9.00

37

920591028
ref: 37

HOSE,AIR VENT,5X8X550

€ 13.00

38

920591028
ref: 38

HOSE,AIR VENT,5X8X550

€ 13.00

39

92059147
ref: 39

HOSE,FUEL OVERFLOW

€ 17.50

40

92059134
ref: 40

HOSE,OVERFLOW

€ 17.50

41

92059134
ref: 41

HOSE,OVERFLOW

€ 17.50

42

92037178
ref: 42

CLAMP

€ 7.00

43

221B0510A
ref: 43

SCREW-CNTSNK HD,5X10

€ 2.50

44

920591059
ref: 44

HOSE,6.50X11.50X100

€ 18.50

45

920591072
ref: 45

TUBE,3.5X7.5X47.5

€ 7.00

46

920371124
ref: 46

CLAMP,TUBE

€ 4.00

47

920591071
ref: 47

TUBE,

€ 14.00

48

920591072
ref: 48

TUBE,3.5X7.5X47.5

€ 7.00

49

461021013
ref: 49
INCLUDES REF #50

PUMP ROD ASSEMBLY

€ 24.00

50

550D1006
ref: 50

COTTER PIN,1.0X6

€ 2.00

51

920221138
ref: 51

PUMP ROD WASHER

€ 2.00

52

920811138
ref: 52

SPRING, PUMP ROD

€ 4.50

53

920811139
ref: 53

PUMP DIAPHRAGM SPRING

€ 2.00

54

430281012
ref: 54

DIAPHRAGM,PUMP

€ 64.50

55

140251139
ref: 55

PUMP COVER ASSEMBLY

€ 40.50

56

223B0414
ref: 56

SCREW PAN-WS-CROS

€ 2.50

57

461F0400
ref: 57

WASHER-SPRING,4MM

€ 0.50

58

220B0414
ref: 58

SCREW-PAN-CROS

€ 2.00

59

920151075
ref: 59

NUT, PUMP ROD

€ 5.50

60

92037134
ref: 60

CLAMP,OVER FLOW PIPE

€ 7.50
