FOOTRESTS/STAND ('79-'80 B3/B4)

KZ1000B1 KZ1000 LTD 1977 USA CANADA

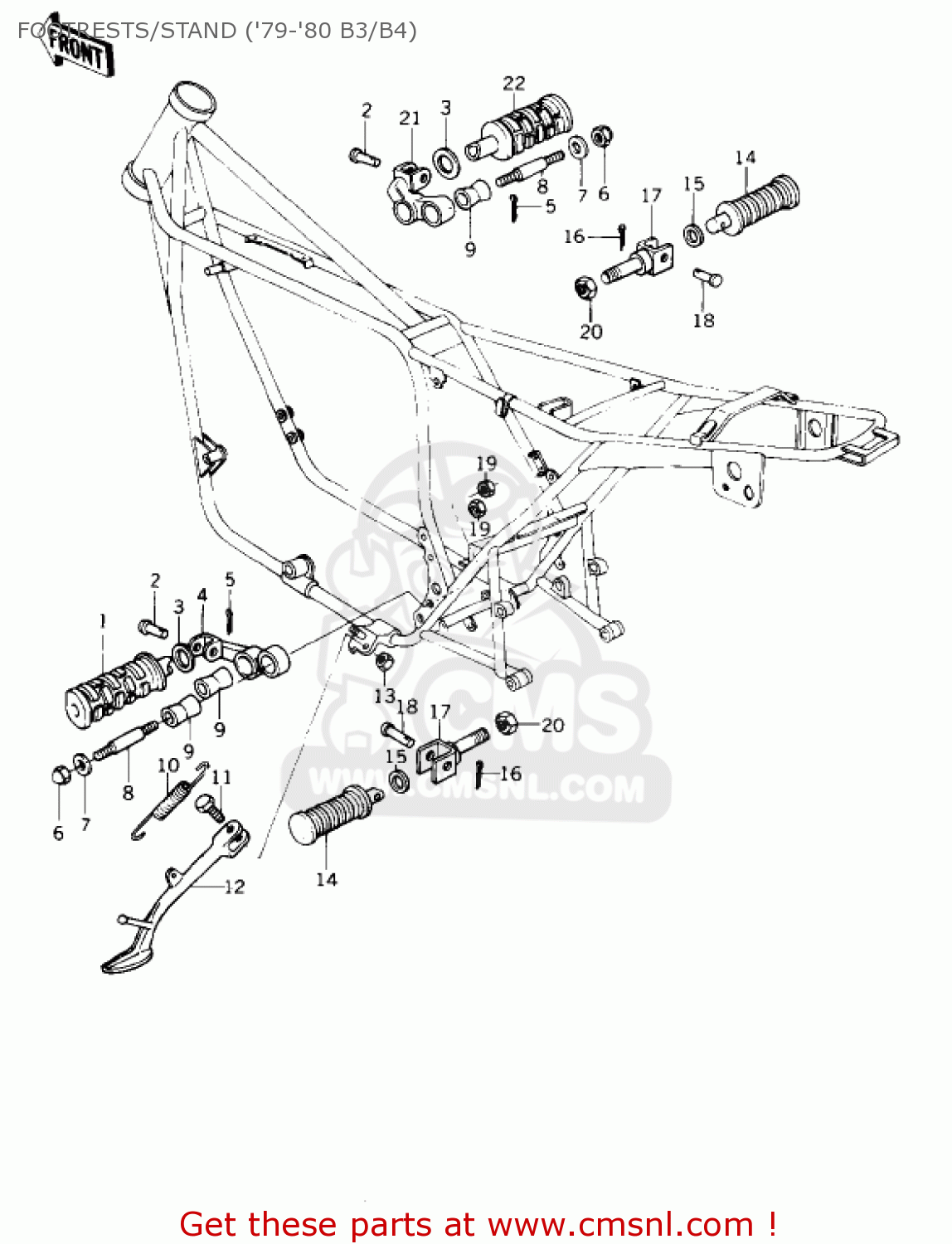

Footrests/stand ('79-'80 b3/b4) diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

FOOTRESTS/STAND ('79-'80 B3/B4) KZ1000B1 KZ1000 LTD 1977 USA CANADA

FOOTRESTS/STAND ('79-'80 B3/B4) KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

34028011
ref: 1

BAR-FOOTREST,L.H

€ 24.50

2

92043080
ref: 2

PIN-FOOTREST BAR FIT

€ 3.50

3

92022250
ref: 3

WASHER,PLAIN

€ 3.00

4

34003036
ref: 4

BRACKET-FOOTREST,L.H

€ 67.50

5

550D2516
ref: 5

PIN-COTTER,2.5X16

€ 1.50

6

92019013
ref: 6

NUT,CAP,LOCK,8MM

€ 5.50

7

92102010
ref: 7

CAP,STEP

€ 4.50

8

92004048
ref: 8

STUD-FOOTREST BAR FIT

€ 8.00

9

92075140
ref: 9

DAMPER,STEP

€ 6.00

10

34025005
ref: 10

SPRING-SIDE STAND

€ 5.00

11

92003079
ref: 11

BOLT-SIDE STAND

€ 7.50

12

34024065
ref: 12

SIDE STAND

€ 254.50

13

315B1000
ref: 13

NUT,10MM

€ 0.50

14

92076027
ref: 14

DAMPER,STEP,RR

€ 19.00

15

92022199
ref: 15

WASHER,20X30X2.3

€ 5.00

16

550D2012
ref: 16

PIN,COTTER,2.0X12

€ 0.50

17

33028011
ref: 17

HOLDER,STEP,RR

€ 16.50

18

920431464
ref: 18

PIN

€ 5.50

19

315B1000
ref: 19

NUT,10MM

€ 0.50

20

315B1200
ref: 20

NUT,12MM

€ 0.50

21

34003037
ref: 21

BRACKET-FOOTREST,R.H

€ 21.00

22

34028012
ref: 22

BAR-FOOTREST,R.H

€ 24.50
