CARBURETOR PARTS (KZ1000-B2)

KZ1000B1 KZ1000 LTD 1977 USA CANADA

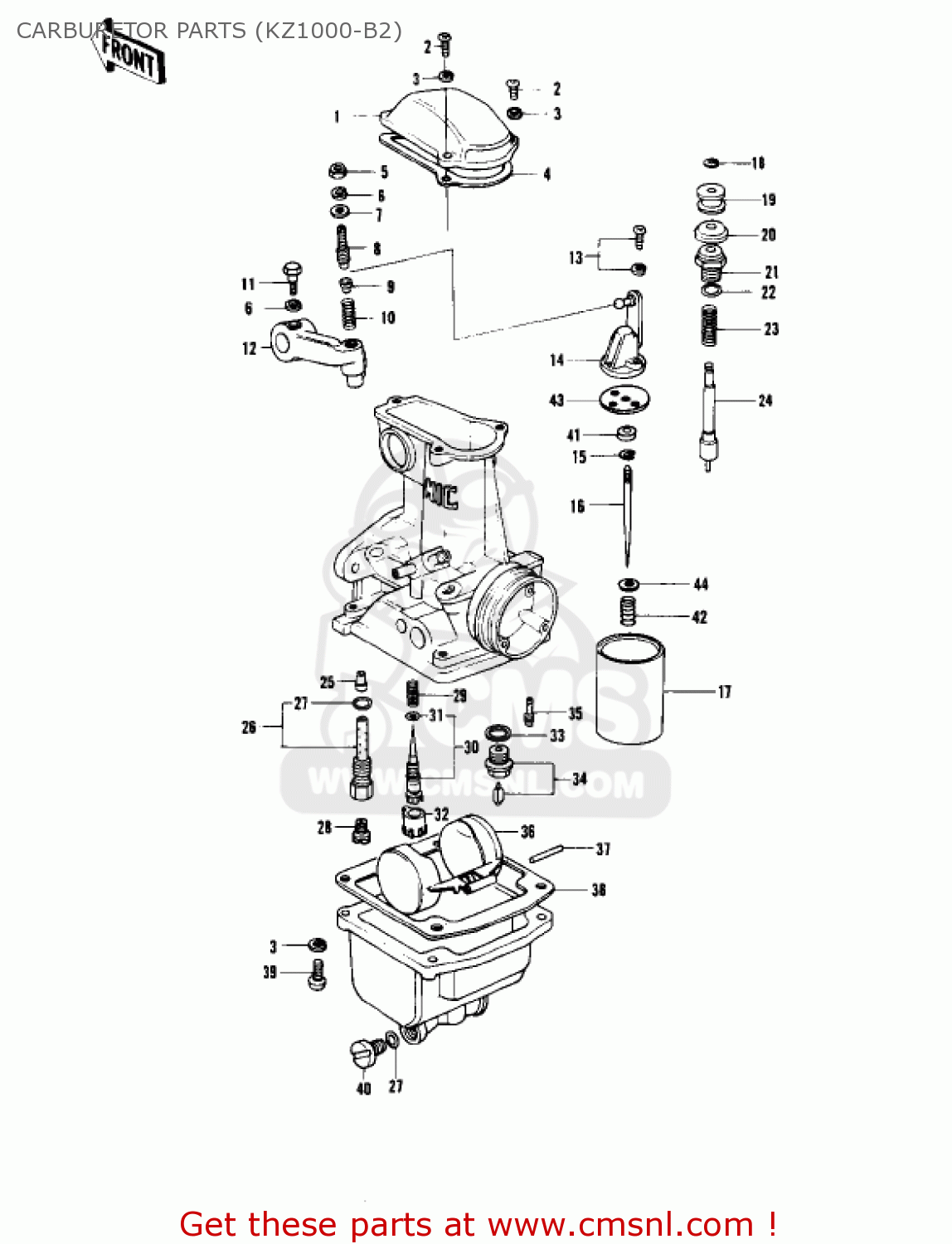

Carburetor parts (kz1000-b2) diagram KZ1000B1 KZ1000 LTD 1977 USA CANADA

CARBURETOR PARTS (KZ1000-B2) KZ1000B1 KZ1000 LTD 1977 USA CANADA

CARBURETOR PARTS (KZ1000-B2) KZ1000B1 KZ1000 LTD 1977 USA CANADA

prices are in EUR

ref

part #

description

quantity

1

16005027
ref: 1

TOP,MIXING CHAMBER

€ 15.50

2

223B0414
ref: 2

SCREW PAN-WS-CROS

€ 2.50

3

461F0400
ref: 3

WASHER-SPRING,4MM

€ 0.50

4

16019031
ref: 4

GASKET,CHAMBER,TOP (NAS)

€ 24.50

5

16003013
ref: 5

NUT,5M/M

€ 6.00

6

461F0500
ref: 6

WASHER-SPRING,5MM

€ 0.50

7

16039016
ref: 7

WASHER,PLAIN

€ 3.50

8

16046012
ref: 8

SCREW, SLOTTED

€ 13.50

9

16057002
ref: 9

SEAT-SPRING

€ 6.00

10

16040026
ref: 10

SPRING

€ 3.50

11

16067006
ref: 11

BOLT-HEX HEAD,5X14

€ 10.50

12

390751001
ref: 12

LEVER,THROTTLE

€ 25.00

13

16033031
ref: 13

SCREW, PAN HEAD, 3X14

€ 3.50

14

110341238
ref: 14

THROTTLE VALVE BRACKET

€ 29.00

15

16008010
ref: 15

CLAMP,E-TYPE

€ 5.00

16

160091014
ref: 16

JET,NEEDLE,5CN7

€ 19.00

17

160251014
ref: 17

THROTTLE VALVE,CA2.0

€ 67.00

18

16076003
ref: 18

CLAMP

€ 4.50

19

16073014
ref: 19

COLLAR,STARTER PLUNGE

€ 5.50

20

16039015
ref: 20

CAP,STARTER PLUNGER

€ 4.50

21

16012015
ref: 21

CAP-STARTER PLUNGER

€ 8.50

22

670B1509
ref: 22

O RING,9MM

€ 1.00

23

16013008
ref: 23

SPRING-STARTER PLUNG

€ 4.50

24

16016021
ref: 24

PLUNGER,STARTER

€ 26.00

25

160171017
ref: 25

JET,NEEDLE,#AO-3

€ 20.00

26

491221004
ref: 26

BLEED PIPE

€ 17.50

27

16038016
ref: 27

GASKET,O-RING

€ 2.50

28

920631028
ref: 28

JET-MAIN,#A102.5R

€ 10.00

29

16022016
ref: 29

SPRING, PILOT SCREW

€ 6.00

30

16014018
ref: 30

SCREW-PILOT AIR

€ 19.00

31

16038024
ref: 31

O RING

€ 1.00

32

110121041
ref: 32

LIMITER CAP

€ 3.00

33

16029004
ref: 33

WASHER-FLOAT VLV SEAT

€ 2.50

34

16030027
ref: 34

VALVE-FLOAT

€ 85.00

35

920641017
ref: 35

PILOT JET #A15

€ 15.00

36

16031031
ref: 36

FLOAT

€ 114.50

37

16032003
ref: 37

FLOAT PIN

€ 4.00

38

110091563
ref: 38

GASKET,FLOAT CHAMBER (NAS)

€ 14.00

39

220B0416
ref: 39

SCREW-PAN-CROS

€ 2.00

40

16049007
ref: 40

SCREW, GUIDE

€ 9.50

41

920271103
ref: 41

RING,JET NEEDLE

€ 4.50

42

920811072
ref: 42

NEEDLE JET SPRING

€ 2.50

43

131691107
ref: 43

NEEDLE JET PLATE

€ 5.50

44

920221024
ref: 44

WASHER,THROTTLE VALVE

€ 4.50
