KDX125-B3 KDX125SR 1992 FRANCE SD

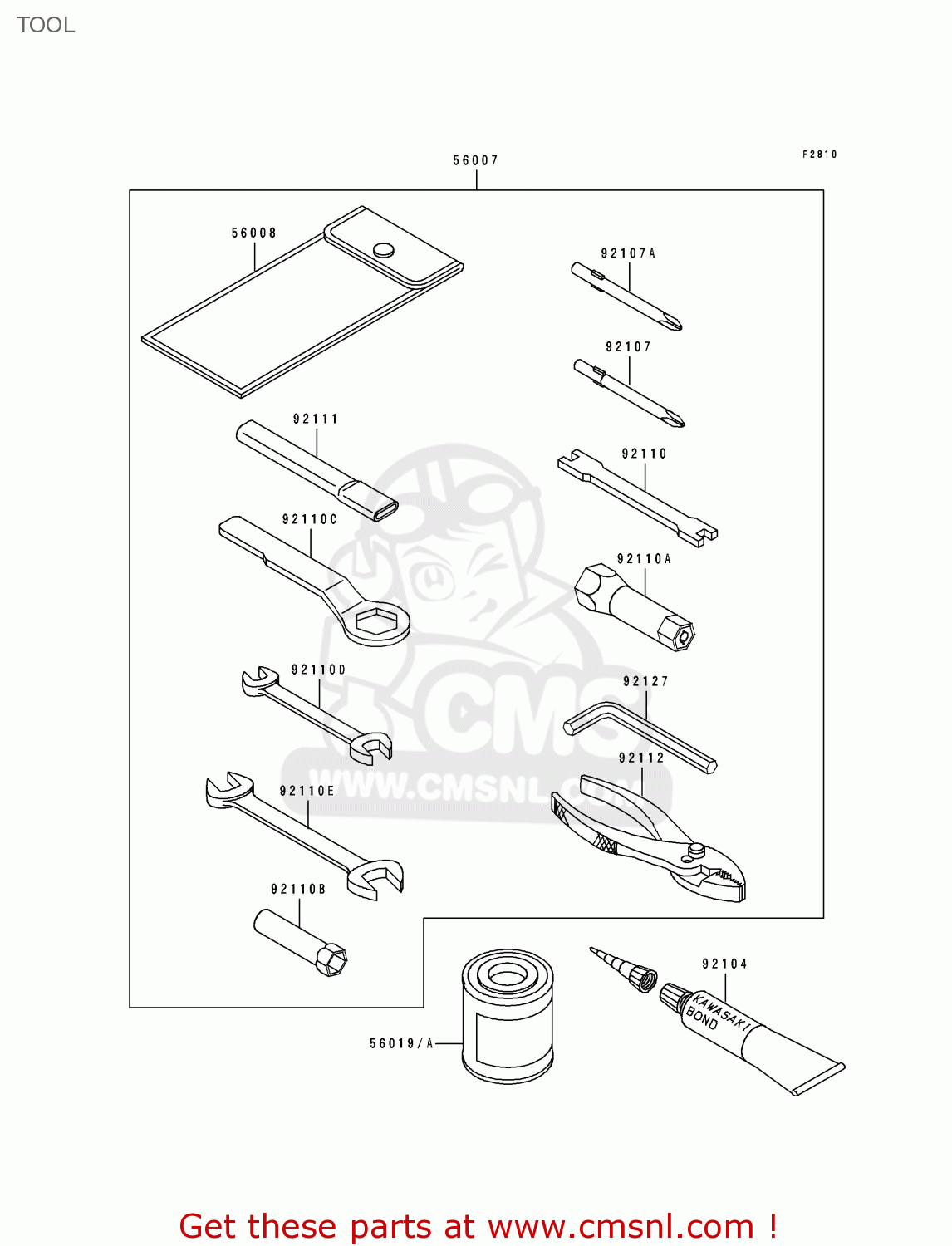

Tool diagram KDX125-B3 KDX125SR 1992 FRANCE SD
TOOL KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
56007
560071354
ref: 56007
TOOL-KIT
€ 74.50
56008
560081019
ref: 56008
BAG,TOOLKIT
€ 12.00
56019
56019108DB
ref: 56019
PAINT,1/12L,BLUE 24
€ 19.00
56019A
560191087F
ref: 56019A
FR
PAINT,L.GREEN,1/12L
€ 26.50
92104
92104002
ref: 92104
LIQUID GASKET
€ 69.50
92107
92107005
ref: 92107
SCREW DRIVER-#3 PHLIP
€ 7.00
92107A
921071053
ref: 92107A
TOOL DRIVER#2PHILLIPS
€ 6.50
92110
921101016
ref: 92110
TOOL-WRENCH,SPOKE
€ 13.00
92110A
921101113
ref: 92110A
TOOL-WRENCH,BOX,21MM
€ 11.00
92110B
921101139
ref: 92110B
TOOL-WRENCH
€ 7.00
92110C
921101150
ref: 92110C
TOOL-WRENCH,BOX END,2
€ 14.50
92110D
921101152
ref: 92110D
TOOL-WRENCH,OPEN END,
€ 13.50
92110E
921101153
ref: 92110E
TOOL-WRENCH,OPEN END,
€ 12.50
92111
921111051
ref: 92111
TOOL-BAR
€ 8.00
92112
92112003
ref: 92112
PLIERS,150MM
€ 18.00
92127
92127003
ref: 92127
TOOL-WRENCH,ALLEN,6MM
€ 7.50
