REAR HUB
KDX125-B3 KDX125SR 1992 FRANCE SD

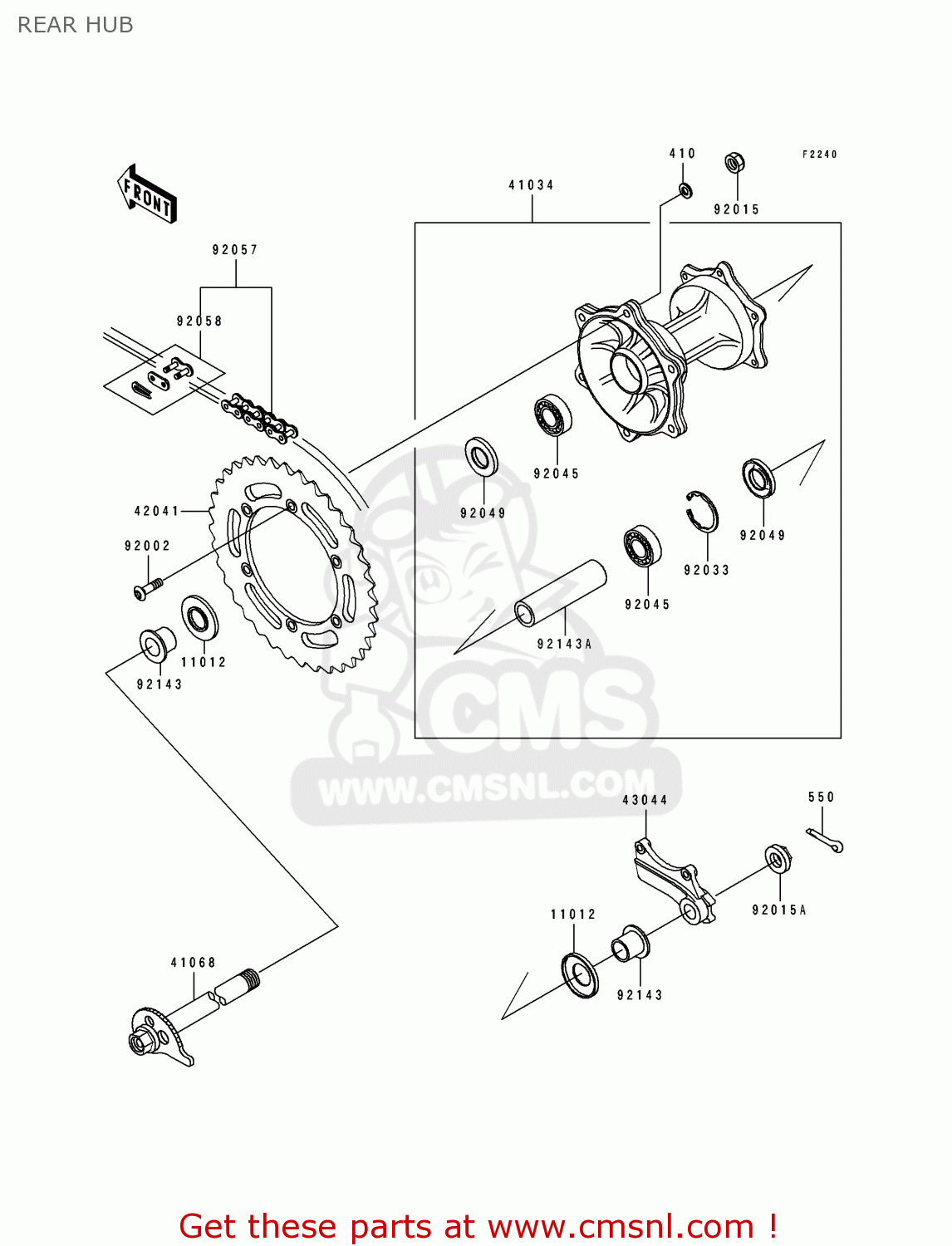

Rear hub diagram KDX125-B3 KDX125SR 1992 FRANCE SD
REAR HUB KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
550
550D3025
ref: 550
PIN-COTTER,3.0X25
€ 0.50
11012
110121581
ref: 11012
CAP,AXLE
€ 4.00
41034
410341216
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 424.50
41068
410681330
ref: 41068
AXLE,RR
€ 55.00
42041
420411350
ref: 42041
SPROCKET-HUB,52T
€ 32.00
43044
430441111
ref: 43044
HOLDER-COMP-CALIPER
€ 117.00
92002
920021387
ref: 92002
BOLT,8MM
€ 4.00
92015
920151432
ref: 92015
NUT,8MM
€ 4.50
92015A
920151724
ref: 92015A
NUT,FLANGED,20MM
€ 10.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92045
920451239
ref: 92045
BEARING-BALL,6004X8JR
€ 30.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92057
920571331
ref: 92057
CHAIN,DRIVE,EK428SH-R
€ 34.00
92058
920581058
ref: 92058
JOINT-CHAIN
€ 5.50
92143
921431356
ref: 92143
COLLAR,RR AXLE,L=20
€ 25.50
92143A
921431402
ref: 92143A
COLLAR,RR BRAKE DRUM,
€ 10.50
