IGNITION SWITCH
KDX125-B3 KDX125SR 1992 FRANCE SD

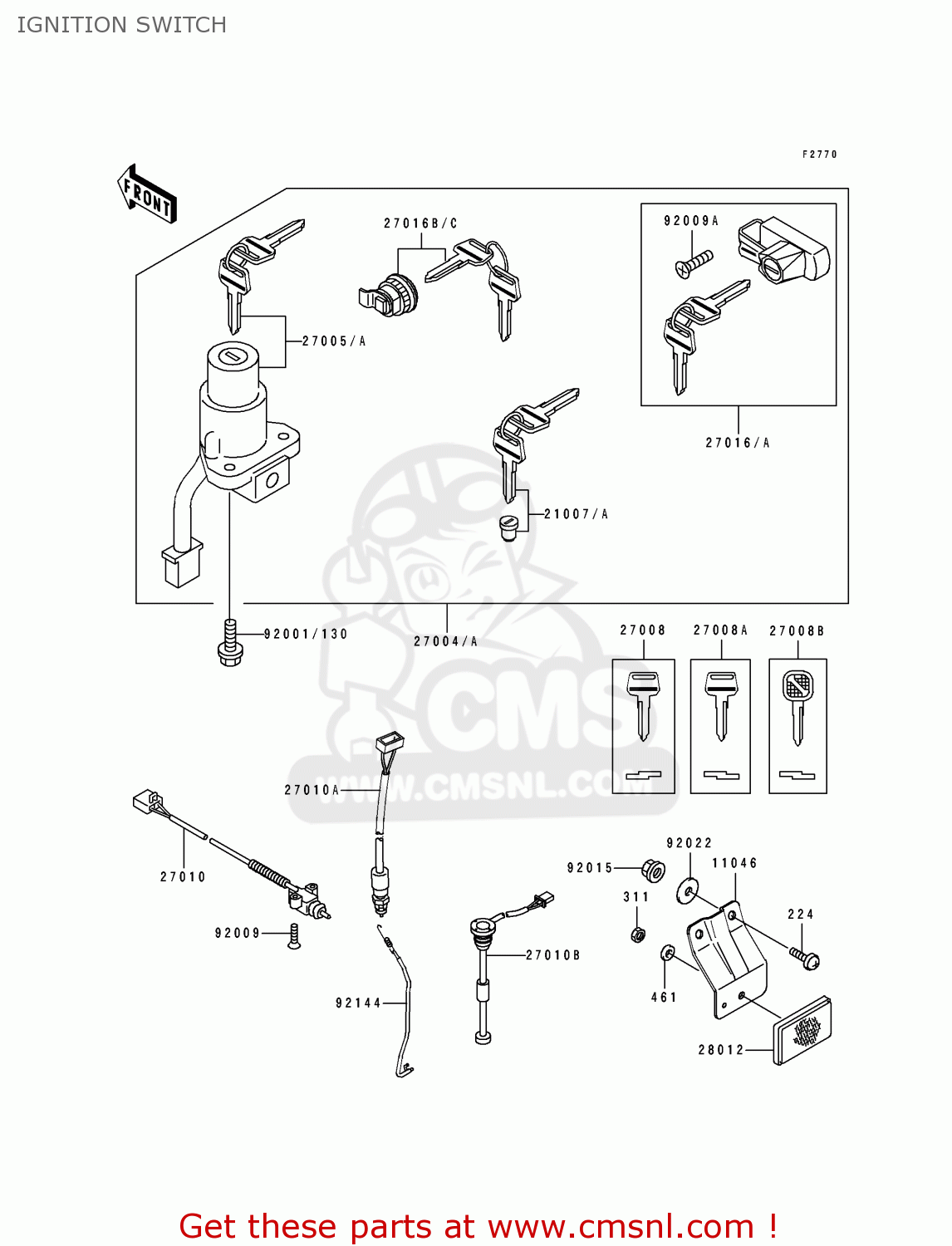

Ignition switch diagram KDX125-B3 KDX125SR 1992 FRANCE SD
IGNITION SWITCH KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
130
130D0614
ref: 130
FR
BOLT-FLANGED,6X14
€ 0.50
11046
110461285
ref: 11046
BRACKET,REFLECTOR
€ 8.50
21007
210075022
ref: 21007
FR
ROTOR,LOCK,TANK CAP
€ 50.50
21007A
210075023
ref: 21007A
SD
ROTOR,LOCK,TANK CAP
€ 50.50
27004
270045429
ref: 27004
FR
SWITCH-ASSY
€ 178.00
27004A
270045430
ref: 27004A
SD
SWITCH-ASSY
€ 147.00
27005
270051164
ref: 27005
FR
SWITCH-ASSY-IGNITION
€ 117.50
27005A
270051165
ref: 27005A
SD
SWITCH-ASSY-IGNITION
€ 136.50
27008
270081034
ref: 27008
FR
KEY,BLANK
€ 13.00
27008A
270081035
ref: 27008A
FR
KEY,BLANK
€ 12.50
27008B
270081105
ref: 27008B
SD
KEY-LOCK,BLANK
€ 12.50
27010
270101247
ref: 27010
SWITCH,SIDE STAND
€ 51.00
27010A
270101301
ref: 27010A
SWITCH,BRAKE LAMP
€ 36.50
27010B
270101303
ref: 27010B
SWITCH,OIL LEVEL
€ 43.00
27016
270165029
ref: 27016
FR
LOCK ASSY,HELMET
€ 73.50
27016A
270165100
ref: 27016A
SD
LOCK-ASSY,HELMET
€ 73.50
27016B
270165192
ref: 27016B
FR
LOCK-ASSY,TOOL BOX
€ 50.00
27016C
270165193
ref: 27016C
SD
LOCK-ASSY,TOOL BOX
€ 50.00
28012
280121054
ref: 28012
REFLECTOR-REFLEX,RR
€ 15.00
92001
920011465
ref: 92001
SD
BOLT
€ 3.00
92009
920091359
ref: 92009
SCREW
€ 2.50
92009A
920091547
ref: 92009A
SCREW,5X18
€ 3.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92144
921441474
ref: 92144
SPRING,BRAKE LAMP SWI
€ 14.50
224
224C0614
ref: 224
SCREW-PAN-WP-CROS
€ 2.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
