FRAME

KDX125-B3 KDX125SR 1992 FRANCE SD

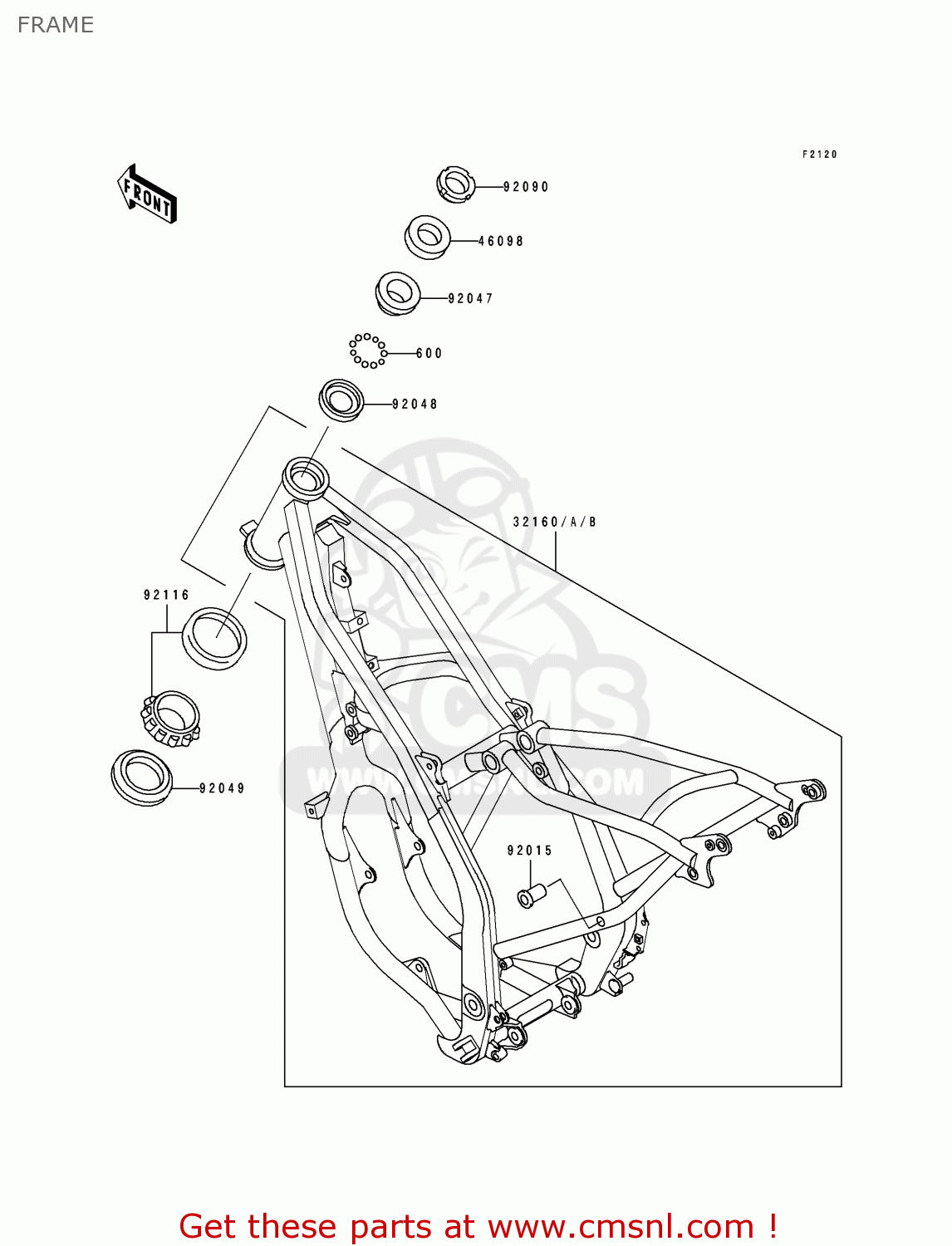

Frame diagram KDX125-B3 KDX125SR 1992 FRANCE SD

prices are in EUR

ref

part #

description

quantity

600

600A0600
ref: 600

BALL-STEEL,3/16

€ 0.50

32160

321601230CC
ref: 32160
FR

FRAME-COMP,L.GREEN

€ 879.50

32160A

321601230W1
ref: 32160A
FR

FRAME-COMP,BLUE NO.1

€ 783.50

32160B

321601232W1
ref: 32160B
SD

FRAME-COMP,BLUE NO.1

€ 737.50

46098

46098018
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151759
ref: 92015

NUT,POP,6MM

€ 3.00

92047

92047014
ref: 92047

RACE,STEERING STEM BE

€ 12.50

92048

92048009
ref: 92048

RACE,STRG STM

€ 14.00

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92090

92090022
ref: 92090

NUT,STEERING LOCK,25M

€ 18.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00
