FRONT CALIPER
KDX125-B3 KDX125SR 1992 FRANCE SD

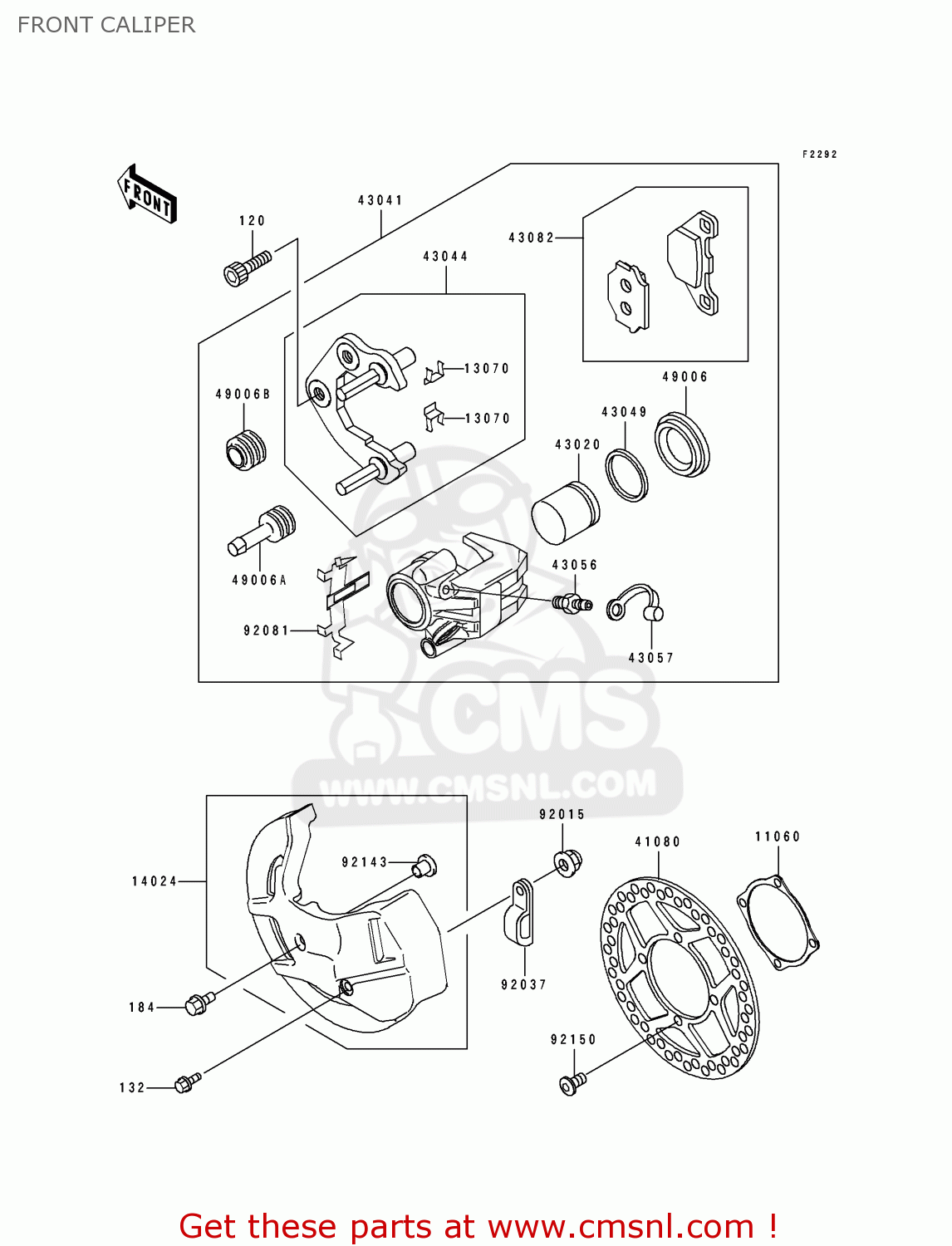

Front caliper diagram KDX125-B3 KDX125SR 1992 FRANCE SD
FRONT CALIPER KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
120
120P0835
ref: 120
BOLT-SOCKET,8X35
€ 2.00
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
184
184B0812
ref: 184
BOLT-UPSET-WP-SMALL
€ 0.50
11060
110601163
ref: 11060
GASKET,DISC PLATE (NAS)
€ 7.50
13070
130701183
ref: 13070
GUIDE,PAD STOPPER
€ 3.00
14024
1402418616F
ref: 14024
COVER,DISC,P.WHITE
€ 54.00
41080
410801266
ref: 41080
DISC,FR
€ 151.50
43020
430201091
ref: 43020
PISTON-COMP-BRAKE
€ 41.50
43041
430411446
ref: 43041
CALIPER-ASSY,FR
€ 325.00
43044
430441097
ref: 43044
HOLDER-COMP-CALIPER,F
€ 99.50
43049
430491016
ref: 43049
PACKING,CALIPER (NAS)
€ 7.50
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821079
ref: 43082
PAD-ASSY-BRAKE (NAS)
€ 42.50
49006
490061053
ref: 49006
BOOT,PISTON SEAL
€ 14.00
49006A
490061054
ref: 49006A
BOOT,CALIPER
€ 8.00
49006B
490061055
ref: 49006B
BOOT,CALIPER
€ 4.50
92015
920151153
ref: 92015
NUT,CAP,6M/M
€ 1.00
92037
920371608
ref: 92037
CLAMP
€ 5.50
92081
920811341
ref: 92081
SPRING
€ 10.00
92143
921431196
ref: 92143
COLLAR
€ 3.00
92150
921501423
ref: 92150
BOLT,DISC PLATE,8X15
€ 3.00
