ENGINE COVER
KDX125-B3 KDX125SR 1992 FRANCE SD

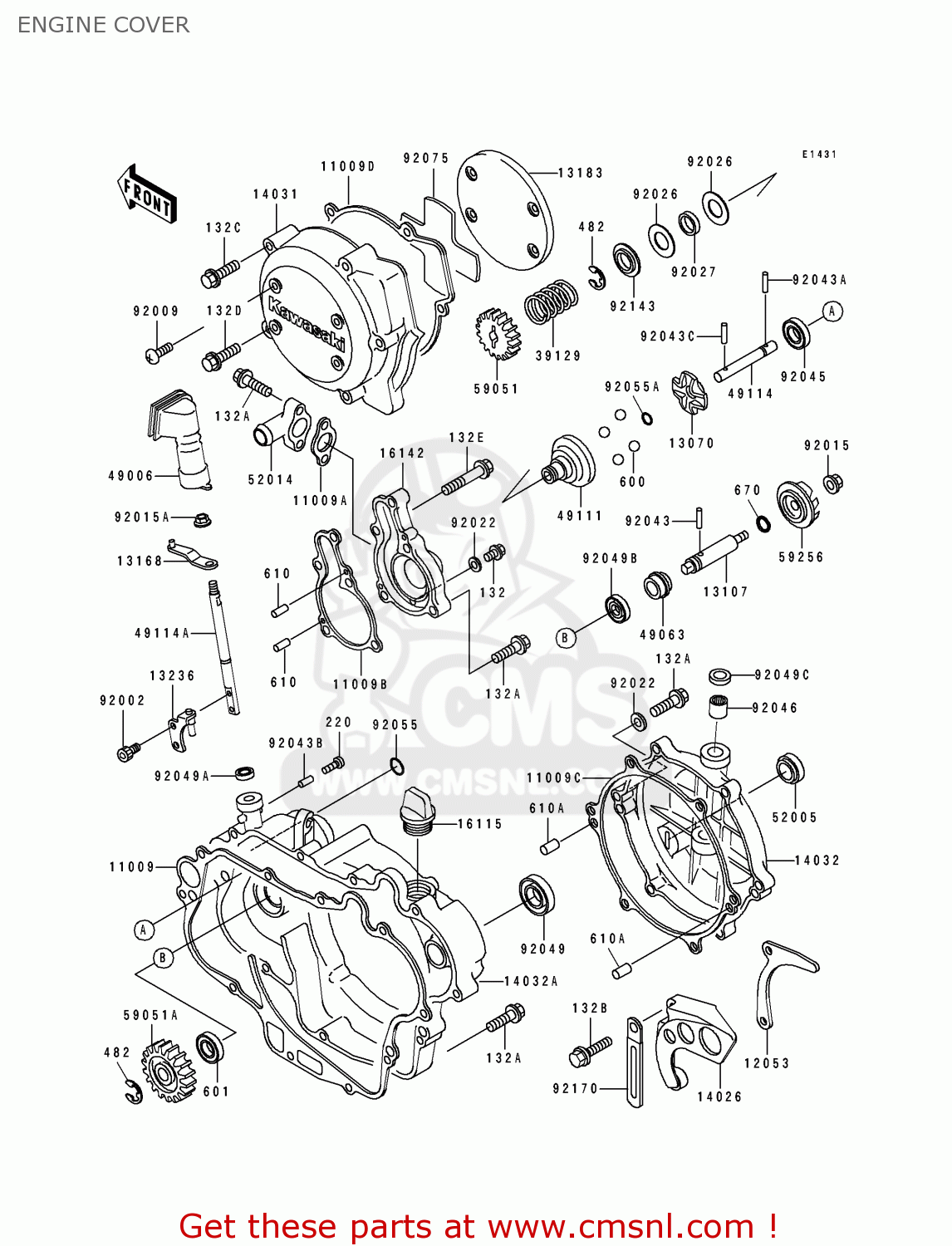

Engine cover diagram KDX125-B3 KDX125SR 1992 FRANCE SD
ENGINE COVER KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
11009
110091841
ref: 11009
GASKET,CLUTCH (NAS)
€ 16.00
11009A
110091935
ref: 11009A
GASKET,ELBOW (NAS)
€ 3.00
11009B
110091936
ref: 11009B
GASKET,PUMP COVER (NAS)
€ 5.00
11009C
110091939
ref: 11009C
GASKET,RELESASE COVER (NAS)
€ 8.50
11009D
110091942
ref: 11009D
GASKET,GENERATOR COVE (NAS)
€ 9.00
12053
120531276
ref: 12053
GUIDE-CHAIN
€ 15.50
13070
130701206
ref: 13070
GUIDE
€ 41.00
13107
131071270
ref: 13107
SHAFT,WATER PUMP
€ 24.50
13168
131681371
ref: 13168
LEVER,GOVERNOR
€ 6.50
13183
131831059
ref: 13183
PLATE,GENERATOR COVER
€ 17.50
13236
132361190
ref: 13236
LEVER-COMP,GOVERNOR S
€ 7.50
14026
140261159
ref: 14026
COVER-CHAIN
€ 17.00
14031
140311246
ref: 14031
COVER-GENERATOR
€ 64.50
14032
140321273
ref: 14032
COVER-CLUTCH
€ 75.50
14032A
140321285
ref: 14032A
COVER-CLUTCH
€ 112.00
16115
16115018
ref: 16115
PLUG,OIL FILLER
€ 7.00
16142
161421106
ref: 16142
COVER-PUMP
€ 120.00
39129
391291003
ref: 39129
SPRING-GOVERNOR,GOVER
€ 3.00
49006
490061228
ref: 49006
BOOT,GOVERNOR
€ 7.50
49063
490631002
ref: 49063
SEAL-MECHANICAL,WATER
€ 17.00
49111
491111054
ref: 49111
HOLDER-GOVERNOR WEIGH
€ 41.00
49114
491141058
ref: 49114
SHAFT-GOVERNOR
€ 19.50
49114A
491141070
ref: 49114A
SHAFT-GOVERNOR
€ 24.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141072
ref: 52014
ELBOW
€ 20.00
59051
590511225
ref: 59051
GEAR-SPUR,GOVERNOR,21
€ 23.50
59051A
590511234
ref: 59051A
GEAR-SPUR,PUMP,25T
€ 23.00
59256
592561063
ref: 59256
IMPELLER
€ 23.00
92002
920021403
ref: 92002
BOLT,SOCKET,4X8
€ 2.00
92009
920091154
ref: 92009
SCREW,5X12
€ 2.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151572
ref: 92015A
NUT,6MM
€ 2.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92026
920261238
ref: 92026
SPACER,15X28X1
€ 5.50
92027
920271839
ref: 92027
COLLAR,15.2X17X4
€ 8.50
92043
920431129
ref: 92043
PIN,3.5X23.8
€ 3.00
92043A
920431256
ref: 92043A
PIN,3X12.8
€ 3.00
92043B
920431293
ref: 92043B
PIN,2X9.8
€ 4.00
92043C
920431319
ref: 92043C
PIN,3X19.8
€ 2.50
92045
920451212
ref: 92045
BEARING-BALL
€ 11.50
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132G0630
ref: 132B
BOLT-FLANGED-SMALL
€ 1.50
132C
132G0640
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132G0645
ref: 132D
BOLT-FLANGED-SMALL
€ 2.50
132E
132G0665
ref: 132E
BOLT-FLANGED-SMALL
€ 2.50
220
220B0306
ref: 220
SCREW-PAN-CROS
€ 0.50
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
600
600A1200
ref: 600
BALL-STEEL,3/8
€ 0.50
601
601B6201U
ref: 601
BEARING-BALL,#6201LUC
€ 18.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
610A
610A0612
ref: 610A
ROLLER,6X12
€ 3.00
670
670B1506
ref: 670
O RING,6MM
€ 1.00
92046
920461176
ref: 92046
BEARING-NEEDLE
€ 15.50
92049
92049002
ref: 92049
OIL SEAL SB16244
€ 6.00
92049A
920491207
ref: 92049A
SEAL-OIL,SDO8144
€ 6.50
92049B
920491259
ref: 92049B
SEAL-OIL,SC12 28.555
€ 5.50
92049C
920491262
ref: 92049C
SEAL-OIL
€ 4.00
92055
920551258
ref: 92055
RING-O,ID=16.8
€ 3.00
92055A
920551343
ref: 92055A
RING-O,5.5X1.5
€ 3.00
92075
920751895
ref: 92075
DAMPER,GENERATOR COVE
€ 31.00
92143
921431310
ref: 92143
COLLAR
€ 18.00
92170
921701113
ref: 92170
CLAMP
€ 2.50
