GENERATOR
KDX125-B3 KDX125SR 1992 FRANCE SD

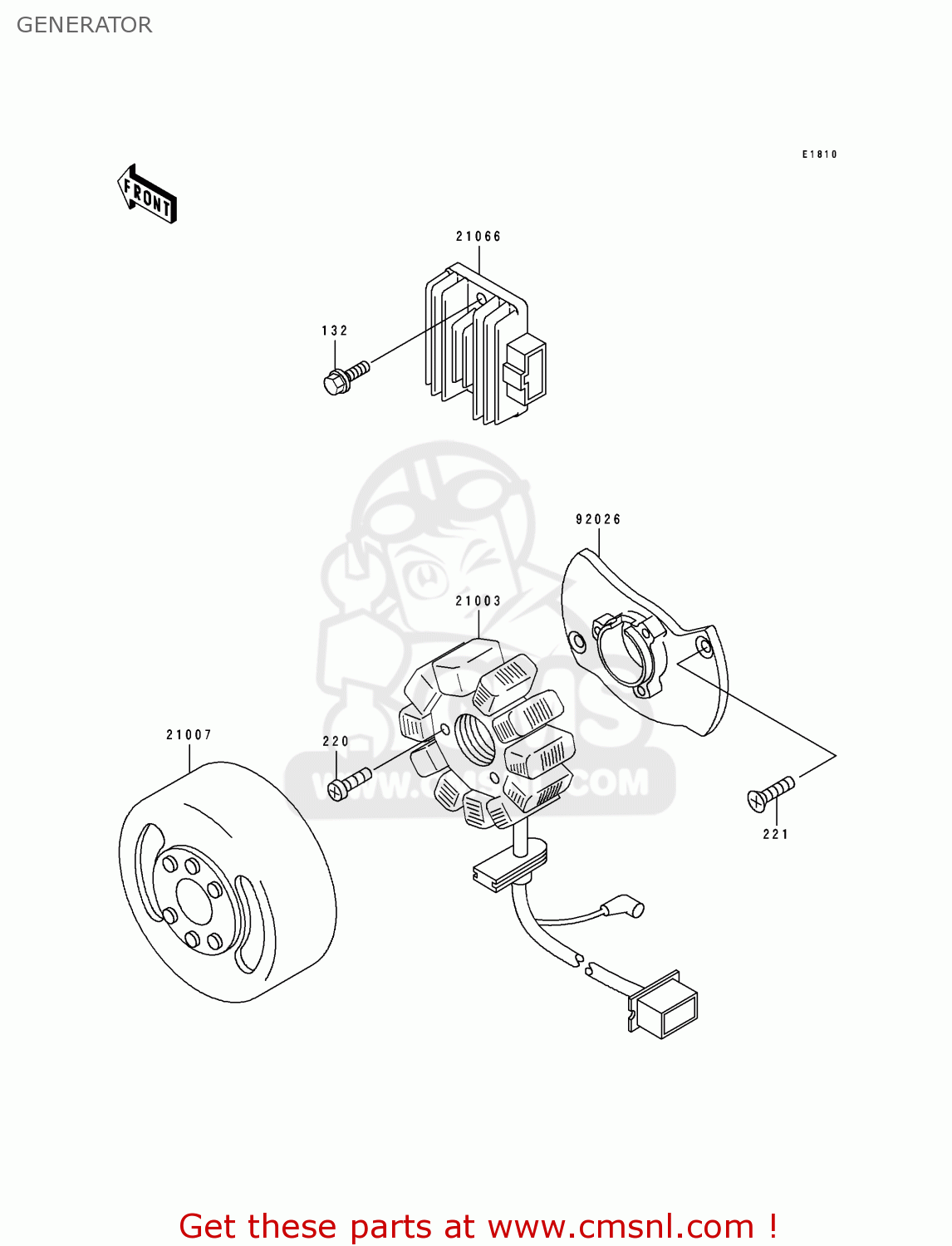

Generator diagram KDX125-B3 KDX125SR 1992 FRANCE SD
GENERATOR KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
132
132G0614
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
220
220B0530
ref: 220
SCREW-PAN-CROS
€ 2.00
221
221B0616
ref: 221
SCREW-CNTSNK HD,6X16
€ 0.50
21003
210031224
ref: 21003
STATOR
€ 442.00
21007
210071220
ref: 21007
ROTOR,MAGNETO
€ 177.00
21066
210661039
ref: 21066
REGULATOR-VOLTAGE
€ 167.50
92026
920261381
ref: 92026
SPACER
€ 41.50
