METER
KDX125-B3 KDX125SR 1992 FRANCE SD

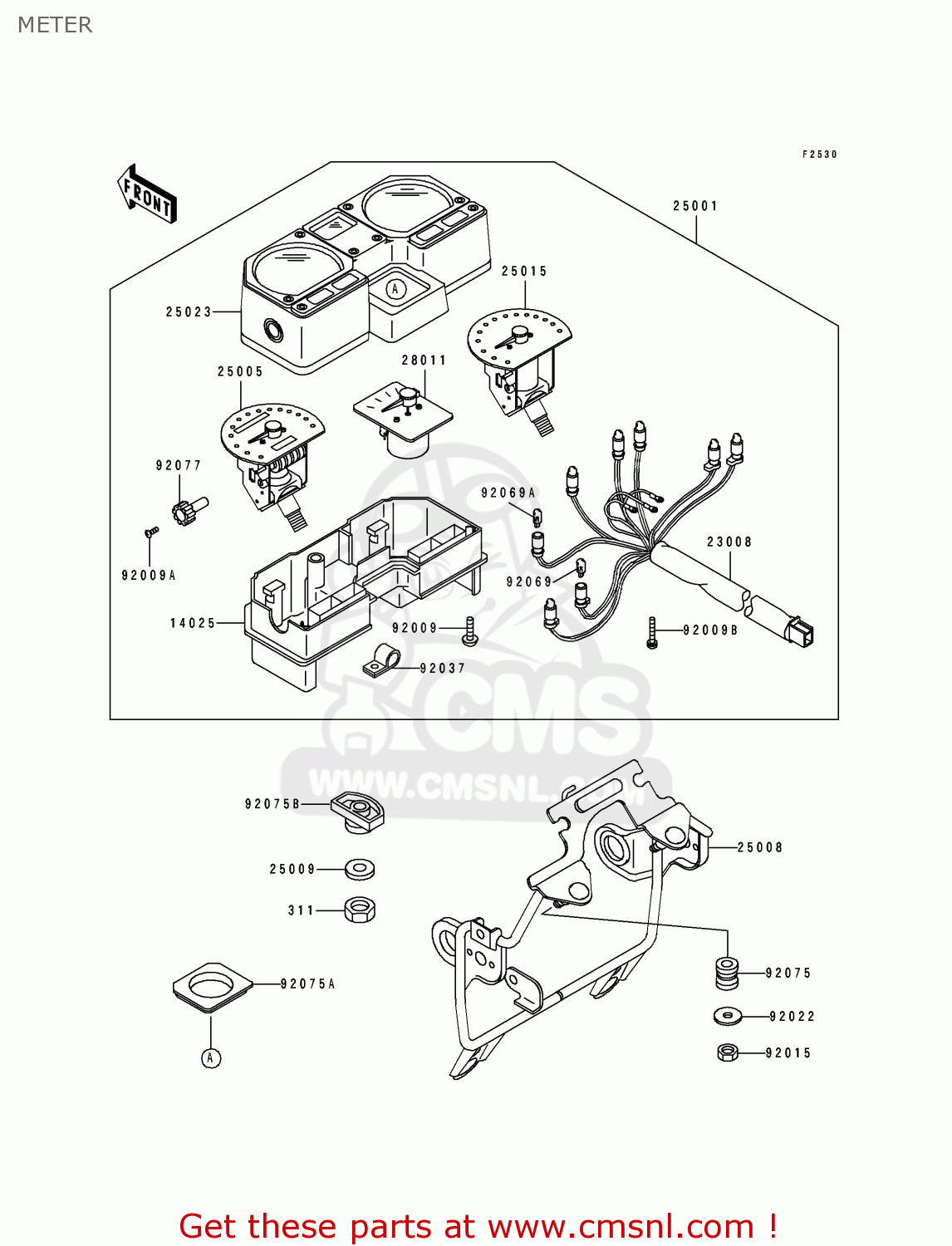

Meter diagram KDX125-B3 KDX125SR 1992 FRANCE SD
METER KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
311
311C0500
ref: 311
NUT-HEX
€ 0.50
14025
140251817
ref: 14025
COVER,METER CASE,LWR
€ 96.00
23008
230081496
ref: 23008
SOCKET-ASSY,METER
€ 108.00
25001
250011881
ref: 25001
METER-ASSY,KPH
€ 1,088.00
25005
250051513
ref: 25005
SPEEDOMETER,KPH
€ 176.00
25008
250081189
ref: 25008
BRACKET-METER
€ 82.00
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
€ 2.50
25015
250151313
ref: 25015
TACHOMETER,X1000R/MIN
€ 155.50
25023
250231143
ref: 25023
COVER-METER CASE,UPP
€ 64.50
28011
280111125
ref: 28011
METER,TEMP
€ 69.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091172
ref: 92009A
SCREW,2X6,BLACK
€ 2.00
92009B
920091293
ref: 92009B
SCREW,3X22
€ 2.50
92015
920151391
ref: 92015
NUT,6MM
€ 2.00
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92037
920371479
ref: 92037
CLAMP,METER,SOCKET AS
€ 6.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
€ 2.50
92075
92075024
ref: 92075
DAMPER
€ 2.50
92075A
920751578
ref: 92075A
DAMPER,IGNITION SWITC
€ 4.50
92075B
920751581
ref: 92075B
DAMPER,METER BRACKET
€ 4.00
92077
920771054
ref: 92077
KNOB,METER
€ 6.00
