FENDER
KDX125-B3 KDX125SR 1992 FRANCE SD

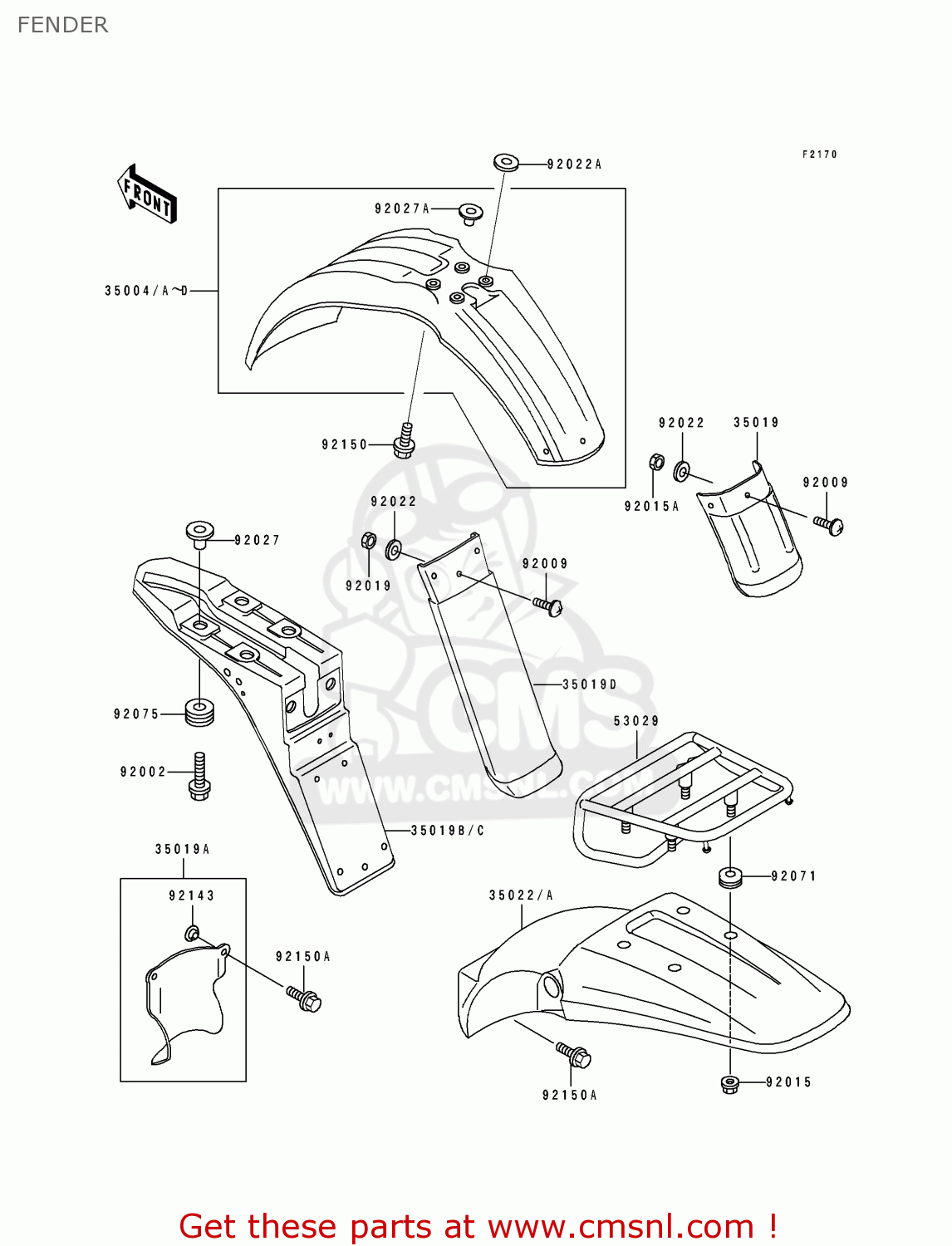

Fender diagram KDX125-B3 KDX125SR 1992 FRANCE SD
FENDER KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
35004
350041262BV
ref: 35004
FR
FENDER-FRONT,BLUE 24
€ 52.50
35004A
3500412626W
ref: 35004A
FR
FENDER-FRONT,L.GREEN
€ 52.50
35004B
350041279BV
ref: 35004B
SD
FENDER-FRONT,BLUE 24
€ 49.00
35019
350191002
ref: 35019
SD
FLAP,FENDER,FR
€ 11.50
35019A
350191264
ref: 35019A
FLAP,RR FENDER,FR
€ 13.00
35019B
350191274
ref: 35019B
FR
FLAP,RR FENDER,RR
€ 51.00
35019C
350191275
ref: 35019C
SD
FLAP,RR FENDER,RR
€ 47.50
35019D
350191279
ref: 35019D
SD
FLAP,RR FENDER,RR,LWR
€ 27.50
35022
350221266BV
ref: 35022
FENDER-COMP-REAR,BLUE
€ 107.00
35022A
3502212666W
ref: 35022A
FR
FENDER-COMP-REAR,L.GR
€ 101.50
53029
530291134
ref: 53029
CARRIER
€ 91.00
92002
920021135
ref: 92002
BOLT,6X25
€ 2.50
92009
920091287
ref: 92009
SD
SCREW,6X14
€ 1.50
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92015A
920151153
ref: 92015A
SD
NUT,CAP,6M/M
€ 1.00
92019
92019008
ref: 92019
SD
NUT-LOCK,6MM
€ 3.00
92022
92022024
ref: 92022
SD
WASHER,7X16X1.2
€ 2.50
92022A
92022125
ref: 92022A
SD
WASHER,6.5X20X1.6
€ 1.00
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
€ 3.50
92027A
920271936
ref: 92027A
COLLAR,FRONT FENDER
€ 4.00
92071
920711210
ref: 92071
GROMMET
€ 2.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92143
921431196
ref: 92143
COLLAR
€ 3.00
92150
921501339
ref: 92150
BOLT,6X20
€ 2.50
92150A
921501340
ref: 92150A
BOLT,6X14
€ 3.00
