SWING ARM
KDX125-B3 KDX125SR 1992 FRANCE SD

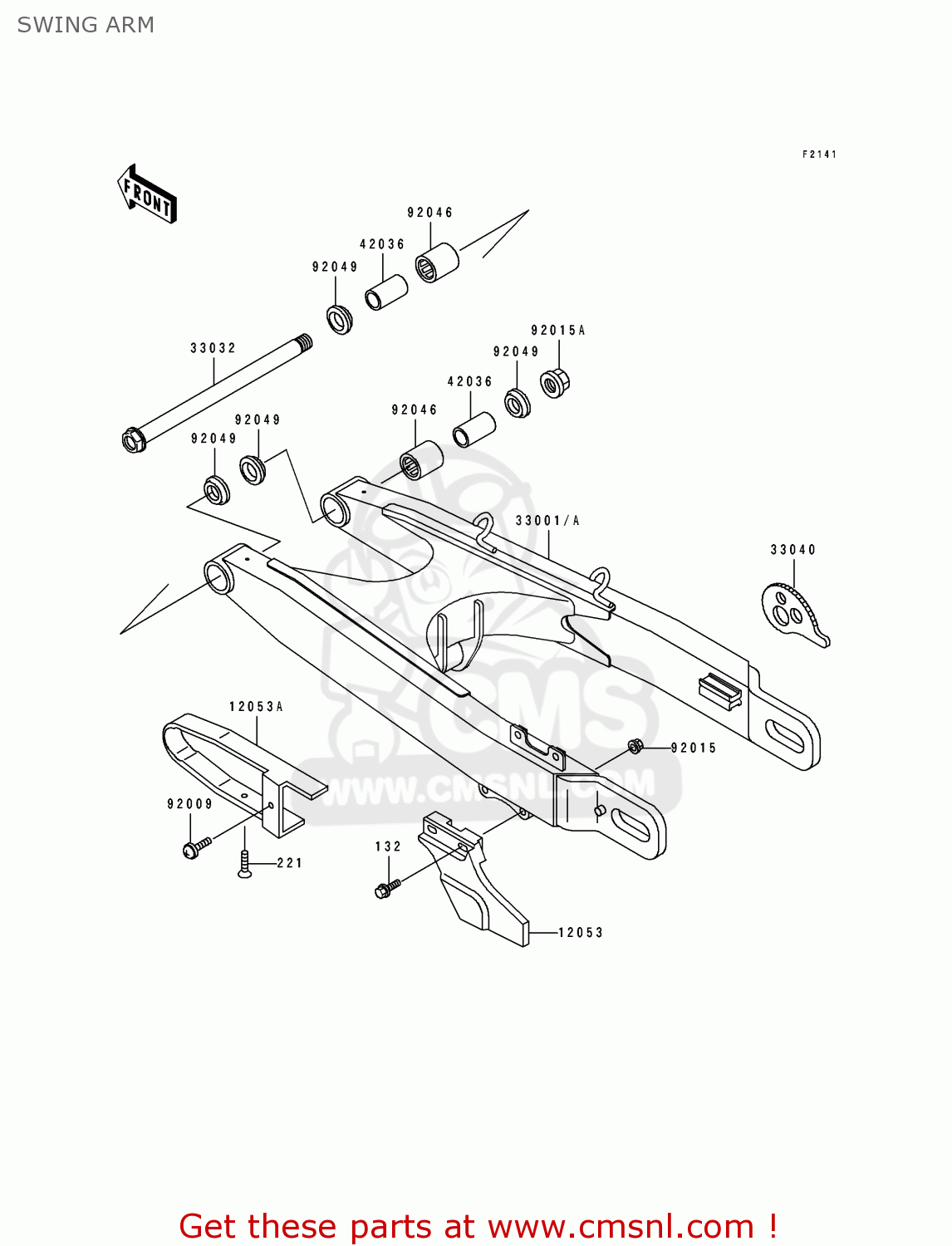

Swing arm diagram KDX125-B3 KDX125SR 1992 FRANCE SD
SWING ARM KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
132
132G0645
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
€ 2.50
12053
120531104
ref: 12053
GUIDE-CHAIN,RR
€ 46.00
12053A
120531293
ref: 12053A
GUIDE-CHAIN,DRIVE,FR
€ 37.50
33001
330011387CE
ref: 33001
FR
ARM-COMP-SWING,SILVER
€ 392.00
33001A
330011388CE
ref: 33001A
SD
ARM-COMP-SWING,SILVER
€ 366.00
33032
330321156
ref: 33032
SHAFT-SWING ARM
€ 29.00
33040
330401113
ref: 33040
ADJUSTER-CHAIN
€ 22.00
42036
420361263
ref: 42036
SLEEVE,SWING ARM,L=46
€ 18.00
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92015
920151367
ref: 92015
SD
NUT,FLANGED,6MM
€ 0.50
92015A
920151407
ref: 92015A
NUT,14MM
€ 6.50
92046
920461110
ref: 92046
BEARING-NEEDLE,BM2027
€ 22.50
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
€ 6.50
