HANDLEBAR
KDX125-B3 KDX125SR 1992 FRANCE SD

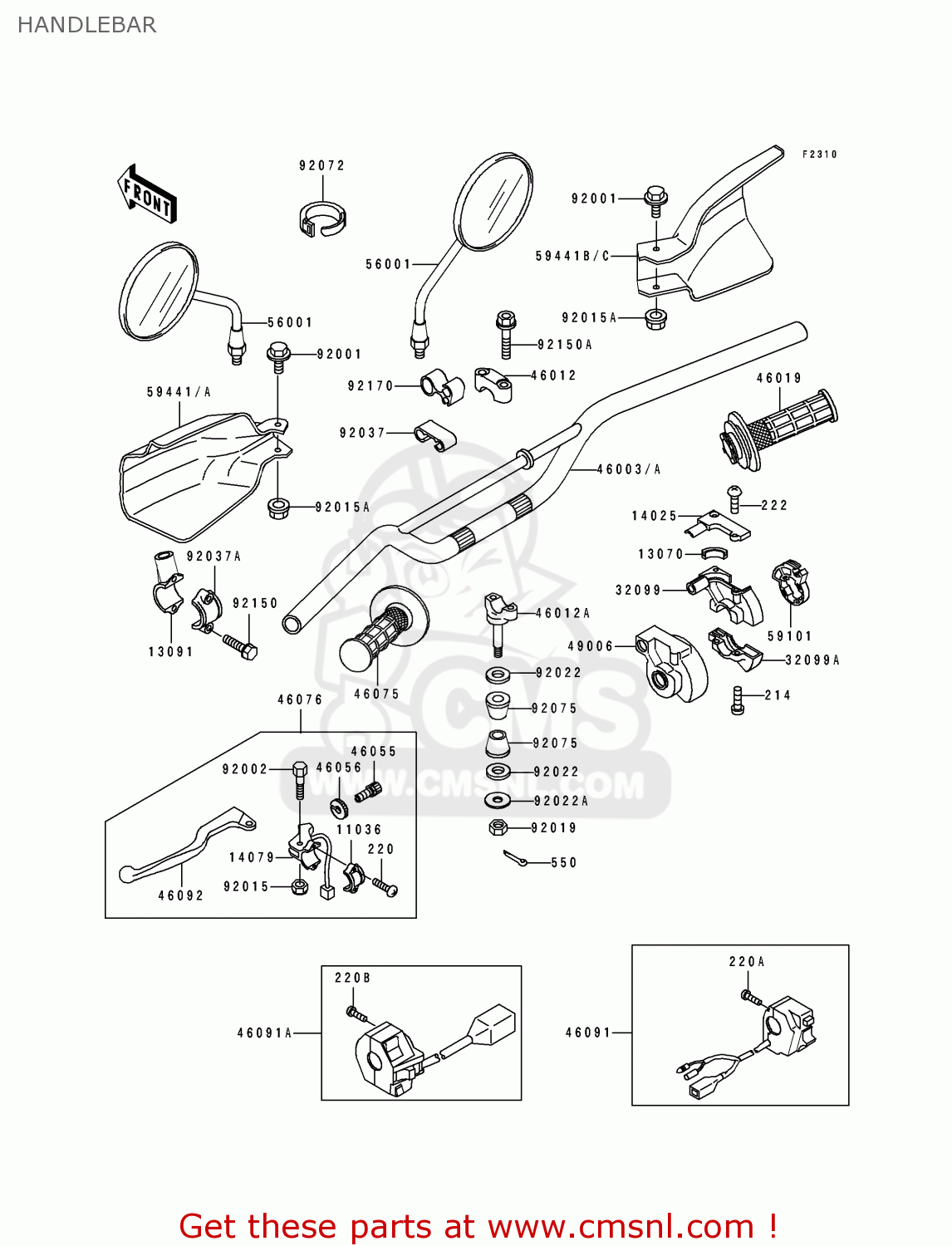

Handlebar diagram KDX125-B3 KDX125SR 1992 FRANCE SD
HANDLEBAR KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701074
ref: 13070
GUIDE,THROTTLE
€ 4.00
13091
130911718
ref: 13091
HOLDER,MIRROR
€ 30.50
14025
140251646
ref: 14025
COVER,THROTTLE CASE U
€ 6.50
14079
140791069
ref: 14079
HOLDER-ASSY,CLUTCH
€ 36.50
32099
320991036
ref: 32099
CASE,THROTTLE UPP
€ 25.00
32099A
320991044
ref: 32099A
CASE,THROTTLE LWR
€ 13.50
46003
460031338CE
ref: 46003
FR
HANDLE,SILVER NO.25
€ 72.00
46003A
460031338W1
ref: 46003A
HANDLE,BLUE NO.1
€ 70.50
46012
460121191
ref: 46012
HOLDER-HANDLE,UPP
€ 21.00
46012A
460121211
ref: 46012A
HOLDER-HANDLE,LWR
€ 31.00
46019
460191054
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.50
46055
46055009
ref: 46055
SCREW,CABLE ASJUST
€ 13.00
46056
46056006
ref: 46056
NUT,CABLE ADJUST NUT
€ 6.00
46075
460751024
ref: 46075
GRIP,LH
€ 13.50
46076
460761167
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 57.50
46091
460911550
ref: 46091
HOUSING-ASSY-CONTROL,
€ 82.50
46091A
460911551
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 108.50
46092
460921159
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.00
49006
490061097
ref: 49006
BOOT,THROTTLE CASE
€ 12.00
56001
560011286
ref: 56001
MIRROR-ASSY
€ 40.00
59101
591011110
ref: 59101
REEL,THROTTLE
€ 7.50
59441
594411089BV
ref: 59441
COVER-HANDLE,LH,BLUE
€ 13.00
59441A
5944110896W
ref: 59441A
FR
COVER-HANDLE,LH,L.GRE
€ 16.50
59441B
594411090BV
ref: 59441B
COVER-HANDLE,RH,BLUE
€ 13.50
59441C
5944110906W
ref: 59441C
FR
COVER-HANDLE,RH,L.GRE
€ 14.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92002
920021880
ref: 92002
BOLT,LEVER SET
€ 14.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
€ 2.00
92015A
920151603
ref: 92015A
NUT
€ 3.00
92019
92019021
ref: 92019
NUT,LOCK,10M/M
€ 2.00
92022
92022105
ref: 92022
WASHER,12.5X30X0.8
€ 3.00
92022A
920221088
ref: 92022A
WASHER,10.2X28X2
€ 3.00
92037
920371529
ref: 92037
CLAMP,BRAKE HOSE
€ 7.00
92037A
920371621
ref: 92037A
CLAMP,LEVER HOLDER
€ 18.50
92072
920721293
ref: 92072
BAND
€ 6.50
92075
920751776
ref: 92075
DAMPER
€ 5.00
214
214C0518
ref: 214
SCREW-PAN+-
€ 2.00
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
220A
220C0525
ref: 220A
SCREW-PAN-CROS
€ 2.00
220B
220C0535
ref: 220B
SCREW-PAN-CROS
€ 1.50
222
222E0412
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
550
550D2020
ref: 550
PIN-COTTER,2.0X20
€ 0.50
92150
921501389
ref: 92150
BOLT,5X20
€ 3.00
92150A
921501455
ref: 92150A
BOLT,FLANGED,8X30
€ 4.50
92170
921701255
ref: 92170
CLAMP,BRAKE HOSE
€ 4.50
