FUEL TANK
KDX125-B3 KDX125SR 1992 FRANCE SD

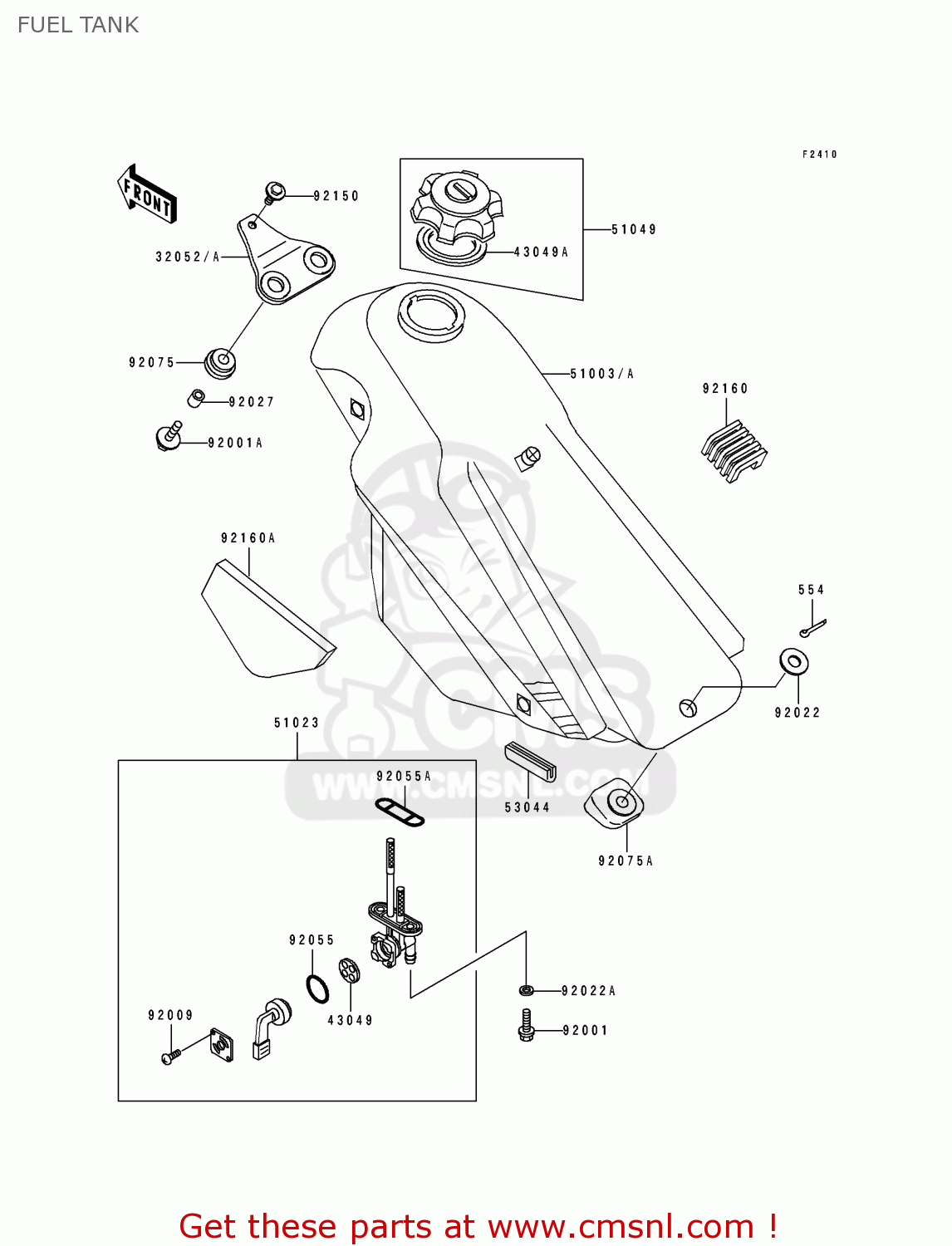

Fuel tank diagram KDX125-B3 KDX125SR 1992 FRANCE SD
FUEL TANK KDX125-B3 KDX125SR 1992 FRANCE SD
×
prices are in EUR
ref
part #
description
quantity
554
554A1000
ref: 554
PIN-SNAP,10MM
€ 1.00
32052
320521301CC
ref: 32052
FR
BRACKET-TANK,FR,L.GRE
€ 16.00
32052A
320521301W1
ref: 32052A
BRACKET-TANK,FR,BLUE
€ 14.50
43049
430491017
ref: 43049
PACKING,FUEL TAP LEVE (NAS)
€ 5.00
43049A
430491072
ref: 43049A
PACKING,FUEL TANK CAP (NAS)
€ 5.50
51003
5100354197F
ref: 51003
FR
TANK-COMP-FUEL,L.GREE
€ 622.50
51003A
510035422DB
ref: 51003A
TANK-COMP-FUEL,BLUE 2
€ 622.50
51023
510231170
ref: 51023
TAP-ASSY,FUEL
€ 71.00
51049
510491095
ref: 51049
CAP-TANK,FUEL
€ 82.00
53044
530441200
ref: 53044
TRIM-HEADLAMP COVER
€ 5.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92001A
920011773
ref: 92001A
BOLT,6X20
€ 2.50
92009
920091123
ref: 92009
SCREW,3X3
€ 1.00
92022
920221137
ref: 92022
WASHER,10.5X24X1.6
€ 2.50
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
€ 2.50
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
€ 7.00
92055
920551111
ref: 92055
RING-O,FUEL TAP LEVER
€ 3.50
92055A
920551112
ref: 92055A
RING-/,FUEL TAP PACKI
€ 3.00
92075
92075112
ref: 92075
DAMPER RUBBER
€ 2.50
92075A
920751831
ref: 92075A
DAMPER
€ 6.50
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92160
921601171
ref: 92160
DAMPER,FUEL TANK
€ 6.50
92160A
921601258
ref: 92160A
DAMPER,FUEL TANK
€ 8.00
