SUSPENSION/SHOCK ABSORBER

EX250H5 ZZR250 1994 EUROPE NL AR GR IT

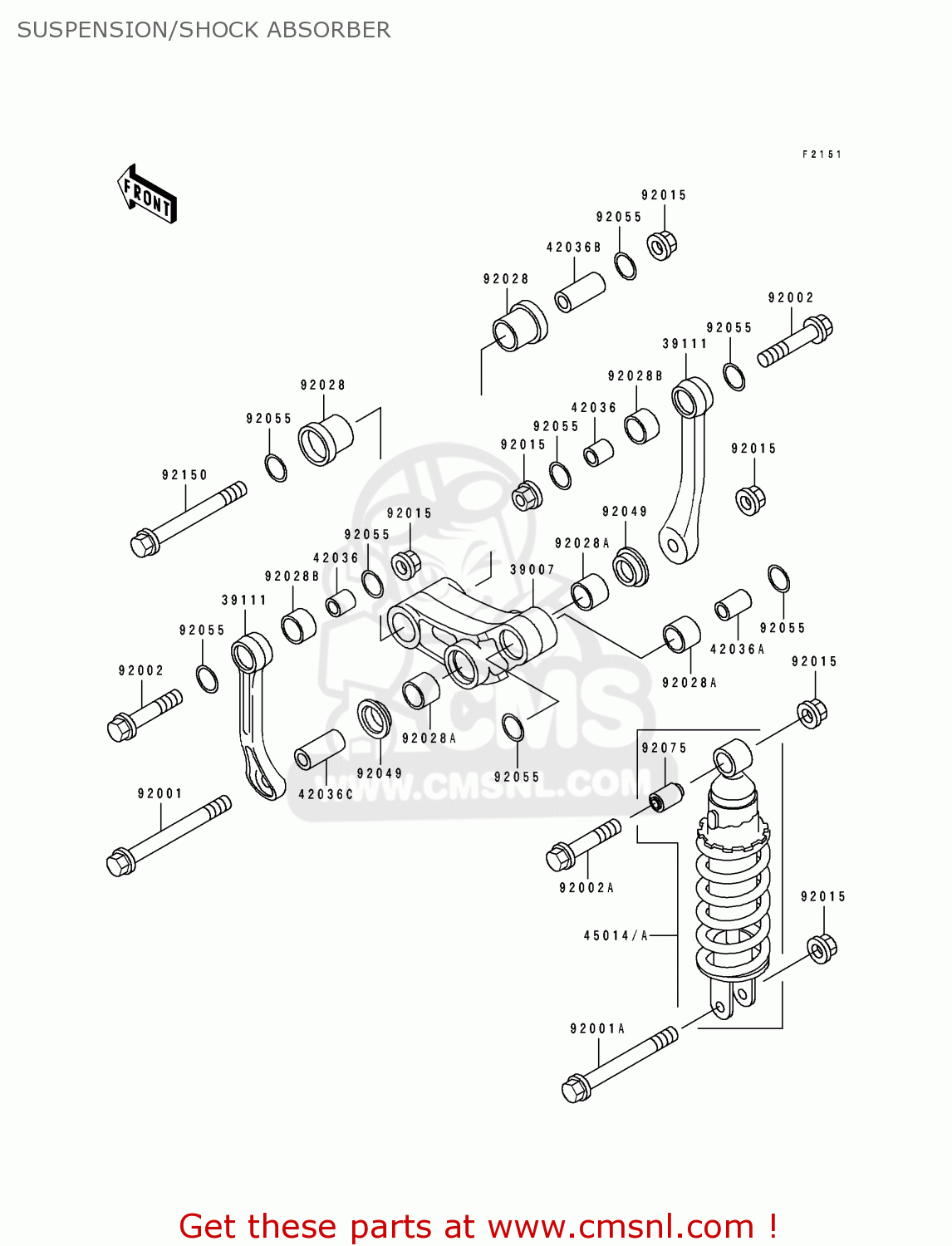

Suspension/shock absorber diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT

SUSPENSION/SHOCK ABSORBER EX250H5 ZZR250 1994 EUROPE NL AR GR IT
SUSPENSION/SHOCK ABSORBER EX250H5 ZZR250 1994 EUROPE NL AR GR IT
SUSPENSION/SHOCK ABSORBER EX250H5 ZZR250 1994 EUROPE NL AR GR IT
prices are in EUR
ref
part #
description
quantity
39007
390071093
ref: 39007
ARM-SUSP,UNI TRAK
390071093
€ 140.00
39111
391111106
ref: 39111
ROD-TIE,UNI TRAK
€ 66.50
42036
420361076
ref: 42036
SLEEVE,12.1X20X22
420361076
€ 12.00
42036A
420361077
ref: 42036A
SLEEVE,ARM,RR
420361077
€ 11.50
42036B
420361078
ref: 42036B
SLEEVE,ARM,FR
420361078
€ 17.00
42036C
420361079
ref: 42036C
SLEEVE,12.1X20X70
420361079
€ 19.00
45014A
450141581
ref: 45014A
SHOCKABSORBER
450141581
€ 523.50
92001
920011937
ref: 92001
BOLT,12X90
920011937
€ 10.50
92001A
920011938
ref: 92001A
BOLT,12X55
920011938
€ 8.50
92002
920021065
ref: 92002
BOLT,12X45
920021065
€ 7.50
92002A
920021463
ref: 92002A
BOLT,FLANGED,12X85
920021463
€ 12.50
92015
920151375
ref: 92015
NUT,12MM
€ 4.50
92028
920281597
ref: 92028
BUSHING
920281597
€ 6.50
92028A
920281598
ref: 92028A
BUSHING
920281598
€ 5.00
92028B
920281599
ref: 92028B
BUSHING
920281599
€ 18.00
92049
920491109
ref: 92049
SEAL-OIL,ARM,CNT
920491109
€ 6.50
92055
920551215
ref: 92055
RING-O,19.8X2.2
920551215
€ 2.50
92075
920751654
ref: 92075
DAMPER,SHOCKABSORBER
920751654
€ 20.50
92150
921501116
ref: 92150
BOLT,FLANGED,12X165
€ 14.00
