REAR MASTER CYLINDER

EX250H5 ZZR250 1994 EUROPE NL AR GR IT

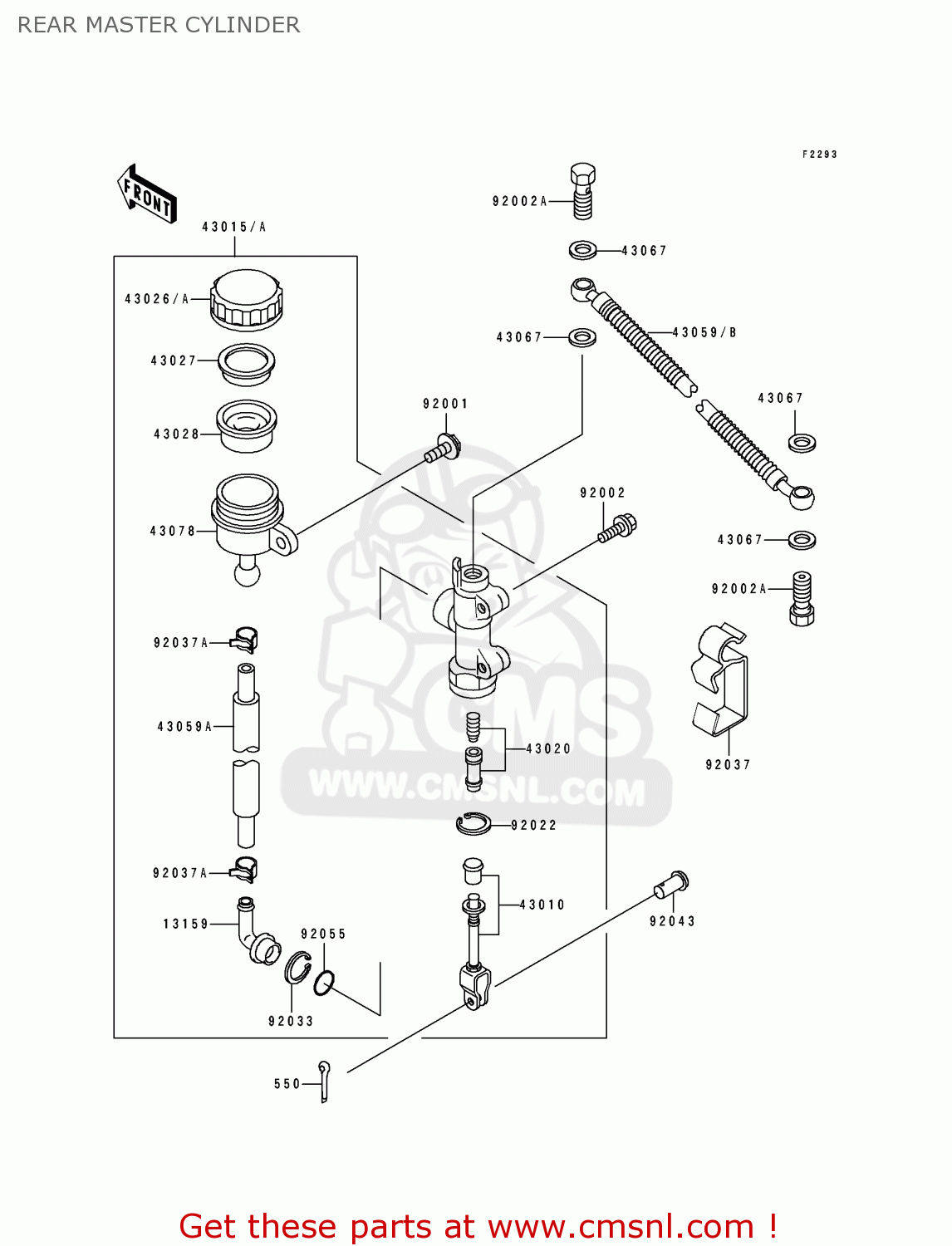

Rear master cylinder diagram EX250H5 ZZR250 1994 EUROPE NL AR GR IT

REAR MASTER CYLINDER EX250H5 ZZR250 1994 EUROPE NL AR GR IT

REAR MASTER CYLINDER EX250H5 ZZR250 1994 EUROPE NL AR GR IT

prices are in EUR

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

13159

131591056
ref: 13159

CONNECTOR

€ 9.50

43010

430101055
ref: 43010

ROD-ASSY-BRAKE

€ 44.00

43015A

430151497
ref: 43015A

CYLINDER-ASSY-MASTER,

€ 273.50

43020

430201073
ref: 43020

PISTON-COMP-BRAKE

€ 47.50

43026A

430261077
ref: 43026A

CAP-BRAKE

€ 23.00

43027

430271053
ref: 43027

PLATE-DIAPHRAGM

€ 4.00

43028

430281065
ref: 43028

DIAPHRAGM

€ 13.00

43059A

430591651
ref: 43059A

HOSE-BRAKE,RR MASTER

€ 24.50

43059B

430591805
ref: 43059B

HOSE-BRAKE,RR

€ 85.50

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

43078

430781080
ref: 43078

RESERVOIR

€ 19.00

92001

920011860
ref: 92001

BOLT,W/P,6X16

€ 2.50

92002

920021485
ref: 92002

BOLT,FLANGED,8X22

€ 2.50

92002A

920021888
ref: 92002A

BOLT,OIL,L=23

€ 3.50

92022

920221601
ref: 92022

WASHER,CIRCRIP

€ 5.00

92033

920331186
ref: 92033

RING-SNAP,20.5MM

€ 3.00

92037

920371498
ref: 92037

CLAMP,RR BRAKE HOSE

€ 5.00

92037A

920371710
ref: 92037A

CLAMP

€ 6.50

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92055

920551251
ref: 92055

RING-O,MASTER CYLINDE

€ 2.50
